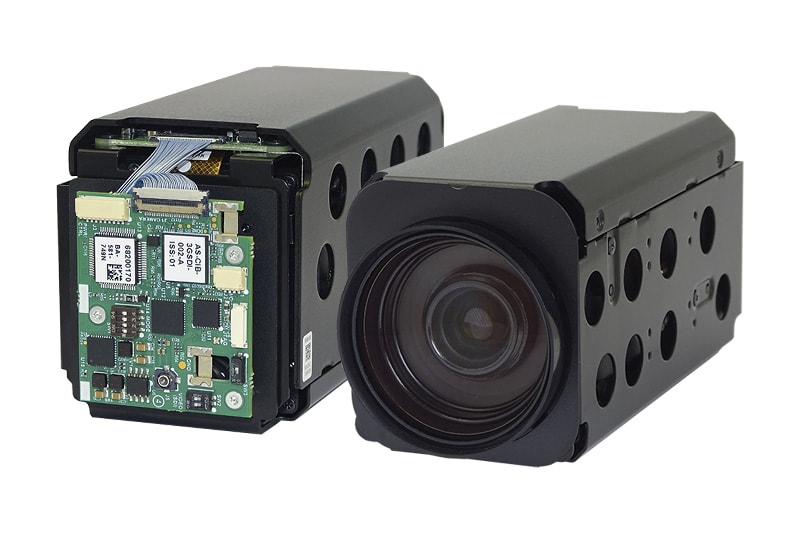

Product Photo of the HD-SDI AF-Zoom Block Camera with Tamron MP2030M-GS global shutter sensor

Click image to enlarge

Harrier 30x AF-Zoom HD-SDI Camera (Tamron MP2030M-GS)

Part Number: AS-CIB-HDSDI-002-2030-A

  • Autofocus-zoom camera with global shutter.
  • Full HD 1920 x 1080 high resolution camera.
  • Video formats (HD): 1080p/30/25, 720p/60/50.
  • 30x optical zoom.
  • HD-VLC™ output mode for long cable length applications.
  • Horizontal viewing angle: 60° – 2.5°.
  • Dimensions (W x H x D): 55 x 62.3 x 125mm.
  • VISCA camera control over RS-232/RS-485/TTL.
  • Simultaneous analog video output (PAL/NTSC) in 720p50/60 modes.
Enquire About This Product
  • Description

  • Product Specs

  • Downloads

  • Ordering Info

Description

Products Specs

Downloads

Ordering Info

The Harrier 30x AF-Zoom HD-SDI Camera (Tamron MP2030M-GS) offers 30x optical zoom and 16x digital zoom with full HD image output at 1920 x 1080p (30 fps). With real-time 3G-SDI video output over a 75 Ohm (H.FL) micro-coax cable, the camera can also provide HD-VLC™ compressed video for long cable length applications and (when in SD modes) simultaneous analog output with square pixels.

The Tamron MP2030M-GS is a global shutter CMOS image sensor; this allows capture of moving objects without the distortion that can occur with rolling shutters. Benefiting from Tamron’s high quality optical design and low reflection coating technologies, the camera offers sophisticated features such as Wide Dynamic Range mode, 3D noise reduction, keystone correction, motion detection and many others.

On power-up, the camera video mode may be selected by DIP switch settings on the board. Camera video modes, along with other functions, may also be controlled by VISCA serial communications over RS-485, RS-232 or TTL.

1080p50 & 1080p60 support on request for volume OEMs.
Active Silicon can also offer camera solutions with USB/HDMI, HDMI only, or USB only output.
For more information contact our team.

Camera Specification

Image sensor

1/1.8-type CMOS (global shutter)

Pixel output (H x V)

1920 x 1080, 1280 x 720

Video format (HD)

Interface board HD-SDI: 1080p/30, 1080p/25, 720p/60, 720p/50
1080p/50 & 1080p/60 support on request for volume OEMs.
Camera LVDS : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/50

Video format (SD)

NTSC / PAL

Minimum illumination

0.2lx (50% video level, F/1.6, 1/30 sec, color)
0.03lx (50% video level, F/1.6, 1/30 sec, B&W)

Recommended illumination

100lx to 100,000lx

Gain

0-48dB (25 steps)

Shutter speed

1/1 to 1/10,000 sec (22 steps)

Sync speed

Internal

Exposure compensation

-12dB to +12dB (total 13 steps)

Backlight compensation

ON / OFF

Gamma

Normal / straight / narrow / wide (4 modes)

Aperture control

16 steps

White balance

ATW / manual / one push / indoor / outdoor

AE (Auto exposure mode)

Auto / manual / shutter priority / iris priority

Lens (wide to tele)

30x optical zoom f=6.5 to 195.0mm F1.6 to 5.3

Zoom movement speed (wide to tele)

7.0 sec (focus tracking ON)

Digital zoom

Up to 16x

Focusing system

Auto, manual, one push, AF sensitivity

Horizontal viewing angle (wide to tele)

54.0° to 2.0° (INF)

Minimum object distance

0.3m (wide) 1.5m (tele)

Camera Functions

E.I.S. (Electrical Stabilizer)

Available

Wide-D (Gamma)

Available

BLC (Backlight Compensation)

Available

Day / night (ICR)

ON / OFF / AUTO

Auto slow shutter

Max 1 sec

Defog

Available

Noise reduction (3D + 2D)

Available

Privacy zone masking

Available

Slow shutter

Available

Picture effects

B&W, freeze, upside down, rotation

External trigger (still image)

Available

Spot compensation

Available

Temperature readout

Available

Title display

Available (1 line: 20 text, max 20 lines)

Connector Specification - Harrier 3G-SDI Camera Interface Board

KEL30 Connector (J1)

The interface board on the camera is fitted with a 30-way miniature connector to link to the video output connector on the camera.

Connector type: KEL USL00-30L.

Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length).

Input/Output Connector (J2)

The interface board is fitted with an industry standard 4-way connector for VSync signal output and test pattern/reset control inputs.
Connector type: JST SM04B-SRSS-TB
Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below).
See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and control options.

Power and Control Connector (J3)

The interface board is fitted with an industry standard 10-way connector for power and serial control.
Connector type: JST SM10B-SRSS-TB
Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information below).
See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and output options.

HD-SDI Output Connector (J5)

The interface board is fitted with a Hirose H.FL Micro Coaxial Connector (75 Ohm).
Connector type: Hirose Micro Coaxial Connector (Receptacle), part number H.FL-R-SMT(01).
Mating connector: Use mating cable with 75 Ohm characteristic impedance, for example Hirose part number H.FL75-2LP-084H-A-100. A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-A (see ordering information below).

Analog Video Out (Pin 3, J3)

Standard resolution composite analog is simultaneously available in HD modes 720p50 (for PAL) and 720p60/59.94 (for NTSC). There are two options for the analog output, selectable via serial control:

(a) the 1280 pixel wide HD image can be cropped to 960 wide, by cropping a 120 pixel strip off each side to make a 4:3 aspect ratio Standard Definition (SD) signal.

(b) by pre-warping the image, such that when displayed on a HD monitor in the monitor’s stretch-to-fit mode, the original full-width HD signal will be displayed correctly at 16:9 aspect ratio.

Both methods ensure the displayed pixels remain square and that the image is not distorted.

Video and Control Mode DIP Switch (SW1)

The interface board is fitted with a 4-way DIP switch to select various video output and control modes.

The DIP switches to select the Video Format are read on power-up only. Therefore, to change mode using the DIP switches, power down the camera, set the switches and then power up the camera. DIP switches will only be effective for the operating modes supported by the camera currently in use.

See Harrier 3G-SDI Camera Interface Board datasheet for the configuration of the DIP switch SW1.

Communications Mode Selection (SW2)

The interface board is also fitted with a 2-way DIP switch to select the serial communications standard. It allows to choose between RS-232 VISCA communications, RS-485 VISCA comms with RS-485 termination enabled, RS-485 VISCA comms with RS-485 termination disabled and TTL VISCA communications.

See Harrier 3G-SDI Camera Interface Board datasheet for the details and configuration of the DIP switch SW2.

Digital Transmission Standard Selection (SW3)

The interface board is fitted with a 1-way DIP switch to select the SMPTE or HD-VLC digital output standards.

OFF = SMPTE compliant output.

ON = HD-VLC compressed output.

Camera Interfaces

Video output (HD)

Interface board HD-SDI: 1080p/30, 1080p/25, 720p/60, 720p/50
1080p/50 & 1080p/60 support on request for volume OEMs.
Camera LVDS : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/50

Video output (SD)

NTSC / PAL (CVBS)

Camera control interface

Camera functions may be controlled by VISCA protocol over RS-485/RS-232/TTL.
VISCA protocol (VISCA is a trademark of SONY corporation)

Physical and Environmental Details

Power requirement

9V to 12V DC

Power consumption

Approx. 5W (with zoom and focus operation)

Recommended temperature

0°C to +40°C

Operating temperature

-5°C to +60°C

Storage temperature

-40°C to +60°C

Dimensions (W x H x D)

55 x 62.3 x 125mm

Weight

Approx. 370g

Ordering Information

Part number Description

AS-CIB-HDSDI-002-2030-A

Harrier 30x AF-Zoom HD-SDI Camera (Tamron MP2030M-GS)

AS-CIB-3GSDI-002-EVAL-B

Evaluation Kit for the Harrier 3G-SDI, including the Harrier 30x AF-Zoom HD-SDI Camera (Tamron MP2030M-GS). The kit contains power supply, cabling (AS-CIB-CBLKIT-002-B), 30-way micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB UART). Not included: Camera and camera interface board.

AS-TAMRON-MP2030M-GS

Tamron MP2030M-GS optical 30x zoom camera module with a Global Shutter CMOS Sensor.

AS-CIB-3GSDI-002-A

Harrier 3G-SDI Camera Interface Board. 3G-SDI / HD-SDI interface solution. Analog composite output (when in 720p50/59.94/60 operating modes). Support for HD-VLC compression technology. Board only, no cables included.

AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm.
(Manufacturer: KEL, part number: USL20-30SS-010-C).

AS-CIB-USL30-50MM

30-way micro-coax cable for connecting the interface board to the camera. Length 50mm.
(Manufacturer: KEL, part number: USL20-30SS-005-C).

AS-CIB-CBLKIT-002-B

Cable kit for AS-CIB-3GSDI-002-A containing H.FL micro coax cable, BNC adapter and control cables for J2 and J3.

AS-CIB-BRK-007-A

Metal bracket, screws and spacers for mounting Harrier camera interface boards to the Tamron MP2030M-GS global shutter block camera.
