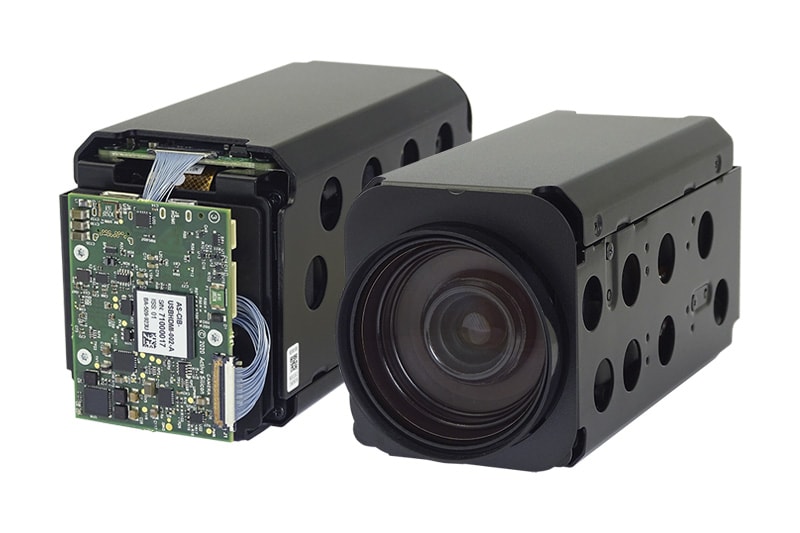

Harrier 30x AF-Zoom HDMI Camera (Tamron MP2030M-GS)

Part Number: AS-CIB-HDMI-001-2030-A

  • Autofocus-zoom block camera with global shutter.
  • Full HD 1920 x 1080 high resolution camera.
  • 1/1.8-type global shutter CMOS image sensor.
  • Video formats (HD): 1080p/30/25, 720p/60/50.
  • 30x optical zoom.
  • Horizontal viewing angle: 60° – 2.5°.
  • Dimensions (W x H x D): 55 x 63.8 x 138mm.
  • VISCA camera control over TTL.
  • Video output mode selected by DIP switches or VISCA control.
Enquire About This Product
  • Description

  • Product Specs

  • Downloads

  • Ordering Info

Description

Products Specs

Downloads

Ordering Info

This HDMI Autofocus-Zoom (AF-Zoom) Block Camera with Tamron MP2030M-GS offers 30x optical zoom and 16x digital zoom with full HD image output at 1920 x 1080p (30 fps). The Tamron MP2030M-GS is a global shutter CMOS image sensor; this allows capture of moving objects without the distortion which can occur with rolling shutters.

Benefiting from Tamron’s high quality optical design and low reflection coating technologies, the camera offers sophisticated features such as Wide Dynamic Range mode, 3D noise reduction, keystone correction, motion detection and many others.

The HDMI output is enabled when an HDMI cable is connected. On power-up, the camera video mode may be selected by the DIP switch settings on the board. Camera video modes, along with other camera and interface board functions, may also be controlled by VISCA commands sent using TTL serial communication.

1080p50 & 1080p60 support on request for volume OEMs.
Active Silicon also offers camera solutions with simultaneous USB & HDMI or USB only output as well as 3G-SDI/HD-SDI/HD-VLC™ video output.
For more information contact our team.

Camera Specification

Image sensor

1/1.8-type CMOS (global shutter)

Pixel output (H x V)

1920 x 1080, 1280 x 720

Video format (HD)

HDMI 1.4 : 1080p/30, 1080p/25, 720p/60, 720p/50
1080p/50 & 1080p/60 support on request for volume OEMs.
Camera LVDS : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/50

Video format (SD)

NTSC / PAL

Minimum illumination

0.2lx (50% video level, F/1.6, 1/30 sec, color)
0.03lx (50% video level, F/1.6, 1/30 sec, B&W)

Recommended illumination

100lx to 100,000lx

Gain

0-48dB (25 steps)

Shutter speed

1/1 to 1/10,000 sec (22 steps)

Sync speed

Internal

Exposure compensation

-12dB to +12dB (total 13 steps)

Backlight compensation

ON / OFF

Gamma

Normal / straight / narrow / wide (4 modes)

Aperture control

16 steps

White balance

ATW / manual / one push / indoor / outdoor

AE (Auto exposure mode)

Auto / manual / shutter priority / iris priority

Lens (wide to tele)

30x optical zoom f=6.5 to 195.0mm F1.6 to 5.3

Zoom movement speed (wide to tele)

7.0 sec (focus tracking ON)

Digital zoom

Up to 16x

Focusing system

Auto, manual, one push, AF sensitivity

Horizontal viewing angle (wide to tele)

54.0° to 2.0° (INF)

Minimum object distance

0.3m (wide) 1.5m (tele)

Camera Functions

E.I.S. (Electrical Stabilizer)

Available

Wide-D (Gamma)

Available

BLC (Backlight Compensation)

Available

Day / night (ICR)

ON / OFF / AUTO

Auto slow shutter

Max 1 sec

Defog

Available

Noise reduction (3D + 2D)

Available

Privacy zone masking

Available

Slow shutter

Available

Picture effects

B&W, freeze, upside down, rotation

External trigger (still image)

Available

Spot compensation

Available

Temperature readout

Available

Title display

Available (1 line: 20 text, max 20 lines)

Camera Interfaces

Video output (HD)

HDMI 1.4 : 1080p/30, 1080p/25, 720p/60, 720p/50
1080p/50 & 1080p/60 support on request for volume OEMs.
Camera LVDS : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/50

Video output (SD)

NTSC / PAL (CVBS)

HDMI

HDMI output is enabled when an HDMI cable is plugged in. The video mode of the HDMI output is the same as the output of the camera. To change the mode of the HDMI output the mode of the camera should be changed using VISCA serial commands or DIP switch settings (and power cycling). Video modes up to 1080p60 are supported.

Compliant with HDMI specification v.1.4a.

Camera control interface

Camera functions may be controlled using the VISCA protocol over TTL.
(VISCA is a trademark of SONY corporation)

Baud rate: 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, stop bit: 1-bit

Connector Specification

KEL30 Connector (J1)

The interface board is fitted with a 30-way miniature connector to link to the matching connector on the camera.

Connector type: KEL USL00-30L.

Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length).

Input/Output Connector (J2)

The interface board is fitted with an industry standard 4-way connector for VSync signal output and test pattern/reset control inputs.
Connector type: JST SM04B-SRSS-TB
Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information tab).
See Harrier HDMI Camera Interface Board datasheet for pin assignments and control options.

Power and Control Connector (J3)

The interface board is fitted with an industry standard 10-way connector for power and serial control.
Connector type: JST SM10B-SRSS-TB
Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information tab).
See Harrier HDMI Camera Interface Board datasheet for pin assignment and output options.

HDMI Output Connector (J5)

The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected.
Connector type: HDMI Type D (micro).
Mating Connector: Standard micro HDMI cable.

Video Mode DIP Switch (SW1)

The interface board is fitted with an 8-way DIP switch (SW1) to enable selection of camera video format on power-up. Switches 5-8 are reserved for future use.

See Harrier HDMI Camera Interface Board datasheet for the configuration of the DIP switch elements.

Status LED

The interface board is fitted with a multi-color LED to indicate camera status.

General

Power requirement

9V to 12V DC

Power consumption

Approx. 5W max (with zoom and focus operation)

Recommended temperature

0°C to +40°C

Operating temperature

-5°C to +60°C

Storage temperature

-40°C to +60°C

Dimensions (W x H x D)

55 x 63.8 x 138mm

Weight

Approx. 370g

Ordering Information

Part number Description

AS-CIB-HDMI-001-2030-A

Harrier 30x AF-Zoom HDMI Camera (Tamron MP2030M-GS); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request.

AS-CIB-USBHDMI-001-EVAL-A

Evaluation kit Harrier USB/HDMI, including Harrier 30x AF-Zoom HDMI Camera (Tamron MP2030M-GS). The kit contains power supply, board cables (AS-CIB-CBLKIT-003-A), 30-way micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB UART). Not included: Camera and camera interface board.

AS-TAMRON-MP2030M-GS

Tamron MP2030M-GS optical 30x zoom camera module with a Global Shutter CMOS Sensor.

AS-CIB-HDMI-001-A

Harrier HDMI Camera Interface Board for autofocus-zoom block cameras. Board only, no cables included.

AS-CIB-CBLKIT-003-A

Cable kit for the AS-CIB-HDMI-001-A, containing cables for J2 and J3 that connect to the Harrier Evaluation Board.

AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm.
(Manufacturer: KEL, part number: USL20-30SS-010-C).

AS-CIB-USL30-50MM

30-way micro-coax cable for connecting the interface board to the camera. Length 50mm.
(Manufacturer: KEL, part number: USL20-30SS-005-C).

AS-CIB-BRK-007-A

Metal bracket, screws and spacers for mounting Harrier camera interface boards to the Tamron MP2030M-GS camera.
