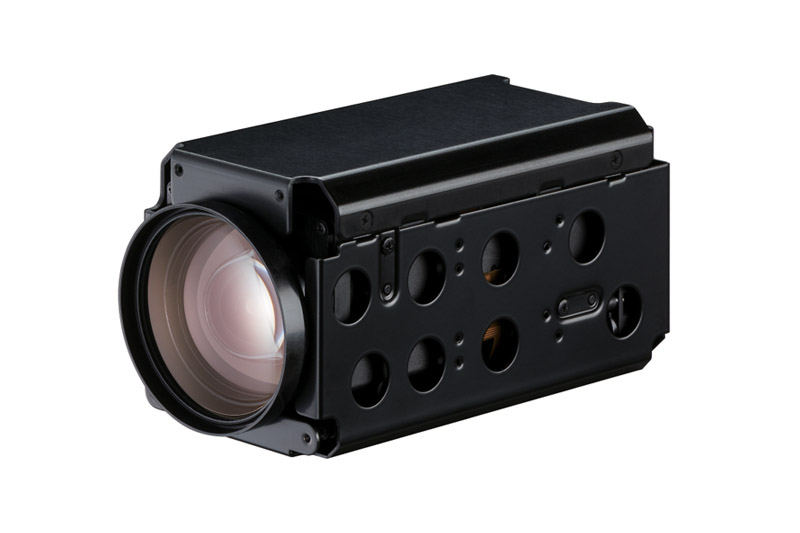

Tamron MP2030M-GS
Part Number: AS-TAMRON-MP2030M-GS
- Autofocus-zoom camera
- Full HD 1920 x 1080 high resolution camera
- 1/1.8-type global shutter CMOS image sensor
- Video formats (HD): 1080p/60, 59.94, 50, 30, 25; 1080i/60, 59.94, 50; 720p/60, 50
- Video formats (SD): NTSC/PAL
- 30x optical zoom
- Horizontal viewing angle: 60° – 2.5°
- Dimensions (L x W x H): 125 x 55 x 62.3mm
- LVDS and composite video output
- Compatible with Active Silicon’s Harrier camera interface boards
-
Description
-
Product Specs
-
Downloads
-
Ordering Info
Description
Products Specs
Downloads
Ordering Info
The Tamron MP2030M-GS is a 30x optical zoom camera. The global shutter CMOS image sensor prevents the distortion when capturing moving objects which commonly occurs with rolling shutter sensors. The Tamron MP2030M-GS features a built-in high-power zoom lens with a 30x optical zoom and Full HD image output at 1920 x 1080p 60 fps.
Camera
Image sensor |
1/1.8-type CMOS (global shutter) |
Pixel output (H x V) |
1920 x 1080, 1280 x 720 |
Video format (HD) |
1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/50 |
Video format (SD) |
NTSC / PAL |
Minimum illumination |
0.2lx (50% video level, F/1.6, 1/30 sec, color) |
Recommended illumination |
100lx to 100,000lx |
Gain |
0-48dB (25 steps) |
Shutter speed |
1/1 to 1/10,000 sec (22 steps) |
Sync speed |
Internal |
Exposure compensation |
-12dB to +12dB (total 13 steps) |
Backlight compensation |
ON / OFF |
Gamma |
Normal / straight / narrow / wide (4 modes) |
Aperture control |
16 steps |
White balance |
ATW / manual / one push / indoor / outdoor |
AE (Auto exposure mode) |
Auto / manual / shutter priority / iris priority |
Lens (wide to tele) |
30x optical zoom f=6.5 to 195.0mm F1.6 to 5.3 |
Zoom movement speed (wide to tele) |
7.0 sec (focus tracking ON) |
Digital zoom |
Up to 16x |
Focusing system |
Auto, manual, one push, AF sensitivity |
Horizontal viewing angle (wide to tele) |
60° – 2.5° |
Minimum object distance |
0.3m (wide) 1.5m (tele) |
Camera Functions
E.I.S. (Electrical Stabilizer) |
Available |
Wide-D (Gamma) |
Available |
BLC (Backlight Compensation) |
Available |
Day / night (ICR) |
ON / OFF / AUTO |
Auto slow shutter |
Max 1 sec |
Defog |
Available |
Noise reduction (3D + 2D) |
Available |
Digital output |
Available |
Privacy zone masking |
Available |
Slow shutter |
Available |
Picture effects |
B&W, freeze, upside down, rotation |
External trigger (still image) |
Available |
Spot compensation |
Available |
Temperature readout |
Available |
Title display |
Available (1 line: 20 text, max 20 lines) |
General
Power requirement |
9V to 12V DC |
Power consumption |
Approx. 5W (under zooming and focusing operation) |
Recommended temperature |
0°C to +40°C |
Operating temperature |
-5°C to +60°C |
Storage temperature |
-40°C to +60°C |
Dimensions (L x W x H) |
125 x 55 x 62.3mm |
Weight |
Approx. 370g |
Interface
Video output (HD) |
Digital: Y / Pb / Pr 4:2:2 (LVDS) |
Video output (SD) |
Analog: NTSC / PAL (CVBS: 1.0Vp-p ) * for monitor output |
Camera control interface |
VISCA protocol (VISCA is a trademark of SONY corporation) |
| Download | File Type | File Size | |
|---|---|---|---|
Datasheets |
Tamron MP2030-GS Datasheet | 957.34 KB | |
Manuals & Quick Start Guides |
MP2030M-GS Technical Reference Manual v.1.00 | 1.34 MB | |
Software |
Tamron MP2030M-GS Camera Control Software v.1.06 | zip | 90.08 KB |
CAD Drawings & Data |
Tamron MP2030M-GS Technical Drawing | jpg | 52.31 KB |
| Tamron MP2030M-GS 3D CAD Model (zipped STEP file) | zip | 1.47 MB | |
Other Downloads |
Tamron MP2030M-GS Flyer | 457.65 KB |
Ordering Information
| Part number | Description |
|---|---|
|
AS-TAMRON-MP2030M-GS |
Tamron MP2030M-GS – optical 30x zoom camera with a global shutter CMOS sensor. |
|
AS-CIB-HDSDI-002-2030-A |
Harrier 30x AF-Zoom HD-SDI Camera (Tamron MP2030M-GS) |
|
AS-CIB-3GSDI-002-A |
Harrier 3G-SDI Camera Interface Board. Analog composite output (when in 720p50/59.94/60 operating modes). Support for HD-VLC compression technology. Board only, no cables included. |
|
AS-CIB-USBHDMI-002-2030-A |
Harrier 30x AF-Zoom USB/HDMI Camera (Tamron MP2030M-GS) |
|
AS-CIB-USBHDMI-002-A |
Harrier USB/HDMI Camera Interface Board for autofocus-zoom block cameras; provides simultaneous USB 3 video (UVC) and HDMI video output. Board only, no cables included. |
|
AS-CIB-HDMI-001-2030-A |
Harrier 30x AF-Zoom HDMI Camera (Tamron MP2030M-GS) |
|
AS-CIB-HDMI-001-A |
Harrier HDMI Camera Interface Board. Board only, no cables included. |
|
AS-CIB-USL30-100MM |
30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C). |
|
AS-CIB-USL30-50MM |
30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C). |
|
AS-CIB-BRK-007-A |
Metal bracket, screws and spacers for mounting Harrier camera interface boards to the Tamron MP2030M-GS camera. |
