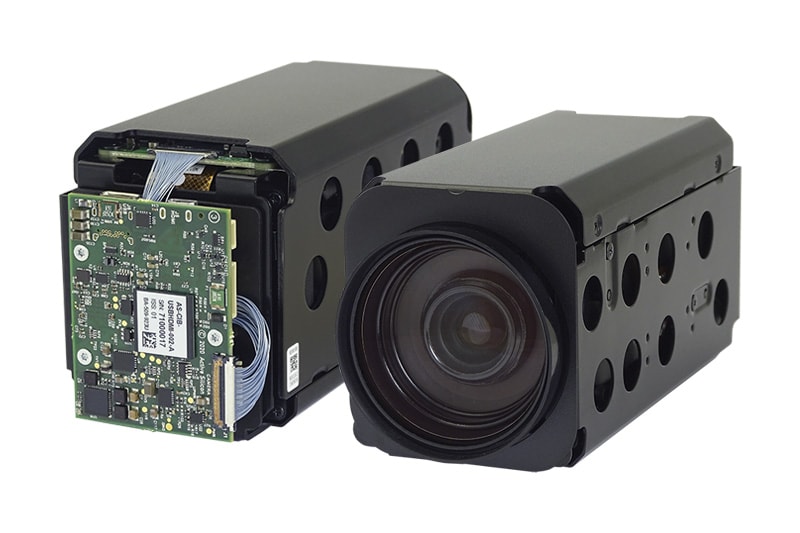

Product Photo of the USB / HDMI AF-Zoom Block Camera with Tamron MP2030M-GS featuring a global shutter sensor

Click image to enlarge

USB/HDMI AF-Zoom Block Camera with Tamron MP2030M-GS

Part Number: AS-CIB-USBHDMI-002-2030-A

  • Autofocus-zoom camera with global shutter.
  • Full HD 1920 x 1080 high resolution camera.
  • Simultaneous display on HDMI and USB video outputs.
  • 1/1.8-type global shutter CMOS image sensor.
  • Video formats (HD): 1080p/30/25, 720p/60/50.
  • 30x optical zoom.
  • Horizontal viewing angle: 60° – 2.5°.
  • Dimensions (W x H x D): 55 x 62.3 x 125mm.
  • VISCA camera control over RS-232/RS-485/TTL/USB.
  • UVC camera control.
  • Power supply over USB capability (requires 3A USB supply).
Enquire About This Product
  • Description

  • Product Specs

  • Downloads

Description

Products Specs

Downloads

This USB/HDMI Autofocus-Zoom (AF-Zoom) Block Camera offers 30x optical zoom and 16x digital zoom with simultaneous display of both HDMI and USB Video Class (UVC) v 1.1 output with full HD image output at 1920 x 1080p (30 fps). The Tamron MP2030M-GS is a global shutter CMOS image sensor; this allows capture of moving objects without the distortion which can occur with rolling shutters. Benefiting from Tamron’s high quality optical design and low reflection coating technologies, the camera offers sophisticated features such as Wide Dynamic Range mode, 3D noise reduction, keystone correction, motion detection and many others.

USB Video output is enabled when the camera is connected to a SuperSpeed USB 3.x host. The HDMI output is enabled when an HDMI cable is connected. On power-up the camera video mode may be selected by DIP switch settings on the board. Camera video modes, along with other functions, may be controlled by sending VISCA commands over RS-485/RS-232/TTL or the Harrier Virtual COM port (USB) or using UVC commands. The USB interface serves as UVC video output, USB based control input port (for the UVC properties and Harrier Virtual Serial COM port) and optional power supply. An example UVC video application is available with the Harrier USB SDK (application source code and Visual studio projects for C++/CLI, C#, and VB are available on request from Active Silicon).

1080p50 & 1080p60 support on request for volume OEMs.
Active Silicon also offers camera solutions with 3G-SDI/HD-SDI/HD-VLC™ video output and HDMI or USB only output.
For more information contact our team.

Camera Specification

Image sensor

1/1.8-type CMOS (global shutter)

Pixel output (H x V)

1920 x 1080, 1280 x 720

Video format (HD)

UVC 1.1 : 1080p/30, 1080p/25, 720p/60, 720p/50
HDMI 1.4 : 1080p/30, 1080p/25, 720p/60, 720p/50
1080p/50 & 1080p/60 support on request for volume OEMs.
Camera LVDS : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/50

Video format (SD)

NTSC / PAL

Minimum illumination

0.2lx (50% video level, F/1.6, 1/30 sec, color)
0.03lx (50% video level, F/1.6, 1/30 sec, B&W)

Recommended illumination

100lx to 100,000lx

Gain

0-48dB (25 steps)

Shutter speed

1/1 to 1/10,000 sec (22 steps)

Sync speed

Internal

Exposure compensation

-12dB to +12dB (total 13 steps)

Backlight compensation

ON / OFF

Gamma

Normal / straight / narrow / wide (4 modes)

Aperture control

16 steps

White balance

ATW / manual / one push / indoor / outdoor

AE (Auto exposure mode)

Auto / manual / shutter priority / iris priority

Lens (wide to tele)

30x optical zoom f=6.5 to 195.0mm F1.6 to 5.3

Zoom movement speed (wide to tele)

7.0 sec (focus tracking ON)

Digital zoom

Up to 16x

Focusing system

Auto, manual, one push, AF sensitivity

Horizontal viewing angle (wide to tele)

54.0° to 2.0° (INF)

Minimum object distance

0.3m (wide) 1.5m (tele)

Camera Functions

E.I.S. (Electrical Stabilizer)

Available

Wide-D (Gamma)

Available

BLC (Backlight Compensation)

Available

Day / night (ICR)

ON / OFF / AUTO

Auto slow shutter

Max 1 sec

Defog

Available

Noise reduction (3D + 2D)

Available

Privacy zone masking

Available

Slow shutter

Available

Picture effects

B&W, freeze, upside down, rotation

External trigger (still image)

Available

Spot compensation

Available

Temperature readout

Available

Title display

Available (1 line: 20 text, max 20 lines)

General

Power requirement

9V to 12V DC from J3, or 5V from J6 (USB)

Power consumption

Approx. 8W max (with zoom and focus operation)

Recommended temperature

0°C to +40°C

Operating temperature

-5°C to +60°C

Storage temperature

-40°C to +60°C

Dimensions (W x H x D)

55 x 62.3 x 125mm

Weight

Approx. 370g

Camera Interfaces

Video output (HD)

UVC 1.1 : 1080p/30, 1080p/25, 720p/60, 720p/50
HDMI 1.4 : 1080p/30, 1080p/25, 720p/60, 720p/50
1080p/50 & 1080p/60 support on request for volume OEMs.
Camera LVDS : 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/50

Video output (SD)

NTSC / PAL (CVBS)

Camera control interface

Camera functions are controlled over the USB interface using standard UVC properties. Camera functions may also be controlled using the VISCA protocol over RS-485/RS-232/TTL/USB (using the Harrier Virtual Serial COM port).
(VISCA is a trademark of SONY corporation)

Connector Specification

Input/Output Connector (J2)

The interface board is fitted with an industry standard 4-way connector for VSync signal output and test pattern/reset control inputs.
Connector type: JST SM04B-SRSS-TB
Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below).
See Harrier USB/HDMI Camera Interface Board datasheet for pin assignments and control options.

Power and Control Connector (J3)

The interface board is fitted with an industry standard 10-way connector for power and serial control.
Connector type: JST SM10B-SRSS-TB
Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below).
See Harrier USB/HDMI Camera Interface Board datasheet for pin assignment and output options.

HDMI Output Connector (J5)

The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected.
Connector type: HDMI Type D (micro).
Mating Connector: Standard micro HDMI cable.

USB 3.0 Connector (J6)

This USB Type C connector provides a USB Video Class (UVC) v1.1 video stream for connection to a host PC. The connector also provides a UVC control port for camera control (optional).
Connector type: USB Type C (5 Gbps)
Mating Connector: Standard USB 3.x Type A/C to Type C cable (5 Gbps min.)

Ordering Information

Part number Description

AS-CIB-USBHDMI-002-2030-A

AS-CIB-USBHDMI-002-A supplied mounted on a Tamron MP2030-GS autofocus-zoom camera with AS-CIB-USL30-100MM connecting cable fitted.

AS-CIB-USBHDMI-001-EVAL-A

Evaluation kit for AS-CIB-USBHDMI-002-A interface board. Includes power supply, cabling (including AS-CIB-CBLKIT-003-A) and PC serial interface (via USB).

AS-TAMRON-MP2030M-GS

Tamron MP2030M-GS optical 30x zoom camera module with a Global Shutter CMOS Sensor.

AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm.
(Manufacturer: KEL, part number: USL20-30SS-010-C).

AS-CIB-USL30-50MM

30-way micro-coax cable for connecting the interface board to the camera. Length 50mm.
(Manufacturer: KEL, part number: USL20-30SS-005-C).

AS-CIB-CBLKIT-003-A

Cable kit for the AS-CIB-USBHDMI-002-A, containing cables for J2 and J3 that connect to the Harrier Evaluation Board.

AS-CIB-BRK-002-A

Metal bracket, screws and spacers for mounting Harrier camera interface boards to the Tamron MP2030M-GS camera.
