Accessories & Cables

Camera Link cable MDR to SDR

Part Number: AS-CBL-CL-MPSP-J-4M

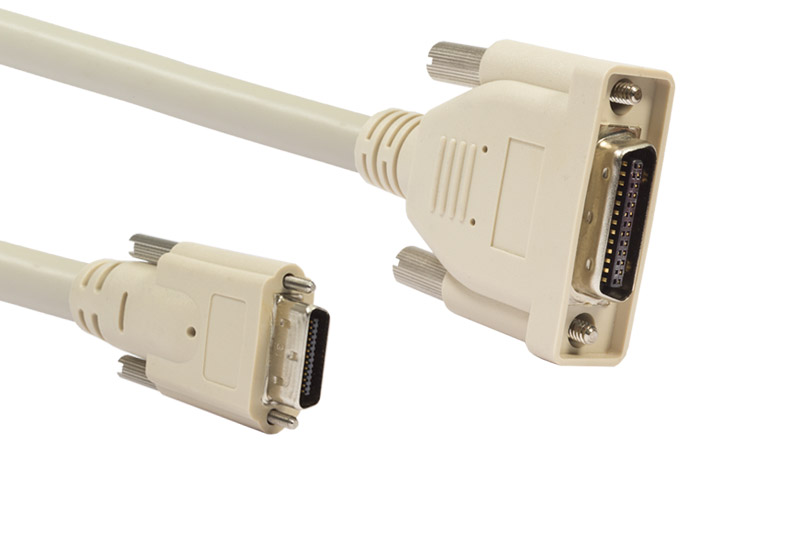

Product image - Camera Link cable MDR to SDR, PoCL

Features

  • End A = MDR
  • End B = SDR
  • Power over Camera Link
  • 4m length
  • Alternative connectors and lengths available

Camera Link cables are designed for imaging systems using Camera Link cameras and frame grabbers. The AS-CBL-CL-MPSP-J-4M is an MDR to SDR (standard-to-mini) cable that supports bidirectional data transfer and Power over Camera Link (PoCL).

Cables of 4m are available from stock, other lengths are available for higher quantity orders. Please get in touch with sales@activesilicon for options. One or two cables can be used per camera, although two cables are required for Medium, Full and 80-bit configurations.

The dedicated machine vision standard Camera Link is particularly well-suited to high-speed imaging uses, including industrial inspection, scientific and defense applications.

Machine vision cables from Active Silicon are supplied with a variety of connectors. Download a table listing all Camera Link and CoaXPress cables available from Active Silicon.

Specification summary

End A

MDR

End B

SDR

Power over Camera Link

Yes

Length

4 meters

Outer diameter

8.4mm

Cable type

MCD-408 (c)

Color

Ivory

Alternatives

Camera Link cable MDR to MDR

Camera Link cable, PoCL, MDR to MDR, available in 3m or 5m lengths. View here.

Camera Link cable SDR to SDR

Camera Link cable, PoCL, SDR to SDR, length 4m. View here.

Download File Type File Size

CAD Drawings & Data

Mechanical Overview pdf 199.38 KB

Other Downloads

Machine vision cables available from Active Silicon pdf 148.10 KB
Part number Description
AS-CBL-CL-MPSP-J-4M

Camera Link cable, PoCL, MDR to SDR, ivory, 4 meters
