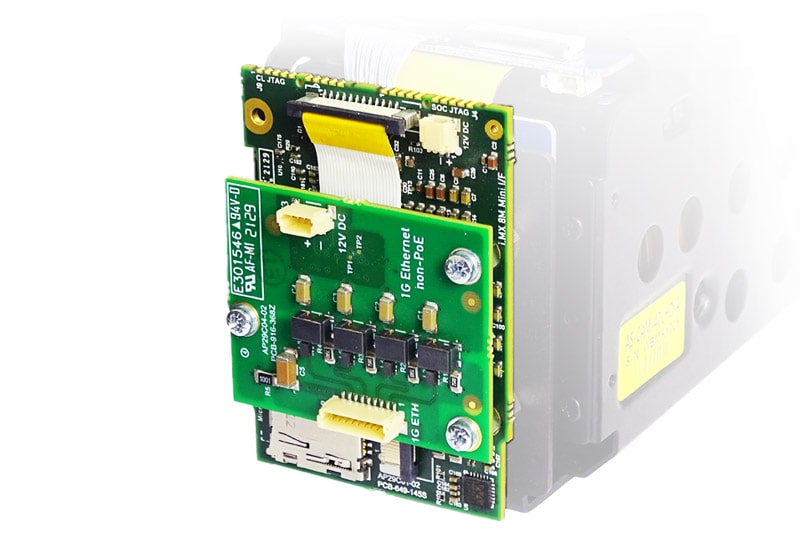

Active Silicon offers camera interface boards for Autofocus-Zoom cameras and adapters for host-end acquisition and format conversion. The camera interface boards for Tamron, Sony and other block cameras take data from the proprietary camera interface and format into industry standard interfaces such as 3G-SDI / HD-SDI, USB 3.0, HDMI and IP. All modules feature very low clock jitter and stable outputs over a wide temperature range and are suited to many applications in broadcast, medical, industrial, security and defense applications.
The Harrier 3G-SDI Camera Interface Board is a solution for real-time HD-SDI video from the Tamron MP1010M-VC camera and 3G-SDI video from the new MP1110M-VC camera. This module will also support other autofocus-zoom camera brands, including the Sony range and can provide simultaneous analog output in Standard Definition (SD) video.
The Harrier 3G-SDI Camera Interface Board is a solution for real-time HD-SDI video from the Tamron MP1010M-VC camera and 3G-SDI video from the new MP1110M-VC camera. This module will also support all other prime Autofocus-Zoom camera brands, including the Sony range and can provide simultaneous analog output in Standard Definition (SD) video.
The Harrier SDI Adapter is an interface for the acquisition of 3G-SDI and HD-SDI video streams. Three outputs are provided: a 3G-SDI / HD-SDI output via BNC, an HDMI output, and a SuperSpeed USB Type-C output providing USB Video Class (UVC) v1.1 compliant video streaming. The Harrier SDI Adapter is also available in a housed version.
The Active-FCB-EV-HD-SDI interface board connects to the digital output port of the new Sony FCB-EV7520A block camera to give optimal image quality. All camera HD modes are supported.
The Active FCB-EV-HD-SDI interface board supports the Sony EV series of block cameras, connecting to the digital output port to give superior image quality. All HD-SDI modes of the camera are supported. Note the interface module for the EV7100 camera is sold as a separate kit.
The Active FCB-EV-HD-SDI supports the Sony EV7100 block camera, connecting to the digital output port to give superior image quality. All HD-SDI modes of the camera are supported.
The Active FCB-SE600-HDSDI connects to the digital output port of the Sony FCB-SE600 block camera to give optimal image quality. All camera HD modes are supported i.e. 1080p/30Hz, 1080i/50Hz, 720p/50Hz and 720p/60Hz. RS-232 communications port and reset line are also available. Compliant with SMPTE 274M and SMPTE 296M.
The Active FCB-EH-HD-SDI supports the Sony EH series of block cameras, connecting to the digital output port to give superior image quality. All HD-SDI modes of the camera are supported. Note the interface module for the EH3150 camera is sold as a separate kit.
The Active FCB-EH-HD-SDI connects to the digital output port of the Sony EH3150 block camera to give superior image quality. All HD-SDI modes of the camera are supported.
The Active-FCB-HDSDI connects to the digital output port of the Sony FCB-H11 (or FCB-H10) block camera to give optimal image quality. All camera HD modes are supported i.e. 1080i/50Hz, 1080i/59.94Hz, 720p/50Hz and 720p/59.94Hz. RS-232 communications port and reset line are available as well as HD and SD analog video. Compliant with SMPTE 274M and SMPTE 296M.
The Active-FCB-CXP connects to the digital output port of the Sony FCB-H11 (or FCB-H10) block camera to give optimal image quality. All camera HD modes are supported i.e. 1080i/50Hz, 1080i/59.94Hz, 720p/50Hz and 720p/59.94Hz. Uses a single 2.5GB/s CoaXPress link for power, control and data.
