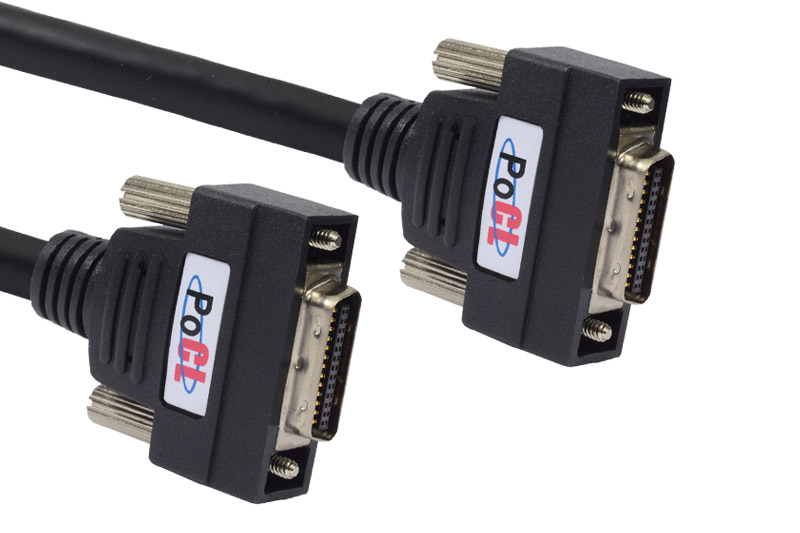

Camera Link cable MDR to MDR
Part Number: AS-CBL-CL-MP-D-xM
- End A = MDR
- End B = MDR
- Power over Camera Link
- Available in 3m and 5m lengths
- Alternative connectors and lengths available
-
Description
-
Product Specs
-
Downloads
-
Ordering Info
Description
Products Specs
Downloads
Ordering Info
Camera Link cables are suitable for imaging systems using Camera Link cameras and frame grabbers. Camera Link cables from Active Silicon are supplied with a variety of connectors. AS-CBL-CL-MP-D-xM is an MDR to MDR (standard) cable designed to support bidirectional data transfer, along with PoCL. Cables of 3m and 5m are available from stock, other lengths are available for higher quantity orders, please contact sales@activesilicon for options.
One or two cables can be used per camera, although two cables are required for Medium, Full and 80-bit configurations.
Camera Link is particularly well-suited to high-speed imaging uses including industrial inspection, scientific and defense applications.
Download a table listing all cables available from Active Silicon.
Specification summary
End A |
MDR |
End B |
MDR |
Power over Camera Link |
Yes |
Length |
3 meters or 5 meters |
Outer diameter |
9.5mm |
Cable type |
HIFLEX PoCL (Robotic / C-Track) |
Color |
Black |
Alternatives
Camera Link cable MDR to SDR |
Camera Link cable, PoCL, MDR to SDR, length 4m. View here. |
Camera Link cable SDR to SDR |
Camera Link cable, PoCL, SDR to SDR, length 4m. View here. |
| Download | File Type | File Size | |
|---|---|---|---|
CAD Drawings & Data |
Mechanical Overview | 370.28 KB | |
Other Downloads |
Machine vision cables available at Active Silicon | 106.09 KB |
Ordering Information
| Part number | Description |
|---|---|
|
AS-CBL-CL-MP-D-3M |
Camera Link cable, PoCL, MDR to MDR, black, 3 meters |
|
AS-CBL-CL-MP-D-3M |
Camera Link cable, PoCL, MDR to MDR, black, 5 meters |
