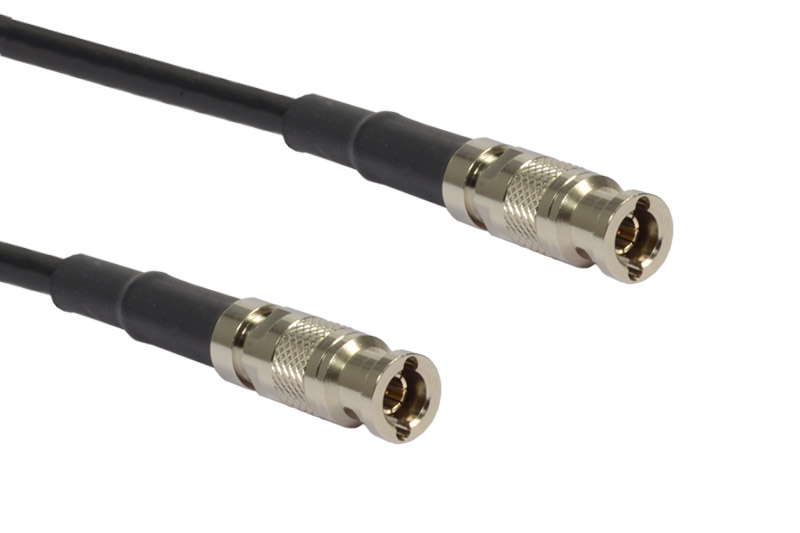

CoaXPress cable HD-BNC (Micro-BNC) to HD-BNC
Part Number: AS-CBL-1MM-0010-xM
Features
- End A = HD-BNC (Micro-BNC)
- End B = HD-BNC (Micro-BNC)
- Supports speeds up to 12 Gbps
- 75 Ohm
- Available in 3m, 5m and 10m lengths
- Alternative connectors and lengths available
CoaXPress cables from Active Silicon are supplied with a variety of connectors. AS-CBL-1MM-0010-xM is a HD-BNC to HD-BNC (Micro-BNC to Micro-BNC) cable designed to support bidirectional data transfer and is compatible with CXP-12 hardware. Cables of 3m, 5m and 10m are available from stock, other lengths are available for higher quantity orders, please contact sales@activesilicon for options.
CoaXPress is an ideal interface for high-quality, high-speed image processing and is used widely in industrial vision systems, medical imaging and aerospace.
Download a table listing all cables available from Active Silicon.
Specification summary
| End A | HD-BNC (Micro-BNC) |
| End B | HD-BNC (Micro-BNC) |
| Length | 3 meters, 5 meters or 10 meters |
| Speed rating | 12 Gbps |
| Cable type | Belden 4855R |
| Color | Black |
Further CoaXPress cables available at Active Silicon
| BNC to HD-BNC (Micro-BNC) | CoaXPress cable, BNC to HD-BNC, available in 3m and 10m lengths, 12 Gbps, 75 Ohm. View here. |
| BNC to BNC | CoaXPress cable, BNC to BNC, available in 3m and 10 lengths, 6 Gbps, 75 Ohm. View here. |
| DIN to HD-BNC (Micro-BNC) | CoaXPress cable, DIN to HD-BNC, available in 3m and 10m lengths, 6 Gbps, 75 Ohm. View here. |
| Download | File Type | File Size | |
|---|---|---|---|
CAD Drawings & Data |
Mechnical Overview | 319.71 KB | |
Other Downloads |
Machine vision cables available from Active Silicon | 148.10 KB |
| Part number | Description |
|---|---|
| AS-CBL-1MM-0010-3M |
CoaXPress cable, single HD-BNC (Micro-BNC) to HD-BNC, 12 Gbps, 75 Ohm, black, 3 meters |
| AS-CBL-1MM-0010-5M |
CoaXPress cable, single HD-BNC (Micro-BNC) to HD-BNC, 12 Gbps, 75 Ohm, black, 5 meters |
| AS-CBL-1MM-0010-10M |
CoaXPress cable, single HD-BNC (Micro-BNC) to HD-BNC, 12 Gbps, 75 Ohm, black, 10 meters |
