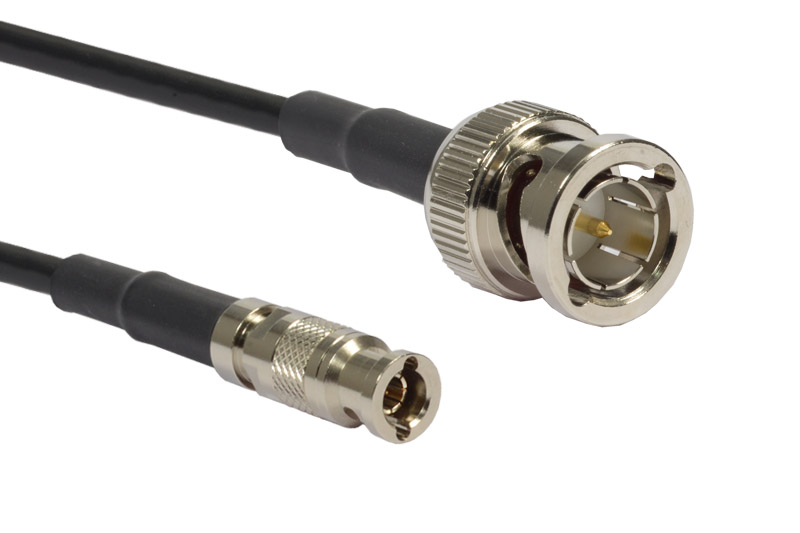

CoaXPress cable BNC to Micro-BNC
Part Number: AS-CBL-1BM-0010-xM
- End A = BNC
- End B = Micro-BNC (HD-BNC)
- Supports speeds up to 12 Gbps
- 75 Ohm
- Available in 3m and 10m lengths
- Alternative connectors and lengths available
-
Description
-
Product Specs
-
Downloads
-
Ordering Info
Description
Products Specs
Downloads
Ordering Info
CoaXPress cables from Active Silicon are supplied with a variety of connectors. AS-CBL-1BM-0010-xM is a BNC to Micro-BNC (HD-BNC) cable designed to support bidirectional data transfer and is compatible with CXP-12 hardware. Cables of 3m and 10m are available from stock, other lengths are available for higher quantity orders, please contact sales@activesilicon for options.
CoaXPress is an ideal interface for high-quality, high-speed image processing and is used widely in industrial vision systems, medical imaging and aerospace.
Download a table listing all cables available from Active Silicon.
Specification summary
End A |
BNC |
End B |
Micro-BNC (HD-BNC) |
Length |
3 meters or 10 meters |
Speed rating |
12 Gbps |
Cable type |
Belden 4855R |
Color |
Black |
Further CoaXPress cables available at Active Silicon
Micro-BNC to Micro-BNC |
CoaXPress cable, Micro-BNC to Micro-BNC, available in 3m, 5m and 10m lengths, 12 Gbps, 75 Ohm. View here. |
BNC to BNC |
CoaXPress cable, BNC to BNC, available in 3m and 10m lengths, 6 Gbps, 75 Ohm. View here. |
DIN to Micro-BNC |
CoaXPress cable, DIN to Micro-BNC, available in 3m and 10m lengths, 6 Gbps, 75 Ohm. View here. |
| Download | File Type | File Size | |
|---|---|---|---|
CAD Drawings & Data |
Mechanical Overview | 430.56 KB | |
Other Downloads |
Machine vision cables available at Active Silicon | 106.09 KB |
Ordering Information
| Part number | Description |
|---|---|
|
AS-CBL-1BM-0010-3M |
CoaXPress cable, single BNC to Micro-BNC, 12 Gbps, 75 Ohm, black, 3 meters |
|
AS-CBL-1BM-0010-10M |
CoaXPress cable, single BNC to Micro-BNC, 12 Gbps, 75 Ohm, black, 10 meters |
