Evaluation Kit for the Harrier 23x/52x IP Camera
Part Number: AS-CAM-23IP4K-EVAL-A
- For evaluation of the Harrier 23x AF-Zoom IP 4K Camera and the Harrier 52x AF-Zoom IP Camera.
- Includes an evaluation board, power supply and all cables required for fast setup.
- Immediate connection to the IP video output.
- ONVIF compatible IP camera interface.
- Quickstart guide for easy set-up (see download section).
-
Description
-
Product Specs
-
Downloads
-
Ordering Info
Description
Products Specs
Downloads
Ordering Info

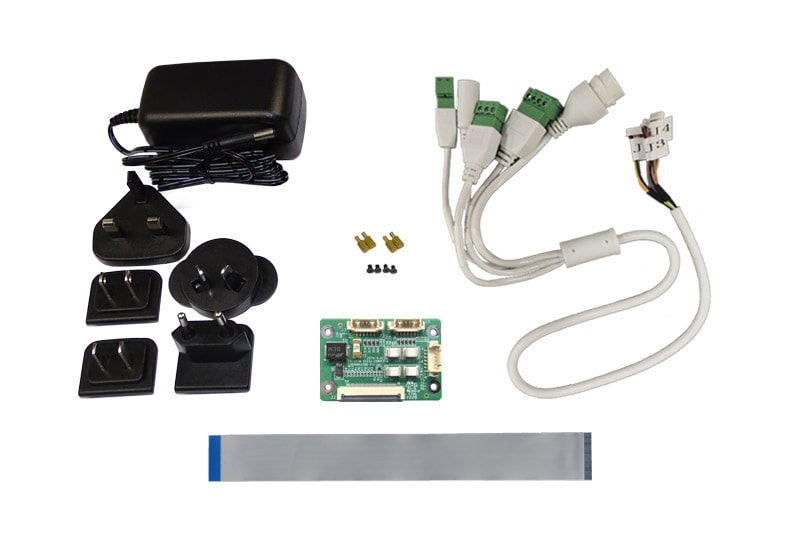

The Evaluation Kit for the Harrier 23x/52x IP Camera enables rapid evaluation of both the Harrier 23x AF-Zoom IP 4K Camera and the Harrier 52x AF-Zoom IP Camera. It contains an evaluation board, board mounting posts/screws, FFC cable, and power supply.
The Evaluation Board provides the camera with power and an IP connection to a host computer. Any ONVIF compliant software (e.g. ONVIF device manager) can be used to control the video steam/camera. Initially the camera is set to a fixed IP address to allow quick connection to the camera and video stream.
Note: The evaluation kit does not include the camera, which needs to be ordered separately.
Related Products
Evaluation Kit for the Harrier 23IP4K Camera
Kit Contents: |
Please note: Camera not included. |
Connectors of the Harrier 23x/52x IP Camera Evaluation Board (Issue 02)
FFC connector (J1) |
The evaluation board is fitted with a 36-way FFC cable connector (J1) to link to the matching connector on the camera (J2). A 36-way, 0.5mm pitch, opposite sided FFC cable is included in the evaluation kit. |
Ethernet connector (J2) |
The J2 socket on the evaluation board is an RJ45 socket that is used with a CAT5/6 cable to make an Ethernet connection to a host PC. |
Serial, Audio and Alarm connector (J4) |
The J4 socket on the evaluation board connects to a 16-way cable socket header that can be used to connect to audio line in/out, RS-485 serial port and Alarm inputs and outputs. |
UART connector (J6) |
The J6 socket on the evaluation board is used make a connection to the camera UART. |
Connectors of the Harrier 23IP4K Camera Evaluation Board (Issue 01, not shipped any longer)
FFC connector (J2 |
The evaluation board is fitted with a 36-way FFC cable connector (J2) to link to the matching connector on the camera (J2). A 36-way, 0.5mm pitch, opposite sided FFC cable is included in the evaluation kit. |
Power and serial connector (J3) |
Power is supplied to the Harrier 23IP4K Camera Evaluation Board (and Harrier 23x AF-Zoom IP 4K Camera) by the J3 header connector. The J3 socket on the evaluation board connects to the multi-way cable header plug J3. On the other side of the multi-way cable there is a 5.5 x 2.1mm barrel socket connector to which a 12V (centre positive) power supply should be connected. |
Ethernet connector (J4) |
The J4 socket on the evaluation board connects to the multi-way cable header plug J4. On the other side of the multi-way cable there is an RJ45 socket that can be used with a CAT5/6 cable to make an Ethernet connection to a host PC. |
Audio and Alarm connector (J5) |
The J5 socket on the evaluation board connects to the multi-way cable header plug J5. On the other side of the multi-way cable there are screw terminals that can be used to connect to the audio, alarm and CVBS signals. |
| Download | File Type | File Size | |
|---|---|---|---|
Manuals & Quick Start Guides |
Harrier 52x AF-Zoom IP Camera Quickstart Guide - v1.2 | 825.35 KB | |
| Harrier 23x AF-Zoom IP 4K Camera Quickstart Guide - v2.1 | 912.18 KB | ||
| Harrier 23x AF-Zoom IP 4K Camera Quickstart Guide - v1.1 (with evaluation board iss01) | 1.03 MB | ||
Other Downloads |
List of available documentation | 101.90 KB |
Ordering Information
| Part number | Description |
|---|---|
|
AS-CAM-23IP4K-EVAL-A |
Evaluation Kit for the Harrier 23x/52x IP Camera. Kit contains an evaluation board, board mounting posts/screws, FFC cable and power supply. Camera not included. |
|
AS-CAM-23IP4K-A |
Harrier 23x AF-Zoom IP 4K Camera. |
|
AS-CAM-23IP4K-B |
Harrier 23x AF-Zoom IP 4K Camera with evaluation board, incl. screws/posts to mount the board to the camera. |
|
AS-CAM-52IPHD-A |
Harrier 52x AF-Zoom IP Camera |
Overview diagram of the evaluation board
