How to set up the Harrier 23x AF-Zoom IP 4K Camera
This tutorial video will help to quickly get started with your Harrier IP camera. Learn what you need for the set-up, how it works and how to control the camera.
Cameras
Harrier 23x AF-Zoom IP 4K Camera
Part Number: AS-CAM-23IP4K-A
Features
- 4K autofocus-zoom camera
- Output: H.265 IP (Ethernet)
- Video modes (4K & HD): 3840 x 2160 – 30/25fps, 1080p – 30/25 fps, 720p – 30/25 fps
- Video compression: H.265 / H.264
- 1/2-type 8.3MP Sony IMX344 CMOS sensor
- 23x Optical Zoom, 16x Digital Zoom
- Effective number of pixels approx. 8,290,000
- Shutter speed 1/25 ~ 1/100,000 sec
- Dimensions (L x W x H): 98.5 x 52 x 62 mm
- Digital Image Stabilization and 2D/3D Noise Reduction
- Day & Night mode – Infrared Cut filter Removal (ICR)
- High/Back Light Compensation (HLC/BLC)
The Harrier 23x AF-Zoom IP 4K Camera is a compact autofocus-zoom Ethernet camera with real-time 4K video output and 23x optical zoom. It features a 8.3MP Sony CMOS sensor and provides low latency H.265/H.264 video output.
Sophisticated features of the camera include Wide Dynamic Range (WDR), Day & Night mode – Infrared Cut filter Removal (ICR), Digital Noise Reduction (2D + 3D DNR) and Digital Image Stabilization, to name but a few. The camera also serves a configuration website.
The camera is ONVIF Profile S compatible so streaming video can be displayed in the ONVIF compatible viewers/software (e.g. ONVIF device manager) and any media player that can display RTP/RTSP streams.
Latency can be an issue in Ethernet IP imaging systems and Harrier IP camera hardware and firmware has been optimized to reduce latency to a minimum. Read more about how to obtain the lowest latency with your Ethernet IP autofocus-zoom camera. For more details (and measured latencies for our Harrier IP AF-Zoom modules) please download the Technical Note: Obtaining the lowest latency from your Harrier AF-Zoom IP camera.
Camera Specification
| Image sensor | 1/1.8″-type Sony IMX344 CMOS sensor (progressive scan) |
| Effective no. of pixels | Approx. 8,420,000 pixels |
| Lens (wide to tele) | 23x optical zoom; f= 6.7mm to 154.1mm; |
| Aperture range | F1.58 ~ F3.95 |
| Shutter speed | 1/25~1/100000 sec |
| Field of view (wide to tele) | 59.6° to 3.5° |
| Minimum object distance (wide to tele) | 0.01m – 1.5m |
| AF Speed | 5s (Optical, Wide-Tele) |
| D/N Shift | ICR, Auto, Color, Back/White |
| Scanning | Progressive Scanning |
| Video format (HD) | Main Stream: 3840×2160 – 30/25fps; 1920×1080 – 30/25 fps; 1280×720 – 30/25 fps |
| Minimum illumination | 0.002Lux @(F1.5, AGC ON) color |
| Video output | Network Coding |
| Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment |
| Image Setting | Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Watch mode, Power off Memory, EIS, 3D Positioning |
| ROI | (Region of interest) 4 regions |
| Focus mode | Auto/Manual/Semi Auto/One Time Focus (auto mode) |
| Exposure mode | Auto/Manual/Shutter Priority/Low light Priority/High light Priority/Aperture Priority |
| White balance | Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/White Lamp/One time Tracking/Auto Tracking |
| Lens initialization | Built-in shutter priority |
| Digital zoom | 16x |
Camera Functions
| Day & Night shift | ICR, Auto, Color, White/Black |
| Wide Dynamic Range (WDR) | Super WDR, Digital WDR, 0-100 digital adjustment |
| Digital Noise Reduction (DNR) | 2D/3D |
| Digital Image Stabilization | Off / On |
| High/Back Light Compensation (HLC/BLC) | Available |
| Defog | Available |
| Anti Flicker | Available |
| Privacy mask | Available |
| Defect Point Compensation | Available |
| Mirror | Available |
Network
| Storage | SD card 128G (class10) |
| Smart Function | Motion Detection, Tampering, Area Intrusion, Line Crossing, Off-line, IP conflict, HDD Full |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, QoS |
| Compatibility | ONVIF, Active register |
| Audio compression | G.711A, G.711U, G.726, AAC |
| Video compression | H.265 / H.264 |
| General | Heartbeat, Password Protection, Black/White list |
General
| Power requirement | DC12V±10% |
| Power consumption | Max.: 4.5W |
| Operating temperature | -10°C to +60°C |
| Storage temperature | -10°C to +60°C |
| Operating humidity | 0% to 95% (no condensation) |
| Dimensions (L x W x H) | 98.5mm x 52mm x 62mm (L x W x H). |
| Weight | 316g. |
| Download | File Type | File Size | |
|---|---|---|---|
Datasheets |
Datasheet Harrier 23x AF-Zoom IP 4K Camera | 302.53 KB | |
Manuals & Quick Start Guides |
Technical Reference Manual - Harrier 23x AF-Zoom IP 4K Camera v.2.3 | 1.56 MB | |
| Harrier 23x AF-Zoom IP 4K Camera Quickstart Guide - v2.2 | 959.01 KB | ||
| Harrier 23x AF-Zoom IP 4K Camera Quickstart Guide - v1.1 (with evaluation board iss01) | 1.03 MB | ||
CAD Drawings & Data |
3D CAD Model (zipped STEP file) | zip | 3.93 MB |
| 3D CAD Model with FOV cone (zipped STEP file) | zip | 7.91 MB | |

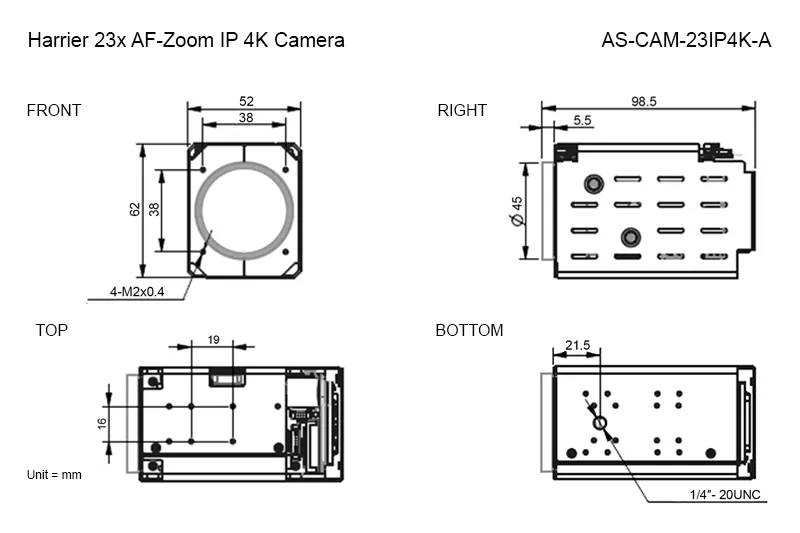

| Dimensions of the Harrier 23x AF-Zoom IP 4K Camera | png | 116.22 KB | |
Other Downloads |
Tech Note TN015: Obtaining the lowest latency from your Harrier IP camera v2.3 | 495.72 KB | |
| Brochure - Cameras for drones, UAVs and gimbals | N/A | N/A |
| Part number | Description |
|---|---|
| AS-CAM-23IP4K-A |
Harrier 23x AF-Zoom IP 4K Camera. |
| AS-CAM-23IP4K-EVAL-A |
Evaluation kit for the Harrier 23x AF-Zoom IP 4K Camera. Kit contains an evaluation board, power supply, FFC cable and mounting screws and posts. |
| AS-BRD-23IP4K-EVAL-A |
Evaluation board for the Harrier 23x AF-Zoom IP 4K Camera. FFC cable, mounting screws and posts are included. (Note: does not include power supply or camera) |
