Video Adapters

Video adapters enable host-end video acquisition by receiving video signals from cameras or other sources. They perform real-time video format conversion to ensure compatibility with display or processing systems.

Our BlueBird adapters convert SDI to simultaneous USB and HDMI video, also HD-VLC to USB, HDMI and SDI video output. Our SDI/HD-VLC solution guarantees high-quality video transmission over long cable distances. Find out more about long-reach HD video transmission technologies.

Other video adapter models convert 3G/HD-SDI to H.264 IP video or analog video to SDI video output.

BlueBird video adapters complement and work in line with our Harrier AF-Zoom cameras and camera interface board range. Active Silicon also provides custom design services and if you require a custom video adapter designed for your application, don’t hesitate to contact us.

View Product

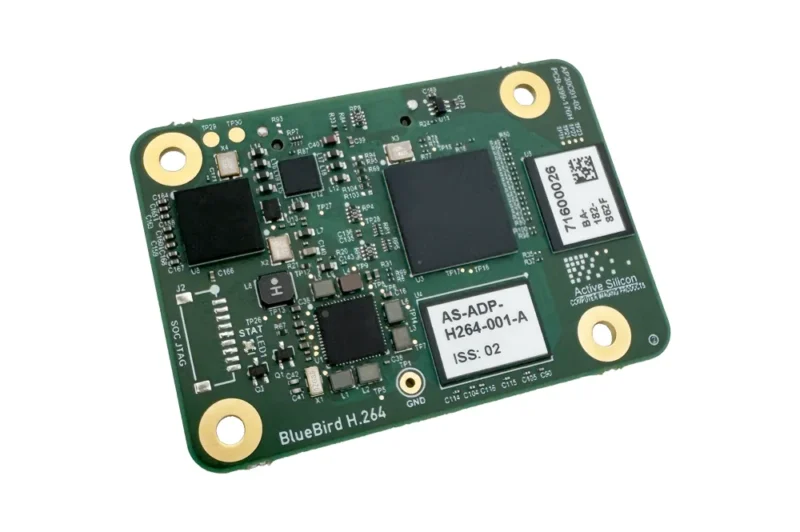

BlueBird SDI - H.264 IP Adapter product photo

BlueBird SDI – H.264 IP Adapter

Part Number: AS-ADP-H264-001-A

The BlueBird SDI – H.264 IP Adapter is a compact interface solution from Active Silicon’s BlueBird series of video adapters. It converts a 3G/HD-SDI video signal into a low-latency ONVIF compatible Ethernet/IP output.

View Product
Product image - BlueBird SDI Adapter board

BlueBird SDI Adapter

Part Number: AS-ADP-SDI-001-A

The BlueBird SDI Adapter is designed for format conversion of 3G-SDI, HD-SDI and HD-VLC video streams. Three output formats are supported: 3G-SDI / HD-SDI or HD-VLC output (via BNC), HDMI output, and SuperSpeed USB Type-C output providing USB Video Class (UVC) v1.1 compliant video streaming. The BlueBird SDI Adapter is also available as an enclosed version.

View Product
Product image - BlueBird SDI Adapter enclosed version

BlueBird SDI Adapter – Enclosed Version

Part Number: AS-ADP-SDI-001-A-ENC-A

The housed BlueBird SDI Adapter is designed for format conversion of 3G-SDI, HD-SDI and HD-VLC video streams and operates as a USB/HDMI/SDI converter and external frame grabber for video streaming and video capture. Three output formats are supported: 3G-SDI/HD-SDI/HD-VLC output (via BNC), HDMI output, and SuperSpeed USB Type-C output providing USB Video Class (UVC) video streaming.

View Product
Product image - BlueBird Analog - SDI Adapter, video adapter, video converter

BlueBird Analog – SDI Adapter

Part Number: AS-ADP-AHD-001-A

The BlueBird Analog – SDI Adapter is a compact interface solution to convert 75Ω single-ended or 100Ω differential analog (AHD/HD-TVI/CVBS) video signals into a low latency HD/SD-SDI output.
