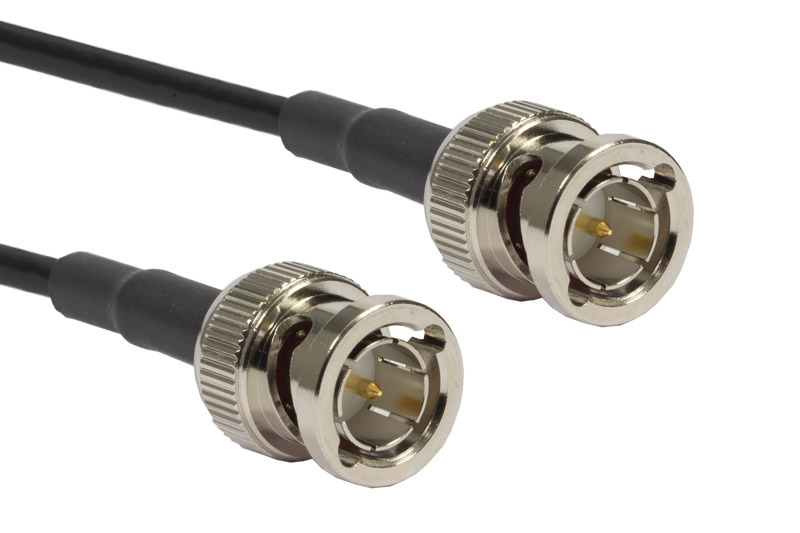

Product image CoaXPress cable, BNC to BNC

Click image to enlarge

CoaXPress cable BNC to BNC

Part Number: AS-CBL-1BB-0001-xM

  • End A = BNC
  • End B = BNC
  • Supports speeds up to 6 Gbps
  • 75 Ohm
  • Available in 3m and 10m lengths
  • Alternative connectors and lengths available
Enquire About This Product
  • Description

  • Product Specs

  • Downloads

  • Ordering Info

Description

Products Specs

Downloads

Ordering Info

CoaXPress cables from Active Silicon are supplied with a variety of connectors. AS-CBL-1BB-0001-xM is a BNC to BNC cable designed to support bidirectional data transfer and is compatible with CXP-6 hardware. Cables of 3m and 10m are available from stock, other lengths are available for higher quantity orders, please contact sales@activesilicon for options.

CoaXPress is an ideal interface for high-quality, high-speed image processing and is used widely in industrial vision systems, medical imaging and aerospace.

Download a table listing all cables available from Active Silicon.

Specification summary

End A

BNC

End B

BNC

Length

3 meters or 10 meters

Speed rating

6 Gbps

Cable type

Belden 1855

Color

Black

Alternatives

Micro-BNC to Micro-BNC

CoaXPress cable, Micro-BNC (HD-BNC) to Micro-BNC (HD-BNC), available in 3m and 10m lengths, 12 Gbps, 75 Ohm. View here.

BNC to Micro-BNC

CoaXPress cable, BNC to Micro-BNC (HD-BNC), available in 3m and 10m lengths, 12 Gbps, 75 Ohm. View here.

DIN to Micro-BNC

CoaXPress cable, DIN to Micro-BNC (HD-BNC), available in 3m and 10m lengths, 6 Gbps, 75 Ohm. View here.

Download File Type File Size

CAD Drawings & Data

Mechanical Overview pdf 215.33 KB

Other Downloads

Cables available at Active Silicon pdf 113.71 KB

Ordering Information

Part number Description

AS-CBL-1BB-0001-3M

CoaXPress cable, single BNC to BNC, 6 Gbps, 75 Ohm, black, 3 meters

AS-CBL-1BB-0001-10M

CoaXPress cable, single BNC to BNC, 6 Gbps, 75 Ohm, black, 10 meters
