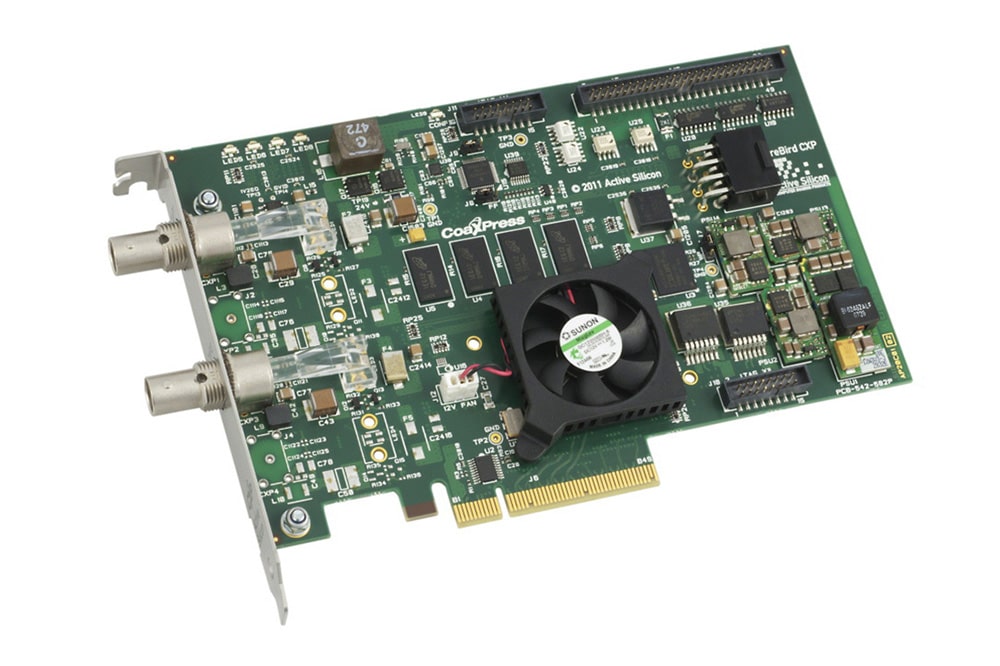

FireBird CoaXPress Frame Grabber (Dual CXP-6)

Click image to enlarge

FireBird CoaXPress Frame Grabber (Dual CXP-6)

Part Number: AS-FBD-2XCXP6-2PE8

  • Dual input CoaXPress Frame Grabber.
  • Two CoaXPress links, each at 6.25 Gbps.
  • RISC based ActiveDMA engine gives acquisition with zero CPU usage.
  • 8-lane Gen2 PCI Express interface.
  • Half-length PC format.
  • Windows and Linux support (32-bit & 64-bit).
  • Certified compliant through the JIIA CoaXPress Product Certification Program.
  • Full GenICam support via GenTL Producer.
Enquire About This Product
  • Description

  • Product Specs

  • Downloads

  • Other Information

Description

Products Specs

Downloads

Other Information

The FireBird Dual CXP-6 frame grabber is a member of Active Silicon’s state-of-the-art FireBird frame grabber family.

FireBird is designed for ultimate performance using Active Silicon’s proprietary DMA Engine technology, “ActiveDMA”. This technical innovation applies RISC based processor techniques and guarantees zero CPU intervention, high-speed and low-latency image data transfers.

CoaXPress is a leading transmission standard for high-speed imaging in professional and industrial applications. Each CoaXPress link supports up to 6.25 Gbps data rates, along with device power up to 13W and device control at 20 Mbps all on a single coax cable. For faster devices, the links can be concatenated to provide multiples of the single coax bandwidth. Very long cable lengths are supported up to 40m at 6.25 Gbps and over 100m at 3.125 Gbps using Belden 1694A cable – or even longer lengths using thicker cables. Active Silicon is one of the primary authors of the CoaXPress international standard, which is hosted by the JIIA (Japan Industrial Imaging Association). All our CoaXPress products are certified compliant to the specification through the JIIA CoaXPress Product Certification Program.

FireBird is supported by Active Silicon’s software development kit, ActiveSDK. This is available as a separate item, and allows rapid system development and integration. It provides comprehensive example applications and optimized libraries, and supports a variety of operating systems via a common API, including Windows, Linux (64-bit) and QNX. Drivers for third party applications are also available such as Cognex VisionPro, HALCON, Common Vision Blox, StreamPix, LabVIEW etc. Full GenICam support is included in the drivers and this includes a GenTL Producer for data streaming as well as register accesses. In addition to functions that control the hardware, the libraries include general purpose functions for the manipulation and display of images. A separate datasheet describes the SDK in detail.

Specification summary

CoaXPress Interface:

Two BNC connectors provide two links each operating up to 6.25 Gbps, and each providing up to 13W of power via Power over CoaXPress (PoCXP). These can support two individual cameras, or one camera requiring two links.

LEDs built into each BNC show the link status according to the CoaXPress specification.

Buffer Memory:

512 MBytes of DDR3 memory is fitted for buffering between the CoaXPress interface and the PCI Express bus.

PCI Express:

8-lane Gen2 interface to support up to 40 Gbps transfer from FireBird to the PC.

I/O:

The following I/O lines are provided for triggers, shaft encoders, exposure control
and general I/O:

  • 4 opto-isolated inputs.
  • 4 opto-isolated outputs.
  • 4 TTL inputs, 5V tolerant.
  • 4 TTL outputs, 5V logic.
  • 4 RS-422 inputs.
  • 4 RS-422 outputs.

All these I/O signals are provided on a 50-way header on the FireBird board.

Power Input:

An 8-way PCI Express Graphics (PEG) connector is provided to connect to a 6- or 8-way PEG connector from the PC power supply. This is only needed for PoCXP.

Fan Controller:

The fan speed is linked to the temperature of the FPGA die for optimum cooling and noise level.

Conformance

PCI Express Interface:

PCI Express bus eight lane Gen2 interface to Specification Revision 2.0, with a max payload size of 512 bytes.
FireBird Dual CXP-6 supports both Short (32-bit) and Long (64-bit) Address packets. It also generates Posted Writes for image data, thus achieving transfer rates in excess of 3.4 GBytes/sec, subject to host performance. The board requires 16 MBytes of address space.

CoaXPress:

FireBird Dual CXP-6 conforms to v1.11 of the CoaXPress specification.

Approvals:

EU

  • CE-mark for compliance with EMC EN 55022:2010 (class A) and EN 55024:2010 in accordance with EU directive 2014/30/EU.
  • RoHS compliance to RoHS3 directive 2015/863/EU.

USA

  • EMC FCC Class A.

The printed circuit board is manufactured by UL recognized manufacturers and has a flammability rating of 94-V0.

Physical and environmental details

Dimensions:

PCB: 168mm by 111mm.
Overall: 187mm by 111mm.

Approximate Weight:

162g.

Power Consumption (typical):

+3.3V
400mA

+12V
900mA

+12V PEG Connector
Up to 34W for PoCXP

(Measured while acquiring from 2CXP-6 links)

Storage Temperature:

-15°C to +70°C.

Operating Temperature:

0 °C to +70°C (ambient environment).

Relative Humidity:

10% to 90% non-condensing (operating and storage).

Ordering Information

Part number Description

AS-FBD-2XCXP6-2PE8

FireBird Dual CXP-6 frame grabber.

AS-ACTIVESDK-xxx

Software Development Kit for xxx operating system. For a full list of all supported operating systems please refer to the ActiveSDK datasheet, or contact your distributor.

AS-CBL-1BB-0010-xM

BNC to BNC cable x metres in length for use with CoaXPress video sources. Made from Belden 1855A cable rated to CXP-6.

Standard stock lengths are 1m, 3m, 5m, 10m and 20m.

High-flex rating and longer length cables also available – contact your distributor for details.

AS-CBL-1BD-0001-xM

As above, but BNC to DIN1.0/2.3.

AS-CBL-1BM-0010-xM

As above, but BNC to Micro-BNC cable and made from Belden 4855R cable rated to CXP-12.

Download File Type File Size

Datasheet

FireBird CoaXPress Frame Grabber (Dual CXP-6) pdf 245.52 KB

CAD Drawings & Data

3D CAD Model (STEP format zipped) zip 3.80 MB
Mechanical Overview pdf 258.19 KB
