Harrier 10x AF-Zoom Camera with Global Shutter

Part Number: AS-CAM-10LGHD-A
Product image - Harrier 10x AF-Zoom Camera with global shutter

Features

  • Full HD high-resolution autofocus-zoom camera.
  • 1/3.1-type 3MP Sony IMX900-AQR-C CMOS sensor (global shutter).
  • Output: LVDS, CVBS.
  • Video formats (HD): 1080p – 60/50/30/25 fps, 720p – 60/50/30/25 fps.
  • 10x Optical Zoom & 32x Digital Zoom.
  • Effective number of pixels approx. 3,200,000.
  • Shutter speed 1/30(25) – 1/40,000 sec.
  • Dimensions (L x W x H): 60 x 43.6 x 47mm.
  • Serial VISCA, Pelco – D/P Control Protocol.
  • Compatible with Active Silicon’s Harrier camera interface boards.
  • Pre-assembled camera solutions available (USB/HDMI and Ethernet IP).

The very compact Harrier 10x Autofocus-Zoom (AF-Zoom) Camera GS offers real-time full HD video output and a Day & Night zoom lens with 10x optical zoom (32x digital zoom). A 3MP Sony global shutter CMOS sensor allows the capture of moving objects without the distortion that can occur with rolling shutters.

The camera provides LVDS and analog CVBS video. Serial VISCA or Pelco-D/P Control Protocol is available to control the camera.

The features include Day & Night mode (ICR functionality), 2D+3D Digital Noise Reduction and Defog Function, which make this global shutter block camera especially suitable for low-light scenarios and challenging environments.  The camera also supports Digital Image Stabilization, Intelligent Motion Detection and Privacy Mask Function, as well as High/Back Light Compensation (HLC/BLC). External trigger and strobe out functions are available.

The Harrier 10x AF-Zoom Camera GS is compatible with Harrier camera interface boards, which convert the camera LVDS output to USB 3 (UVC) and HDMI or Ethernet IP. For more information, contact our team.

Camera Specification

Image sensor

1/3.1-type Sony IMX900-AQR-C CMOS sensor, Pregius S (global shutter)
Total no. of pixels

Approx. 3.280,000 pixels
Effective no. of pixels

Approx. 3.200,000 pixels
Shutter Type:

Global shutter
Sync. System

Internal
Video format (HD)

1080p/60/50/30/25 fps, 720p/60/50/30/25 fps
Analog resolution

CVBS PAL/NTSC
Minimum illumination

Color(1/30s, 48dB) : 0.1 lux, BW(1/30s, 48dB) : 0.01 lux
Color DSS(1/1s, 48dB) : 0.01 lux , BW DSS(1/1s, 48dB) : 0.001 lux
Video output

Digital: LVDS
Analog: CVBS
S/N ratio

Signal-to-Noise Ratio more than 50dB (AGC off)
Lens (wide to tele)

10x Day & Night Zoom Lens
Optical x10 Zoom, Digital x32 Zoom
Focal length: f=4.7mm to 47.0mm
Aperture ratio: F1.7 (wide) to F3.1 (tele)
Viewing angle (FOV)
FOV D H V
Wide 53.95° 47.84° 28.02°
Tele 6.96° 6.07° 3.41°
Control protocol

Serial VISCA
Pelco-D / Pelco-P

ID: 1 ~ 255
Baud rate

2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps

Camera Functions

Trigger mode

Free run / Ext-trigger
Trigger polarity

Active Low / Active High
Trigger delay

0 ~ 255.9ms
Strobe polarity

Active Low / Active High
Strobe delay

Ext-Trigger: 0 ~ 255.9ms / Free run: 0 ~ (1V period – Width)ms
Strobe width

Ext-Trigger: 0 ~ 255.9ms / Free run: 0 ~ (1V period – Delay)ms
Functions Ext-trigger

Shutter Speed: 1/30(25) ~ 1/40,000 sec
AGC: 0 ~ 10 steps
Iris: Close ~ F1.7
Day&Night: Day / Night
Focus Mode

Auto / One Push / Manual
Distance (m)

1.0 / 2.0 / 3.0 / 5.0 / 10.0 m
Zoom Speed

0 (Slow) ~ 7 (Fast)
Lens Refresh

One Push / 1day ~ 10days
D.Zoom

Off / MAX 2x ~ 32x
Zoom Preset

5 preset
Exposure Mode

Auto / Iris Priority / Shutter Priority / Manual
AGC (Automatic gain control)

0 ~ 10 steps
Shutter speed

1/1 ~ 1/40,000 sec
Iris

Close ~ F16
DSS (Digital Slow Shutter)

Off / 2x / 4x / 8x / 16x / 32x (/64x: 60 or 50fps mode only)
Flickerless

Off / On
Brightness

0 ~ 14 steps
High/Back Light Compensation (HLC/BLC)

Off / BLC / HLC
Day & Night

Auto / Day / Night / Ext-in
Night Function Set

Off / On
White Balance Mode

Auto / One Push / Manual / Indoor / Outdoor / Auto-Extended
White Balance

Red Gain: 0 ~ 100 steps (Manual mode only)
Blue Gain: 0 ~ 100 steps (Manual mode only)
Chroma: 0 ~ 20 steps
Hue: 0 ~ 20 steps
Digital Noise Reduction (DNR)

2D/3D, 2D+3D (Level : 0 ~ 15 steps)
Mirror

Off / H / V / H&V
Sharpness

0 ~ 15 steps
Contrast

0 ~ 20 steps
Image Bright

0 ~ 20 steps
DWDR

Off / Manual / Auto [Digital Wide Dynamic Range]
Defog

Off / Manual / Auto
Freeze

Off / On
Gamma

0.35 ~ 0.70
Privacy mask

Off / On (8 masks)
Motion detection

Off / On (4 regions)
Digital Image Stabilization (DIS)

Off / On
Defect detection

Off / On

General

Power requirement

9 – 15V DC
Power consumption

420mA (@ 12VDC)
Operating temperature

-10°C to +50°C
Storage temperature

-20°C to +60°C
Operating humidity

0% to 90% (no condensation)
Dimensions (L x W x H)

66 x 43.6 x 47mm (L x W x H)
Weight

165g
Download File Type File Size

Datasheets

 Datasheet Harrier 10x AF-Zoom Camera Global Shutter pdf 348.75 KB

Manuals & Quick Start Guides

 Technical Reference Manual - Harrier 10x AF-Zoom Camera v1.01 pdf 6.35 MB

Software

 HarrierControl Camera Software v.1.4.2 zip 15.21 MB

CAD Drawings & Data

 3D CAD Model (zipped STEP file) zip 1.49 MB

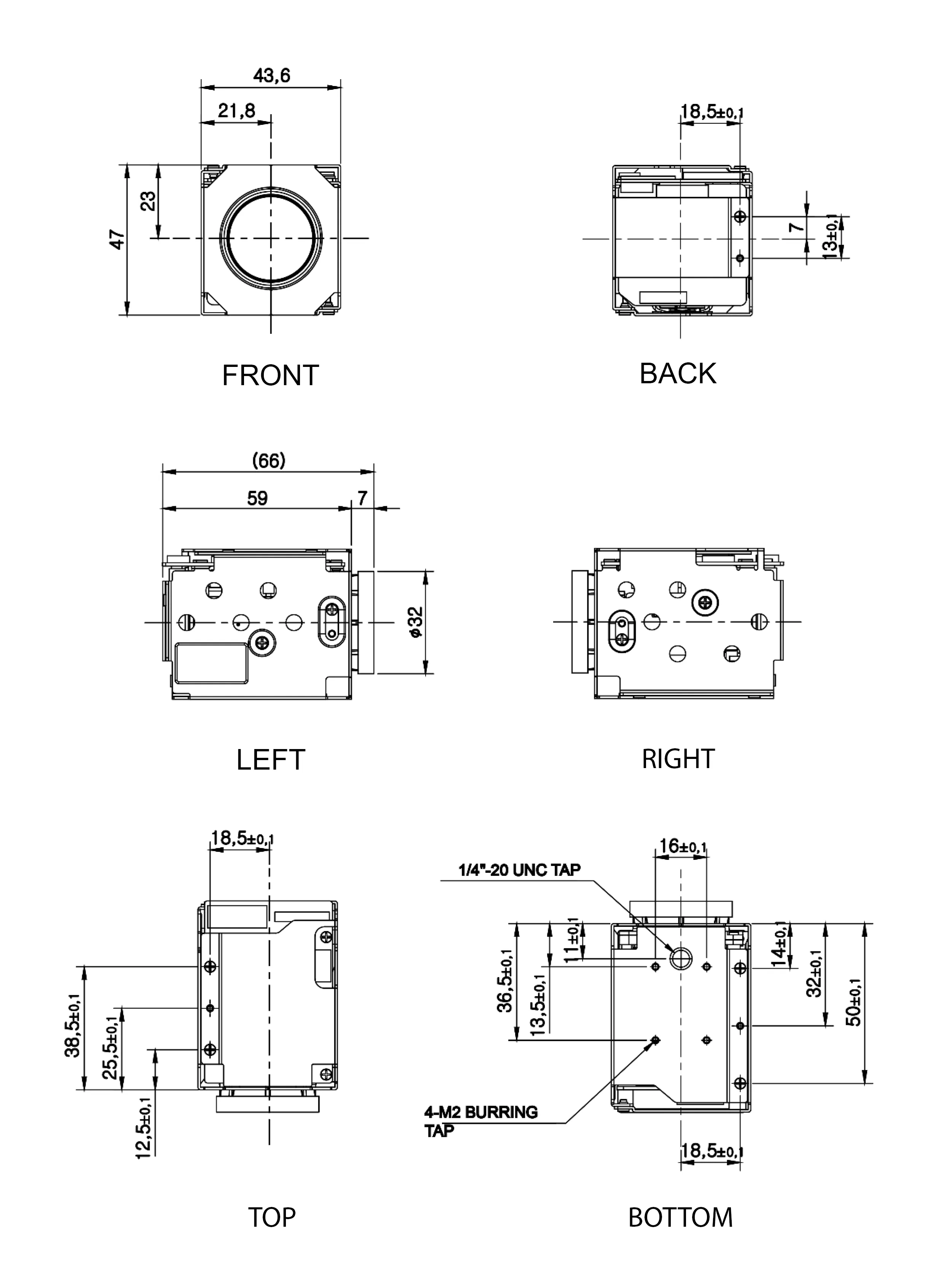

Dimensions Harrier 10x AF-Zoom Camera GS webp 118.87 KB

Other Downloads

 Brochure - Cameras for drones, UAVs and gimbals pdf 1.51 MB
Part number Description
AS-CAM-10LGHD-A

Harrier 10x AF-Zoom Camera with global shutter (LVDS/CVBS).
AS-CIB-USBHDMI-002-10LGHD-A

Harrier 10x AF-Zoom USB/HDMI Camera with global shutter.
AS-CIB-USBHDMI-002-A

Harrier USB/HDMI Camera Interface Board. Board only, no cables included.
AS-CIB-IP-00x-10LGHD-A

Harrier 10x AF-Zoom IP Camera with global shutter; four variants incl. wireless and PoE options available (x in part number = 1, 2, 3 or 4; see interface system info below)
AS-CIB-IP-00x-A

Harrier IP camera interface system. (x=1, 2, 3 or 4, see below)
Contains:
001: AS-CIB-IP-SOC-001-A (SoC board), AS-CIB-IP-IFETH-001-A (Ethernet Connection Board), FFC cable
002: AS-CIB-IP-SOC-002-A (SoC board with Wi-Fi), AS-CIB-IP-IFETH-001-A (Ethernet Connection Board), FFC cable
003: AS-CIB-IP-SOC-001-A (SoC board), AS-CIB-IP-IFPOE-001-A (PoE Connection Board), FFC cable
004: AS-CIB-IP-SOC-002-A (SoC board with Wi-Fi), AS-CIB-IP-IFPOE-001-A (PoE Connection Board), FFC cable
AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-005-C).
AS-CIB-USL30-50MM

30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C).
