Software

HarrierControl Camera Software

Features

Delivers easy VISCA communication over TTL, RS-232, RS-485, COM ports and USB.

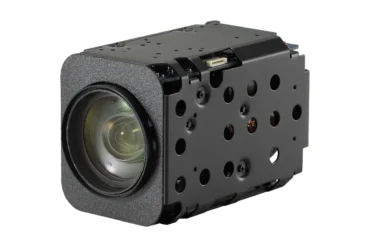

Supports Harrier/Oriole/Tamron/Sony AF-zoom cameras.
Supports Harrier camera interface boards.
Intuitive GUI interface tool with common camera/interface board controls.
Command line interface tool with optional interactive text based menu system.
Enables custom camera support configuration for the Harrier USB/HDMI Camera Interface Board.

Enquire About This Product

The HarrierControl Camera Software is a Windows 10 test/evaluation tool suite that enables VISCA communication with Harrier camera interface boards and Harrier/Oriole/Tamron/Sony-FCB-EV-series cameras. From version 1.4.2 a graphical user interface version of HarrierControl (HC_GUI.exe) has been added to the suite; the command line version is still included.

When used with the Harrier Evaluation Board both tools can send and receive VISCA communications over TTL/RS-232/RS-485. In addition, they can support VISCA communication over standard COM ports, including the Harrier USB/virtual COM port interface. The command line version has two modes of operation, single VISCA command line mode (this sends a single VISCA command/inquiry and receives the response) or interactive mode (where users can select the operation required using a simple text based menu system).

The HarrierControl Camera Software can also be used to configure the custom camera support on the Harrier USB/HDMI Camera Interface Board over the USB connection.
