product image M12 lenses for 1/3” sensor board cameras

Click image to enlarge

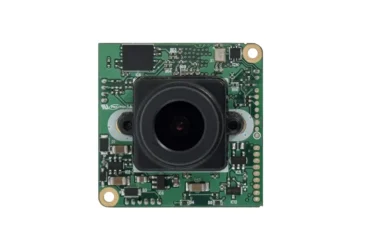

M12 lenses for the Oriole HD-SDI Board Camera

Part Number: AS-LS-M12-021-F20-A, AS-LS-M12-025-F23-A, AS-LS-M12-028-F20-A, AS-LS-M12-036-F20-A, AS-LS-M12-060-F20-A, AS-LS-M12-080-F25-A, AS-LS-M12-100-F25-A, AS-LS-M12-250-F20-A, AS-LS-M12-350-F18-A, AS-LS-M12-500-F28-A

  • M12 lenses for board-level cameras
  • Focal lengths ranging from 2.1mm to 50mm
  • Suitable for the Oriole HD-SDI Board Camera
  • Suitable for similar embedded cameras with M12 lens mount



Enquire About This Product
  • Description

  • Downloads

  • Ordering Info

Description

Downloads

Ordering Info

Find the best M12 board camera lens for your imaging application. We offer a selection of lenses with focal lengths ranging from 2.1mm up to 50mm. These lenses are suitable for the Oriole HD-SDI Board Camera and similar embedded cameras with M12 lens mount.

Available lenses:

Lenses with the following focal lengths: 2.1mm, 2.5mm, 2.8mm, 3.6mm, 6mm, 8mm, 10mm, 25mm, 35mm and 50mm.

See download tab for datasheets with a detailed description of each lens.
Contact our team for more information and about ordering lenses.

Cable assembly

Connectors

Both ends: USL00-30L – KEL USL series, 0.4 pitch, insulation-displacement connector (IDC), horizontal.

A->B connection: Pin 1->Pin 30

Cable

AWG#42 micro coaxial cable; various lengths available, see order information

Connector specifications

Pitch

0.4mm

Number of contacts

30

Mating width/length/height

width: 5.6mm
length: 0.5mm
height: 1.0mm

Current rating

0.25A

Contact resistance

100 mΩ max

Type

Receptacle (female), horizontal

RoHS

Compliant

Operating temberature range

-40 to +85°C

Ordering Information

Part number Description

AS-LS-M12-021-F20-A

M12 lens 2.1mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 1/3″ sensors; focal length: 2.1mm; aperture: F2.0; resolution: 3MP; Datasheet

AS-LS-M12-025-F23-A

M12 lens 2.5mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 1/3″ sensors; focal length: 2.5mm; aperture: F2.3; resolution: 2MP; Datasheet

AS-LS-M12-028-F20-A

M12 lens 2.8mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 1/2.7″ sensors; focal length: 2.8mm; aperture: F2.0; resolution: 3MP; Datasheet

AS-LS-M12-036-F20-A

M12 lens 3.6mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 1/2.7″ sensors; focal length: 3.6mm; aperture: F2.0; resolution: 3MP; Datasheet

AS-LS-M12-060-F20-A

M12 lens 6mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 1/3″ sensors; focal length: 6mm; aperture: F2.0; resolution: 3MP; Datasheet

AS-LS-M12-080-F25-A

M12 lens 8mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 1/3″ sensors; focal length: 8mm; aperture: F2.5; resolution: 2MP; Datasheet

AS-LS-M12-100-F25-A

M12 lens 10mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 1/1.8″ sensors; focal length: 10mm; aperture: F2.5; resolution: 8MP; Datasheet

AS-LS-M12-250-F20-A

M12 lens 25mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 1/2″ sensors; focal length: 25mm; aperture: F2.0; resolution: 2MP; Datasheet

AS-LS-M12-350-F18-A

M12 lens 35mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 2/3″ sensors; focal length: 35mm; aperture: F1.8; resolution: 5MP; Datasheet

AS-LS-M12-500-F28-A

M12 lens 50mm for the Oriole HD-SDI Board Camera (and similar cameras).
For up to 2/3″ sensors; focal length: 50mm; aperture: F2.8; resolution: 5MP; Datasheet
