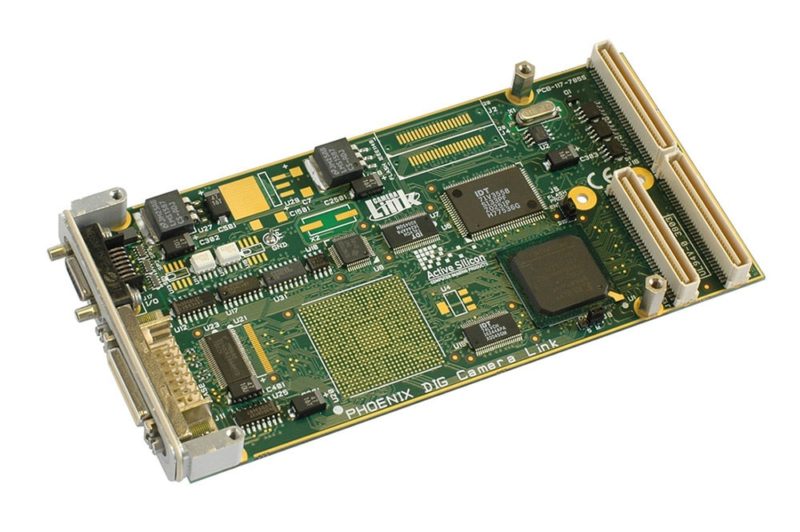

Phoenix PMC Camera Link Frame Grabber
Part Number: AS-PHX-D24CL-PMC32-B
- Base Camera Link Configuration.
- PMC form factor (IEEE P1386.1 standard).
- 32-bit 33 MHz PCI support in 3.3V & 5V signalling environments.
- Maximum PCI burst rate of 133 Mbytes/sec.
- Supports digital areascan / linescan cameras.
- multi-tap & multi-channel camera formats, incl. line and pixel interleaved.
- Maximum pixel clock of 40 MHz.
- Extended temperature operation.
- PHX SDK supports various operating systems
- v2.2 PCI and v1.1 Camera Link compliant.
- Bus mastering hardware control with zero CPU.
- Serial port with EIA-644 signalling.
- Supports Camera Link serial comms API.
- Implements Data Valid (DVAL).
- Opto-Isolated, TTL and RS-422 I/O.
- Software configurable FPGA technology.
This product is now end-of-life. Please contact sales for remaining stock and alternative products.
Phoenix-Dig24CL is a PCI board for the acquisition of digital data from a variety of Camera Link sources, including digital frame capture and linescan cameras. It supports all the formats of Base configuration, i.e. single 8- to 16-bit data, through 8-bit RGB, to dual tap 12-bit sources.
Phoenix-Dig24CL also supports various camera tap formats, such as line interlaced – adjacent lines are output simultaneously; line offset – lines are output from different parts of the CCD simultaneously; pixel interlaced – adjacent pixels on the same line are output simultaneously; and pixel offset – pixels are output from different parts of the same line simultaneously.
ROI and sub-sampling controls are used to increase application processing speed by only storing the required data. In addition the LUT functionality provides support for gamma correction, dynamic range cropping and binary thresholding in real time. The DataMapper further reduces the load on the host processor by mapping and packing the acquired data prior to transfer across the PCI bus. For example, the acquired data can be mapped into a suitable format and transferred directly to the graphics display, without the need for any host processing.
The PCI interface comprises intelligent scatter-gather hardware which reads its instructions direct from memory without any host CPU intervention. This in turn controls the DMA engine, which transfers the packed video data into any target memory which can be reached from the PCI bus. This can be system memory, graphics memory, or even other devices on the same or other PCI busses, such as DSP cards, etc.
The majority of the functionality is implemented in a single FPGA (Field Programmable Gate Array) providing a flexible solution for interfacing to Camera Link compliant sources. The FPGA implements the PCI interface, hardware scatter-gather control, PCI Initiator Burst Control (DMA), Acquisition Control, Region of Interest (ROI) and sub-sampling control, DataMapping functions, Datapath FIFOs, and Counter/Timer support. In addition the board contains Look Up Table (LUT) functionality, a Universal Asynchronous Receiver Transmitter (UART), 4-bit opto-isolated I/O, two 2-bit differential input ports and two 8-bit TTL I/O ports.
The PHX Software Development Kit (SDK), available as a separate item, allows rapid system development and integration. It provides comprehensive example applications and optimized libraries, and is available for a variety of operating systems via a common API, including 32-bit Windows, QNX and Linux. Drivers for third party applications are also available, e.g. Common Vision Blox. As well as functions that control the hardware, the libraries include general purpose functions for the manipulation and display of images. A separate datasheet describes the SDK in detail.
|Download||File Type||File Size|
|Datasheet Phoenix PMC Camera Link Frame Grabber||564.00 KB|
|Datasheet PHX SDK||221.46 KB|
CAD Drawings & Data
|3D CAD Model (STEP format zipped)||zip||4.28 MB|
|Mechanical Overview||184.19 KB|
