Semiconductor Inspection: Meeting the Demands of Modern Chip Manufacturing
A defect smaller than a human hair can determine whether a semiconductor device succeeds or fails. As chip geometries continue to shrink and production volumes increase, inspection systems are under growing pressure to detect the smallest defects at the highest possible speeds.
Automated Optical Inspection (AOI) has become a critical technology throughout semiconductor manufacturing. AOI systems use high-resolution cameras, advanced lighting and sophisticated image processing algorithms to identify defects that would be impossible to detect reliably through manual inspection.
How AOI Works in Semiconductor Inspection
A semiconductor AOI system combines several technologies to inspect wafers, lithography masks, dies and packaged devices for defects at different stages of production.
The process begins with carefully designed illumination, which is often just as important as the camera itself. You can read about the different lighting techniques, and what they are best for, in our resource: A Practical Guide for Engineers Getting Started with CoaXPress.

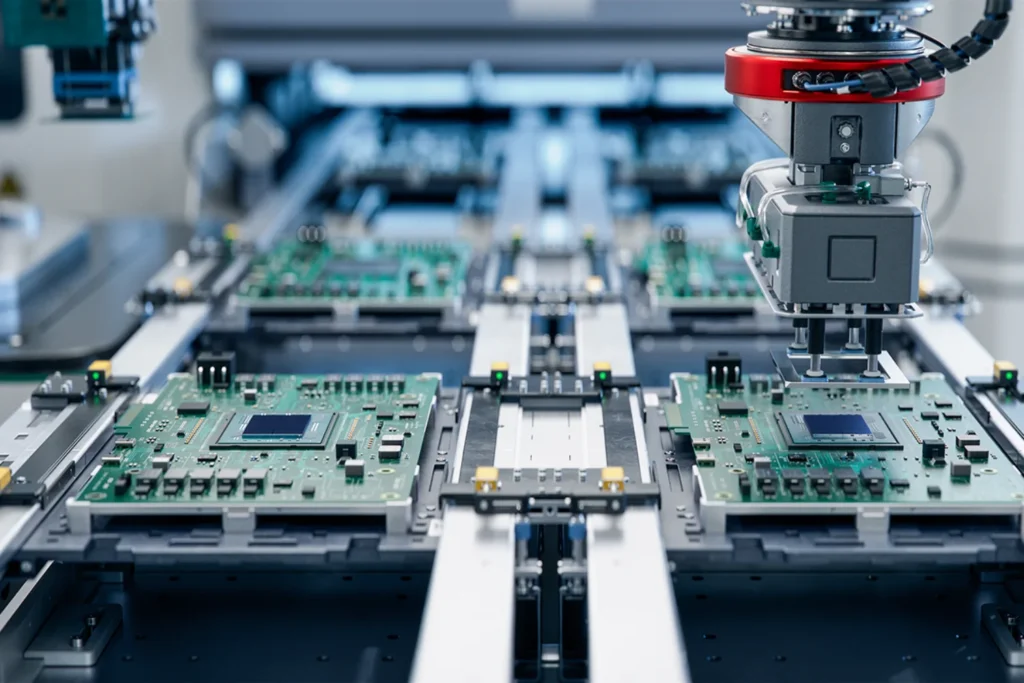

High-resolution industrial cameras capture images of the device under test, while wafers or components are moved through the inspection area with micron-level accuracy. The acquired images are then processed using machine vision software and, increasingly, AI-powered algorithms that compare the captured data against design rules, reference images or trained defect models.
To achieve consistent and repeatable results, the entire system must be synchronized, from lighting and camera triggering to stage movement and image processing. This is where robust image acquisition hardware becomes essential. A high-performance frame grabber ensures that large volumes of image data are transferred reliably and in real time, while providing the precise timing and synchronization required for accurate inspection.
The Growing Challenge of Semiconductor Inspection
Semiconductor production presents several challenges for machine vision engineers.
- Image resolution requirements continue to increase. As chips become smaller, inspection systems need to capture more detail while maintaining high throughput. This often means working with high megapixel cameras operating at very high frame rates.
- Manufacturers must inspect larger volumes of devices without compromising accuracy. Missing a defect can lead to costly downstream failures, while false positives can reduce yield and increase production costs.
- Inspection systems frequently incorporate multiple cameras to capture different views, wavelengths or inspection stages simultaneously. Synchronizing these cameras and managing the resulting data streams places significant demands on the vision system architecture.
The result is a common challenge: how do you move, process and analyze enormous quantities of image data in real time without creating bottlenecks?
Why the Frame Grabber Matters
While cameras and software often receive the most attention, the frame grabber plays a crucial role in the performance of an AOI system.
A high-performance frame grabber acts as the bridge between the camera and the processing platform, ensuring that image data is transferred reliably and with minimal latency. In semiconductor inspection applications, where every frame may contain critical information, dropped images or inconsistent timing are simply not acceptable.
Modern frame grabbers also provide:
- Deterministic triggering
- Precise synchronization
- Efficient data transfer to system memory or GPU resources.
These enable inspection algorithms to operate at full speed while maintaining image integrity. Active Silicon’s FireBird frame grabbers are designed specifically for demanding machine vision applications, providing high-speed image acquisition with low-latency transfers and support for GPU-based processing.
CoaXPress Frame Grabbers for High-Speed AOI
For many semiconductor inspection systems, CoaXPress (CXP) has become the preferred camera interface thanks to its combination of high bandwidth, long cable lengths and robust industrial performance.
Active Silicon’s FireBird CXP-12 frame grabbers support data rates of up to 12.5 Gbps per connection and can scale to support multiple high-speed cameras within a single system. Designed around PCIe Gen3 architectures and ActiveDMA technology, these boards deliver high-speed image transfers with no CPU overhead, helping inspection systems maintain real-time performance even when processing large volumes of image data.
This makes them particularly well suited to wafer inspection, defect review and other AOI applications where both speed and image quality are critical.
CoaXPress over Fiber for Long-Distance Inspection Systems
Some semiconductor manufacturing environments require cameras and processing systems to be separated by significant distances. In these situations, standard copper-based connections may become impractical.
The FireBird CoaXPress over Fiber (COF) frame grabber addresses this challenge by supporting image acquisition at rates of up to 40 Gbps while enabling fiber optic cable runs over distances of several kilometers. This provides greater system flexibility, electromagnetic immunity and easier integration across large manufacturing facilities.
Building Reliable AOI Systems for the Future
As semiconductor manufacturing continues to evolve, inspection systems must deliver higher resolution, faster throughput and greater reliability than ever before.
By combining advanced cameras, powerful processing platforms and high-performance frame grabbers, machine vision engineers can build AOI solutions capable of keeping pace with industry demands. Whether deploying high-bandwidth CoaXPress systems or long-distance CoaXPress over Fiber architectures, the right frame grabber helps ensure that critical inspection data reaches the processing pipeline quickly, reliably and without compromise.
Find out more about our frame grabbers. which are expertly designed specifically for adding speed and accuracy to vision systems.
