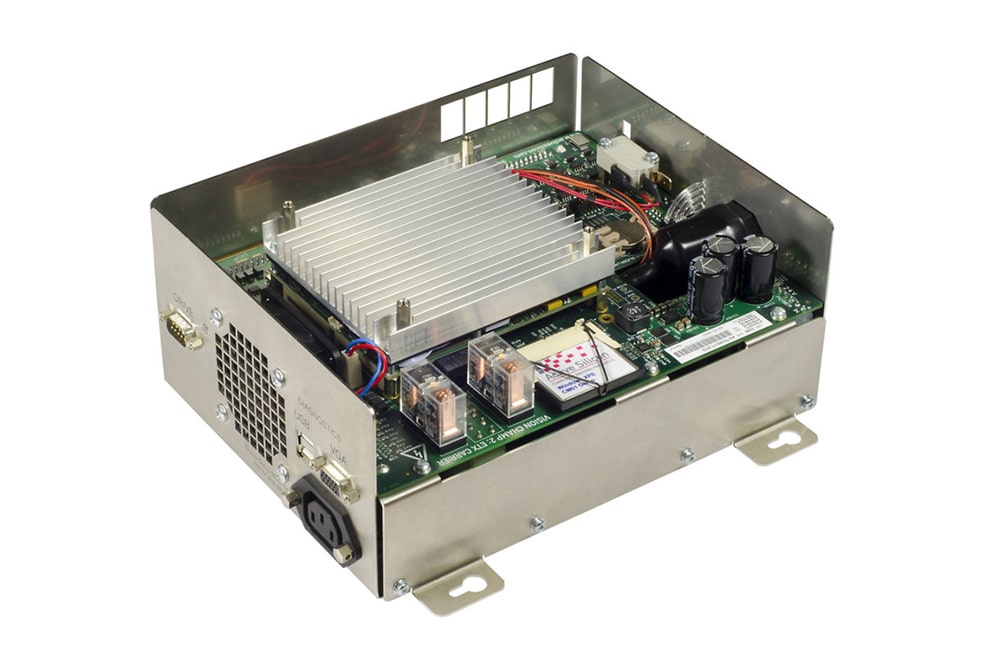

ETX Embedded System – TC06

Part Number: AS-TC06-ETX-SYS-A

  • ETX processor module (low power Intel Celeron).
  • Internal CompactFlash drive.
  • 1 x VGA output.
  • 2 x USB2.
  • 1 x GigE network port.
  • 1 x RS-232.
  • 1 x RS-485 Motor Controller.
  • Quadrature phase encoder input.
  • 10 x Solenoid drive outputs.
  • Analog image capture with strobe/lighting control.
  • Keyswitch Service Override.
  • 120/240 VAC operation.
  • EN60950 / UL950 certified.

The TC06 Embedded System has been designed for a specific automation application in relative high volumes (500/year) and with a five to ten year service life.

All the electronic controller requirements and computer I/O functionality have been integrated onto a single PCB which, via the ETX mezzanine standard, also takes standard Intel processor modules. Having the processor as a replaceable module provides a smooth transition to newer processors as older models inevitably become obsolete.  The system runs Linux with all the application software developed in-house.

If you have a requirement for an embedded system with high reliability and long product life, please contact us for further details.
