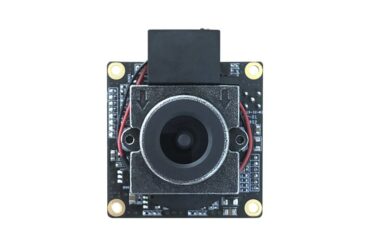

Oriole global shutter board camera with SDI video output, global shutter Sony sensor and 3x autofocus-zoom lens - product photo

Click image to enlarge

Oriole 3x AF-Zoom HD-SDI Board Camera with Global Shutter

Part Number: AS-BCAM-3SG42-00-A

  • Full HD autofocus-zoom camera.
  • 1/1.8″ type Global Shutter Pregius IMX265LQR sensor.
  • Output: HD-SDI, EX-SDI, CVBS
  • 1080p – 60/50/30/25 fps, 720p – 60/50/30/25 fps.
  • Optical zoom: 3x, digital zoom: 1x-6x.
  • Zoom triggered one shot/push autofocus.
  • External trigger capability.
  • Privacy Mask Function.
  • High Light Compensation (HLC).
  • Digital Noise Reduction (2D+3D DNR).
  • VISCA and Pelco-D/P Control Protocol.
Enquire About This Product
  • Description

  • Product Specs

  • Downloads

  • Ordering Info

Description

Products Specs

Downloads

Ordering Info

The Oriole 3x AF-Zoom HD-SDI Board Camera with Global Shutter is a 42x42mm 2-board module fitted with a 3x zoom lens. It features a Sony global shutter CMOS sensor that allows superior image quality when capturing moving objects, or when the camera itself is in motion. With a global shutter, motion blur and distortions of fast moving objects in the video can be eliminated.

Full HD real-time HD-SDI, EX-SDI and CVBS video output up to 1080p60 is supported. By default the autofocus-zoom is controlled by the VISCA serial communications protocol, but can also be controlled using the Pelco – D/P protocol.

This global shutter board camera has external trigger capability and offers a range of modern camera features including Digital Noise Reduction (2D+3D), Privacy Mask Function, High Light Compensation, Intelligent Motion Detection, Defog Function, to name a few.

The autofocus-zoom camera is supplied with a pre-fitted 3x zoom lens, but can also be shipped without lens or with another type of lens as required.

If you have any questions, please contact our team or click the enquiry button below.

Camera Specification

Image sensor

1/1.8″ type Global Shutter Pregius IMX265LQR CMOS sensor

Active pixels

Approx. 2,070,000 pixels

Video output

HD-SDI/EX-SDI (MMCX connector), CVBS (header connector)

Video format (HD)

1080p 60/50/30/25fps, 720p 60/50/30/25fps

EX-SDI

Off (HD-SDI) / 270M V1.0 / 135M V2.0

Analog resolution

NTSC/PAL 700TVL

Minimum illumination

Color (1/30s) : 0.3 lux, BW (1/30s) : 0.02 lux
Color DSS(1/7.5s): 0.075ux, BW DSS(1/7.5s): 0.005lux

Lens

12-40mm, 3x optical zoom

Field/Angle of view (FOV)

Wide to tele:
43.3°-14.3° (D)
33.9°-11.5° (H)
25°–8.6° (V)

Focus

AF Mode: Auto / Manual
Scanning: Half / Full
One Shot: On
Sync TDN: Off / On
Lens Reset: On
Refocus: Off / On (Interval Time: 1day – 10 days)

Trigger

Trigger Mode: Free Run / External Trigger
Trigger Input Polarity: Off / On
Strobe Output Polarity: Off / On
Strobe Output Mode: Strobe↲ / D&N
External Trigger Delay: 0 ~ 255 steps (1step = 1ms)
Strobe Delay: 1 ~ 32 steps (30fps): FreeRun Mode, 0 ~ 255 steps: ExtTrig Mode
Strobe Width: 1 ~ 33 steps (30fps): FreeRun Mode, 1 ~ 255 steps: Trigger Mode

Exposure

Lens: DC / Manual
Mode: Auto / Shutter Priority / Manual

Gain control (AGC)

Off / On (Analog 0dB~27dB, Digital 0x~33x)

Brightness

0 – 20 steps

Shutter speed

Auto / Manual 1/30 (1/25) ~ 1/10,000 sec

DSS (Digital Slow Shutter)

Off / x2 / x3/ x4/ x5 / x6/ x7/ x8/ x9/ x10/ x12/ x15

Flickerless

Off / On

BLC

Off / On

Day & Night

Auto / Day / Night / Ext

White balance

Mode: Auto, One Push, Manual, Indoor, Outdoor

Red Gain: 0 ~ 20 steps
Blue Gain: 0 ~ 20 steps
Chroma: 0 ~ 20 steps
Hue: 0 ~ 20 steps

Comms. ID

1 – 255

Control protocol

VISCA, Pelco-D/Pelco-P

Baud rate

2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200

Camera Functions

High Light Compensation (HLC)

Off / On (Level 0 ~ 20 steps)

Digital Noise Reduction

Off / 2D / 3D / 2D+3D (Auto / Low / Mid / High)

Mirror

Off / H / V / H&V

Sharpness

0 – 10 steps

Adaptive Contrast Enhancement (ACE)

Off / Manual (Level 0 ~ 11 steps)

Defog

Off / Manual (Level 0 ~ 11 steps)

Freeze

Off / On

Gamma

0.45 / 0.55 / 0.65 / 0.75

Digital Zoom

Off / On (x1 ~ x6)

Privacy mask

Off / On (24 masks)

Motion detection

Off / On (3 positions)

Digital Image Stabilizer (DIS)

Off / On (Digital Image Stabilizer)

Lens Shading

Off / On

Defect Detection

Off (One Push) / OnOff / On

General

Power requirement

12V DC ± 10%

Power consumption

350mA

Operating temperature / humidity

Temperature: -10°C to +50°C.

Humidity: 0% to 80% (no condensation)

Storage temperature / humidity

Temperature: -20°C to +60°C.

Humidity: 0% to 90% (no condensation)

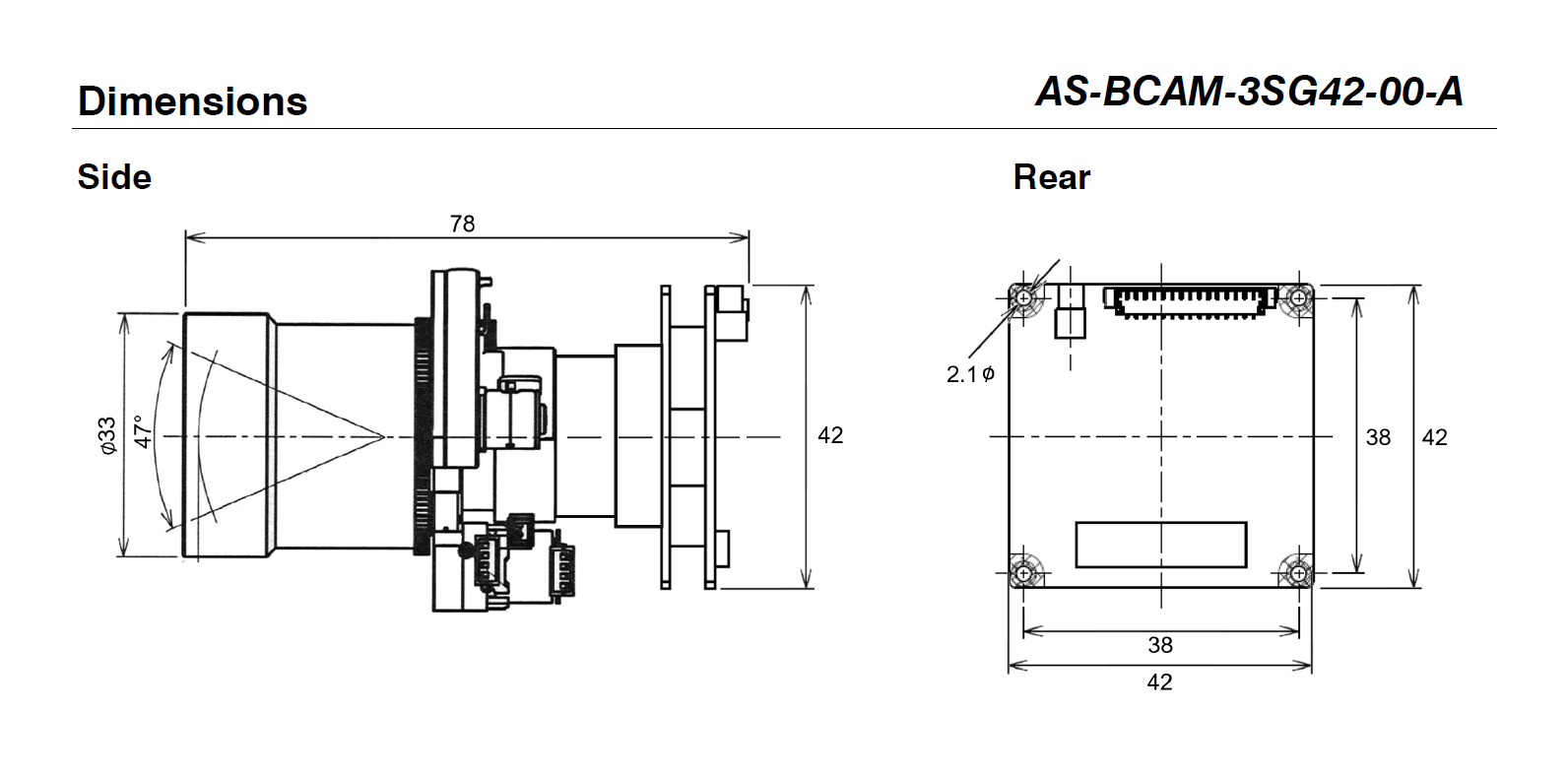

Dimensions (L x W x H)

2-board module: 42x42x15mm

2-board module with lens/lens holder: 78x51x51mm (L x W x H)
(width and height is 2x maximum radius).

Weight

108g

Ordering Information

Part number Description

AS-BCAM-3SG42-00-A

Oriole 3x AF-Zoom HD-SDI Board Camera with global shutter .

AS-BCAM-3SG42-EVAL-A

Evaluation Kit for Oriole 3x AF-Zoom HD-SDI Board Camera with Global Shutter. Includes power supply, 10-way FFC-Molex cable, a MMCX-BNC adapter cable, a USB Type A to mini-USB Type B cable and the Harrier Evaluation Board with PC serial interface (via USB UART).
Not included: Camera.
