Oriole HD-SDI Board Camera
Part Number: AS-BCAM-S32-00-B
Features
- 1/3″ 2MP Nuvoton (Panasonic) MN34422 CMOS sensor.
- Output: HD-SDI/EX-SDI and CVBS.
- 1080p – 30/25 fps, 720p – 60/50/30/25 fps.
- Digital zoom: 2x – 32x.
- Real-time True Wide Dynamic Range (WDR).
- Digital Noise Reduction (2D+3D DNR).
- Digital Image Stabilization.
- High Light Compensation (HLC/BLC).
- VISCA and Pelco-D/P Control Protocol.
- Includes ICR (switchable IR-cut filter).
- 3.6mm Standard M12 lens; other lenses are available.
The Oriole HD-SDI Board Camera is a 32x32mm board camera fitted with a 2MP Sony CMOS sensor. It offers HD-SDI video and comes with an EX-SDI output option that enables the use of longer transmission cables (compared to SDI). The camera supports simultaneous CVBS output and SDI/EX-SDI output.
The board camera offers all modern camera features include Real-Time True WDR, Digital Noise Reduction (2D+3D), Privacy Mask Function, Digital Image Stabilization, High Light Compensation, Intelligent Motion Detection, Defog Function, to name a few. The pre-fitted switchable IR filter (see image) supports the Infrared Cut Filter Removal (ICR) feature and provides good day and night vision.
By default the camera can be controlled by the VISCA serial communications protocol but it can also be controlled using the Pelco – D/P protocol.
A standard M12 lens with a focal length of 3.6mm is included. Lenses with different FOV/focal lengths can be purchased from Active Silicon. If you have any questions, please contact our team or use the enquiry button above.
Camera Specification
| Image sensor | 1/3-type 2.5M Nuvoton (Panasonic) MN34422 CMOS sensor (progressive scan) |
| Active pixels | Approx. 2,300,000 pixels |
| Video output | SDI/EX-SDI (MMCX connector), CVBS (header connector) |
| Video format (HD) | 1080p 30/25fps, 720p 60/50/30/25fps |
| Analog resolution | VBS (without WDR) PAL/NTSC |
| Minimum illumination | Color (1/30s): 0.03 lux , BW (1/30s) : 0.004 lux |
| Lens | M12 (3.6mm focal length standard fit) |
| Gain control (AGC) | Off / On |
| Brightness | 0 – 20 steps |
| Shutter speed | Auto / Manual 1/30 (1/25) ~ 1/30,000 sec |
| DSS | Off / 2x / 4x (/8x : 60 or 50fps mode only) |
| Flickerless | On / Off |
| WDR/BLC | Off / WDR / BLC |
| Digital Zoom | 2x – 32x |
| Day & Night | Auto / Day / Night / Ext |
| White balance | Auto, One Push, Manual, Indoor, Outdoor |
| Comms. ID | 1 – 255 |
| Control protocol | VISCA, Pelco-D/Pelco-P |
| Baud rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
Camera Functions
| Digital Noise Reduction | Auto / Off / Low / Middle / High |
| Digital Image Stabilization | Off / On |
| High Light Compensation (HLC) | Off / On / Night Only |
| Defog | Off / On (Auto / Manual) |
| Freeze | Off / On |
| Gamma | 0.45 / 0.55 / 0.65 / 0.75 |
| Motion detection | Off / On (3 positions) |
| Privacy mask | Off / On (24 masks) |
| Defect detection | Off / On |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 – 10 steps |
| Adaptive Contrast Enhancement (ACE) | Off / Low / Middle / High |
General
| Power requirement | 12V DC ± 10% |
| Power consumption | ~ 3W |
| Operating temperature | -10°C to +50°C. |
| Storage temperature | -20°C to +60°C. |
| Humidity | 0% to 90% (no condensation) |
| Dimensions (L x W x H) | Board camera: 32x32x10mm |
| Weight | 26g (with IR filter and lens) |
| Download | File Type | File Size | |
|---|---|---|---|
Datasheets |
Datasheet Oriole HD-SDI Board Camera | 355.93 KB | |
| Datasheet M12 lens, f=3.6mm | 216.44 KB | ||
Manuals & Quick Start Guides |
Technical Reference Manual - Oriole HD-SDI Board Camera v.1.06 | 1.04 MB | |
| Oriole HD-SDI Board Camera Quickstart Guide v.1.1 | 394.00 KB | ||
Software |
HarrierControl Camera Software v.1.4.2 | zip | 15.21 MB |
CAD Drawings & Data |
3D CAD Model (zipped STEP file) - AS-BCAM-S32-00-B (with IR-cut filter) | zip | 362.35 KB |
| Dimensions of the Oriole HD-SDI Board Camera | png | 29.88 KB | |
Other Downloads |
Brochure - Cameras for drones, UAVs and gimbals | N/A | N/A |
| Part number | Description |
|---|---|
| AS-BCAM-S32-00-B |
Oriole HD-SDI Board Camera, with switchable IR-cut filter and 3.6mm focal length lens fitted (Datasheet); other lenses on request (details below). |
| AS-BCAM-S32-EVAL-A |

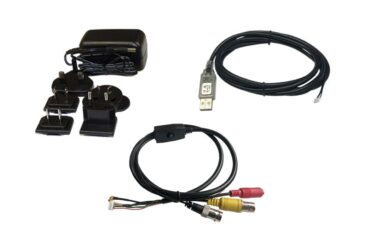

Evaluation kit for the Oriole HD-SDI Board Camera; contains power supply, multi-way evaluation cable and USB-serial communication cable. |
| AS-CBL-706-178B |
USB serial communication cable; USB 2.0 to UART converter cable, A to 3V3 TTL Molex SH, 1.8m. |
| AS-CBL-834-768Z |
Multi-way evaluation cable for AS-BCAM-S32-00 board camera (power input socket, BNC socket for CVBS output, BNC socket for SDI output, MMCX plug for camera SDI socket, header plug for camera J201 socket). |
| AS-LS-M12-021-F20-A |
M12 lens 2.1mm for the Oriole HD-SDI Board Camera (and similar cameras). |
| AS-LS-M12-028-F20-A |
M12 lens 2.8mm for the Oriole HD-SDI Board Camera (and similar cameras). |
| AS-LS-M12-036-F20-A |
M12 lens 3.6mm for the Oriole HD-SDI Board Camera (and similar cameras). |
| AS-LS-M12-060-F20-A |
M12 lens 6mm for the Oriole HD-SDI Board Camera (and similar cameras). |
| AS-LS-M12-080-F25-A |
M12 lens 8mm for the Oriole HD-SDI Board Camera (and similar cameras). |
| AS-LS-M12-100-F25-A |
M12 lens 10mm for the Oriole HD-SDI Board Camera (and similar cameras). |
| AS-LS-M12-250-F20-A |
M12 lens 25mm for the Oriole HD-SDI Board Camera (and similar cameras). |
| AS-LS-M12-350-F18-A |
M12 lens 35mm for the Oriole HD-SDI Board Camera (and similar cameras). |
| AS-LS-M12-500-F28-A |
M12 lens 50mm for the Oriole HD-SDI Board Camera (and similar cameras). |
