Sony FCB-EV9500L

Part Number: AS-SONY-FCB-EV9500L

  • High resolution and high sensitivity autofocus-zoom camera.
  • 30x enhanced optical zoom, 12x digital zoom.
  • Full HD 1920 x 1080 60 fps output.
  • Dimensions (L x W x H): 125 x 56.0 x 64.0mm.
  • HD Digital image output (LVDS).
  • Visibility Enhancer function.
  • Super Image Stabilizer.
  • Sony 1/1.8”-type STARVIS anti-reflective-coated CMOS sensor.
  • F1.6 to F4.8 aperture.
  • Shutter speed 1/1 to 1/10,000 sec.
  • Compatible with all Active Silicon Harrier camera interface boards.
Enquire About This Product
  • Description

  • Product Specs

  • Downloads

  • Ordering Info

  • Video

Description

Products Specs

Downloads

Ordering Info

Video

The Sony FCB-EV9500L autofocus-zoom camera features a 30x optical zoom lens and a 1/1.8″ AR-coated CMOS sensor. The camera can be used in a wide variety of applications, including scenarios with low-light and harsh conditions.

This camera provides an upgrade from the Sony FCB-EV7520 and FCB-EV7520A and offers many sophisticated camera functions. Among others, the camera features VISCA command protocol, Flare Reduction, Noise Reduction (NR), Wide Dynamic Range Mode (Wide-D), Visibility Enhancer (VE), Defog, and  Super+ Image Stabilizer.

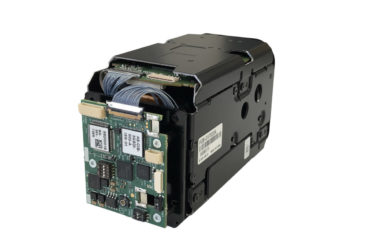

The Sony FCB-EV9500L is compatible with all Harrier camera interface boards, which extend the video output options of the camera to 3G/HD-SDI, Ethernet IP, USB 3, as well as high quality analog and HD-VLC for long cable length solutions.

Additional versions of the EV9500 with native MIPI (FCB-EV9500M) or HDMI (2160p/60, FCB-EV9500H) video output are also available, please contact Active Silicon for more details.

Camera Specifications

Image sensor

1/1.8”-type STARVIS CMOS sensor

Number of effective pixels

4.17M Pixel

Output pixels (H x V)

1920 x 1080, 1280 x 720

Video format

1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25

Minimum illumination (50%, High Sensitivity mode ON)

ICR-Off mode: 0.009lx (shutter speed 1/30 sec), 0.0012lx (1/4 sec or 1/3 sec)
ICR-On mode: 0.00008lx (shutter speed 1/30 sec), 0.000005lx (1/4 sec or 1/3 sec, 30%)

Minimum illumination (50%, High Sensitivity mode OFF)

ICR-Off mode: 0.09lx (shutter speed 1/30 sec), 0.012lx (1/4 sec or 1/3 sec)
ICR-On mode: 0.00063lx (shutter speed 1/30 sec)

Recommended illumination

100lx to 100,000lx

Image S/N

50 dB (Weight On)

Gain

Auto / Manual (0dB to 50.0dB), 0 to 28 steps

Shutter speed

1/1 to 1/10,000 sec, 22 steps

Sync system

Internal

Exposure control

0dB to ± 10.5dB, 15 steps

Backlight compensation

Yes

Gamma

Standard / Straight gamma

Aperture control

16 steps

White balance

Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix / Auto / Outdoor Auto), Spot AWB

AE (Auto Exposure Mode)

Full Auto, Manual, Priority mode (shutter / iris), EV compensation, Spot AE, Slow AE

Zoom

30x Enhanced Optical Zoom
36x StableZoom*
12x Digital Zoom

*StableZoom increases the magnification by combining optical zoom and digital zoom.

Lens (wide to tele)

f=6.5mm to 162.5mm, F1.6 to F4.8

Zoom mode

Standard Mode / Variable Mode / Direct Mode

Zoom Movement Speed

Wide end to Tele end:
4.8 s (Focus Tracking ON), 2.9 s (Focus Tracking OFF)

Wide end to Digital 12x tele:
6.1 s (29.97p/59.94p), 6.4 s(25p/50p)

Digital wide to Digital 12x tele:
1.4 s (29.97p/59.94p), 1.6 s (25p/50p)

Focusing system

Auto focus (Normal AF, Interval AF, Zoom Trigger AF [sensitivity: normal, low]),
Manual (Standard, Variable, Direct),
One Push Trigger,
Full Scan One Push Trigger,
Near Limit,
IR Correction,
Spot Focus

Focus Movement Time

∞ to Near: 1.4 s

Horizontal viewing angle

58.1° (Wide) to 2.3° (Tele)

Minimum object distance

100mm (Wide) to 1200mm (Tele)

Camera Functions

Auto ICR

Yes

Wide Dynamic Range (Wide-D)

Yes

Visibility Enhancer

Yes

Defog

Yes (low / mid / high)

Noise Reduction

Yes [3D + 2D / independent setting (3D, 2D)]

Progressive Scan Mode

Yes

Image stabilization

Yes: Super image stabilizer (Super / Super+)

Spot Light Avoidance

Yes

Motion detection

Yes

Privacy zone masking

Yes

Alarm

Yes

Slow AE response

Yes

Picture effects

Black & white (monochrome image)

Picture freeze

Yes

Electronic flip (e-flip)

Yes

Mirror image

Yes

Slow shutter

Yes

Temperature readout

Yes

Title display

Yes (20 characters / line, max. 11 lines)

Camera mode display

Yes (English)

General

Power requirements

7.0V to 12.0V DC

Power consumption

6.1W (When motor operates: 7.8W)

Operating temperature

-5°C to +60°C

Storage temperature

-20°C to +60°C

Operating humidity

20% to 80% (absolute humidity: 36 g/m3)

Storage humidity

20% to 95% (absolute humidity: 36 g/m3)

Dimensions (L x W x H)

125 x 56 x 64mm

Weight

Approx. 439g

Interface

Video output (HD)

Digital : Y/Pb/Pr 4:2:2 (LVDS)
(Y: 8 bit, C: 8 bit, Vsync, Hsync, Field, Clock) (SMPTE274M / SMPTE296M)

Camera control interface

VISCA protocol (CMOS 3.3V Level, 5.5V tolerance);
Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit

Download File Type File Size

Datasheets

Datasheet Sony FCB-EV9500 pdf 491.84 KB

Manuals & Quick Start Guides

Sony FCB-EV9500L Technical Reference Manual pdf 1.61 MB

Software

Sony FCB-EV9500 Camera Control Software zip 154.52 KB

CAD Drawings & Data

Sony FCB-EV9500L Technical Drawing png 170.65 KB

Ordering Information

Part number Description

AS-SONY-FCB-EV9500L

Sony FCB-EV9500L autofocus-zoom camera.

AS-CIB-3GSDI-002-9500-A

Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9500L).

AS-CIB-USBHDMI-002-9500-A

Harrier 30x AF-Zoom USB/HDMI Camera (Sony FCB-EV9500L).

AS-CIB-HDMI-001-9500-A

Harrier 30x AF-Zoom HDMI Camera (Sony FCB-EV9500L).

AS-CIB-IP-00x-9500-A

Harrier 30x AF-Zoom IP Camera (Sony FCB-EV9500L). [x= 1 (wired, regular Ethernet). 2 (wireless, regular Ethernet). 3 (wired, PoE), 4 (wireless, PoE)]

AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C).

AS-CIB-BRK-007-A

Metal bracket, screws and spacers for mounting Harrier camera interface boards to a Sony FCB-EV9500L camera.
