Tamron autofocus-zoom camera MP1110M-VC

Click image to enlarge

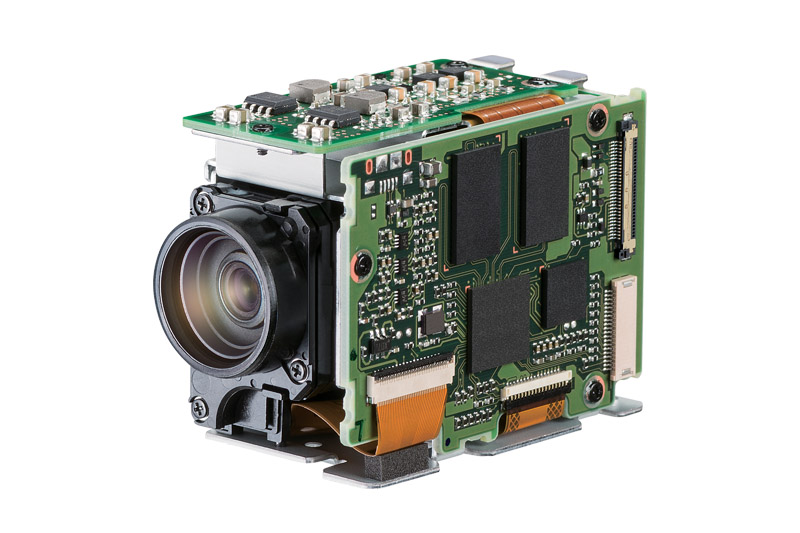

Tamron MP1110M-VC (and -WP version)

Part Number: AS-TAMRON-MP1110M-VC

  • Autofocus zoom camera
  • Full HD 1920 x 1080 high resolution camera
  • Compact and lightweight
  • Optional optical vibration compensation
  • 1/3-type CMOS progressive scan image sensor
  • Effective number of pixels approx. 4,080,000
  • Pixel output (H x V) 1920 x 1080, 1280 x 720
  • Video formats (HD): 1080p/60, 59.94, 50, 30, 29.97, 25; 1080i/60, 59.94, 50; 720p/60, 59.94, 50, 30, 29.97, 25
  • Video formats (SD): NTSC/PAL
  • Lens (wide to tele) 10x optical zoom – digital zoom up to 16x
  • Shutter speed 1/1 to 1/10,000 sec
  • Dimensions (W x H x D): 31.9 x 41.5 x 58.4mm
  • Compatible with Active Silicon’s Harrier camera interface boards
Enquire About This Product
  • Description

  • Product Specs

  • Downloads

Description

Products Specs

Downloads

The lightweight Tamron MP1110M-VC camera is extremely compact, measuring only 31.9 x 41.5 x 58.4mm. It is a high image-quality camera module with video outputs compatible with 1080p60 Full HD and other video formats. It features a 10x optical zoom and optional optical vibration compensation mechanism. Benefiting from Tamron’s original optics design and low reflection coating technologies, the camera offers color blur reduction and high contrast.

As well as the MP1110M-VC, we also offer the MP1110M-WP version of the camera (the -VC version has optical vibration compensation, the -WP version does not), please request details from sales@activesilicon. The cameras are compatible with all Active Silicon’s Harrier series products.

Camera

Image sensor

1/3-type CMOS (progressive scan)

Effective no. of pixels

Approx. 4,080,000 pixels

Pixel output (H x V)

1920 x 1080; 1280 x 720

Video format (HD)

1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25

Video format (SD)

NTSC / PAL

Minimum illumination

0.5lx (1/30 sec, F1.8, 50%)

Recommended illumination

100lx to 100,000lx

S/N ratio

More than 50dB

Gain

Auto / manual

Shutter speed

1/1 to 1/10,000 sec

Sync system

Internal

Exposure compensation

-12dB to +12dB (total 13 steps)

Backlight compensation

ON / OFF

Gamma

Standard / straight

Aperture control

16 steps

White balance

ATW1 (narrow), ATW2 (wide), one push, manual (B, R)

AE (Auto exposure mode)

Auto, manual, priority mode (shutter / iris)

Lens (wide to tele)

10x optical zoom f=3.3 to 33.0mm F1.8 to 3.4

Zoom mode

Standard / variable / direct

Zoom movement speed (wide to tele)

1.4 sec (focus tracking ON)

Digital zoom

Up to 16x

Focusing system

Auto, manual, one push, AF sensitivity

Horizontal viewing angle (wide to tele)

59.2° to 6.7°

Minimum object distance (wide to tele)

10mm to 800mm

Horizontal resolution

800 TV lines

Functions

VC (Vibration Compensation)

Available

Wide-D

Available

Defog

Available

Noise reduction (3D + 2D)

Available

Digital output

Available

Privacy zone masking

Available

Motion detection

Available

Slow shutter

Available

Picture effects (black white)

Available

Picture freeze

Available

Electronic flip (e-flip)

Available

Mirror image

Available

Temperature readout

Available

Title display

Available

General

Power requirement

8V to 12V DC

Power consumption

Approx. 3W

Operating temperature

-5°C to +60°C

Storage temperature

-40°C to +60°C

Operating humidity

20% to 80% (no condensation)

Storage humidity

20% to 90% (no condensation)

Dimensions (W x H x D)

31.9 x 41.5 x 58.4mm

Weight

Approx. 77g

Interface

Video output (HD)

Digital: Y / Pb / Pr 4:2:2 (LVDS)

Video output (SD)

CVBS

Camera control interface

VISCA protocol (VISCA is a trademark of SONY corporation)

Ordering Information

Part number Description

AS-TAMRON-MP1110M-VC

Tamron MP1110M-VC autofocus zoom camera

AS-CIB-3GSDI-002-1110-A

Tamron MP1110M-VC autofocus zoom camera with Harrier 3G-SDI 75 Ohm interface board AS-CIB-3GSDI-002-A attached with AS-CIB-USL30-100MM connecting cable.

AS-CIB-3GSDI-002-A

Harrier 3G-SDI 75 Ohm interface board for the Tamron MP1x10M-VC. Analog composite output (when in 720p50/59.94/60 operating modes). Support for HD-VLC compression technology. Board only, no cables included.

AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C).

AS-CIB-USL30-50MM

30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C).

AS-CIB-BRK-001-A

Bracket to fit the interface board AS-CIB-3GSDI-002-A to the side of a Tamron MP1x10M-VC camera after removing the original base bracket.
