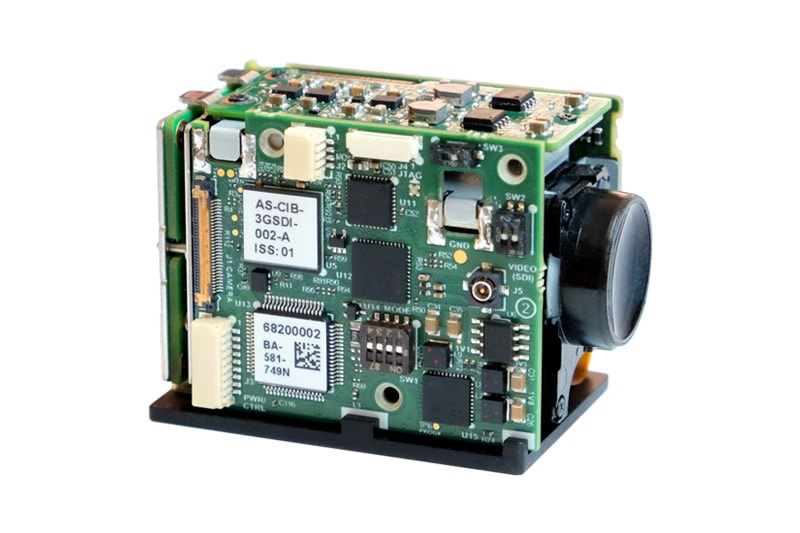

Harrier 10x AF-Zoom HD/3G-SDI Camera (MP1010 / MP1110)

Part Number: AS-CIB-HDSDI-002-1010-A | AS-CIB-3GSDI-002-1110-A
Legacy Product
3G-SDI HD-VLC HD-SDI Tamron MP1110M Autofocus zoom block camera
Legacy Product

Features

  • HD-SDI/3G-SDI camera solution including Tamron MP1010M or MP1110M.
  • Lightweight and compact 4 Megapixel camera.
  • 10x optical zoom, 16x digital zoom.
  • 1/3-type CMOS progressive scan image sensor.
  • Supports all HD modes up to 1080p60.
  • HD-VLC™ output mode for long cable length applications.
  • Camera control using VISCA™ protocol TTL/RS-232/RS-485 serial.

The Tamron MP1010M or MP1110M cameras are end-of-life. Please contact sales for remaining stock and alternative products. We recommend the Harrier 10x AF-Zoom 3G-SDI Camera (Tamron MP3010M-EV) as their improved successor. Lighter and with similar dimensions, it is the smallest AF-Zoom camera on the market.

The Harrier 10x AF-Zoom 3G-SDI Camera (Tamron MP1010M / MP1110M) offers 10x optical zoom and 16x digital zoom with real-time HD-SDI video output over a 75 Ohm (H.FL) micro-coax cable. The camera is based on the Tamron MP1010M or Tamron MP1110M and comes with optical vibration compensation (-VC version), or without this feature (-WP version). It supports HD-VLC™ output mode for long cable length applications.

This lightweight camera solution is extremely compact, measuring only 58.4 x 34.7 x 41.5mm and weighing only 81g. It is a high image-quality camera module with SMPTE 274M and SMPTE 296M compliant video output up to 1080p30 Full HD. Benefiting from Tamron’s high quality optical design and low reflection coating technologies, the camera offers color blur reduction, high contrast and many other sophisticated camera features. The camera can be controlled using VISCA protocol serial communications over TTL, RS-232 or RS-485. DIP switch settings control the selection of serial communication protocol, HD-VLC output and camera video output mode on power-up.

This camera is also available with USB and/or HDMI video output instead of SDI output.

Camera Specification

Image sensor

1/3-type CMOS (progressive scan)

Effective no. of pixels

Approx. 4,080,000 pixels

Pixel output (H x V)

1920 x 1080; 1280 x 720

Video format (HD)

1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50,720p/30, 720p/25, 1080p/60 (MP1110M only), 1080p/50 (MP1110M only)

Minimum illumination

0.5lx (1/30 sec, F1.8, 50%)

Recommended illumination

100lx to 100,000lx

S/N ratio

More than 50dB

Gain

Auto / manual

Shutter speed

1/1 to 1/10,000 sec

Sync system

Internal

Exposure compensation

-12dB to +12dB (total 13 steps)

Backlight compensation

ON / OFF

Gamma

Standard / straight

Aperture control

16 steps

White balance

ATW1 (narrow), ATW2 (wide), one push, manual (B, R)

AE (Auto exposure mode)

Auto, manual, priority mode (shutter / iris)

Lens (wide to tele)

10x optical zoom f=3.3 to 33.0mm F1.8 to 3.4

Zoom mode

Standard / variable / direct

Zoom movement speed (wide to tele)

1.4 sec (focus tracking ON)

Digital zoom

Up to 16x

Focusing system

Auto, manual, one push, AF sensitivity

Horizontal viewing angle (wide to tele)

58.2° to 6.9° (Tamron MP1010M)
59.2° to 6.7° (Tamron MP1110M)

Minimum object distance (wide to tele)

10mm to 800mm

Camera Functions

VC (Vibration Compensation)

Available

Wide-D

Available

Defog

Available

Noise reduction (3D + 2D)

Available

Digital output

Available

Privacy zone masking

Available

Slow shutter

Available

Picture effects (black white)

Available

Picture freeze

Available

Electronic flip (e-flip)

Available

Mirror image

Available

Title display

Available

Test pattern

Available

Crosshairs

Available

Connector Specification Harrier 3G-SDI Camera Interface Board

KEL30 Connector (J1)

The interface board is fitted with a 30-way miniature connector to link to the video output connector on the camera.

Connector type: KEL USL00-30L.

Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length).

Input/Output Connector (J2)

The interface board is fitted with an industry standard 4-way connector for test pattern and reset control, plus VSync out.

Connector type: JST SM04B-SRSS-TB

Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information).

See Harrier 3G-SDI Camera Interface Board datasheet (download tab) for pin assignments and control options.

Power and Control Connector (J3)

The interface board is fitted with an industry standard 9-way connector for power, serial control and analog video out.

Connector type: JST SM09B-SRSS-TB

Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information).

See Harrier 3G-SDI Camera Interface Board datasheet (download tab) for pin assignments and output options.

Analog Video Out (Pin 3, J3)

Standard resolution composite analog is simultaneously available in HD modes 720p50 (for PAL) and 720p60/59.94 (for NTSC). There are two options for the analog output, selectable via serial control:

(a) the 1280 pixel wide HD image can be cropped to 960 wide, by cropping a 120 pixel strip off each side to make a 4:3 aspect ratio Standard Definition (SD) signal.

(b) by pre-warping the image, such that when displayed on a HD monitor  in the monitor’s stretch-to-fit mode, the original full-width HD signal will be displayed correctly at 16:9 aspect ratio.

Both methods ensure the displayed pixels remain square and that the image is not distorted.

3G-SDI Output Connector (J5)

The interface board is fitted with a Hirose H.FL Micro Coaxial Connector (75 Ohm).

Connector type: Hirose Micro Coaxial Connector (Receptacle), part number H.FL-R-SMT(01).

Mating connector: Use mating cable with 75 Ohm characteristic impedance, for example Hirose part number H.FL75-2LP-084H-A-100. A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information).

Video and Control Mode DIP Switch (SW1)

The interface board is fitted with a 4-way DIP switch to select various video output and control modes.

The DIP switches to select the Video Format are read on power-up only. Therefore, to change mode using the DIP switches, power down the camera, set the switches and then power up the camera. DIP switches will only be effective for the operating modes supported by the camera currently in use.

See Harrier 3G-SDI Camera Interface Board datasheet (download tab) for the configuration of the DIP switch SW1.

Communications Mode Selection (SW2)

The interface board is also fitted with a 2-way DIP switch to select the serial communications standard. It allows to choose between RS-232 VISCA communications, RS-485 VISCA comms with RS-485 termination enabled, RS-485 VISCA comms with RS-485 termination disabled and TTL VISCA communications.

See Harrier 3G-SDI Camera Interface Board datasheet (download tab) for the details and configuration of the DIP switch SW2.

Digital Transmission Standard Selection (SW3)

The interface board is fitted with a 1-way DIP switch to select the SMPTE or HD-VLC digital output standards.

OFF = SMPTE compliant output.

ON = HD-VLC compressed output.

Physical and Environmental Details

Power requirement

8V to 12V DC

Power consumption

3.6W – Typical power with static view at 1080p30, values will vary with camera mode and with camera focus/zoom motor operations.

Operating temperature

-5°C to +60°C

Storage temperature

-20°C to +60°C

Operating humidity

20% to 80% (no condensation)

Dimensions (L x W x H)

58.4mm x 34.7mm x 41.5mm  (L x W x H)

Weight

81g

Status LED

The interface board is fitted with a multi-color LED to indicate camera status.

Part number Description
AS-CIB-HDSDI-002-1010-A

Harrier 10x AF-Zoom HD-SDI Camera (Tamron MP1010M-VC); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request.

AS-CIB-HDSDI-002-1010WP-A

Harrier 10x AF-Zoom HD-SDI Camera (Tamron MP1010M-WP); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request.

AS-CIB-3GSDI-002-1110-A

Harrier 10x AF-Zoom 3G-SDI Camera (Tamron MP1110M-VC); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request.

AS-CIB-3GSDI-002-1110WP-A

Harrier 10x AF-Zoom 3G-SDI Camera (Tamron MP1110M-WP); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request.

AS-CIB-3GSDI-002-EVAL-B

Evaluation kit for Harrier 3G-SDI, including the Harrier 10x AF-Zoom 3G-SDI Camera (Tamron MP1010 / MP1110). The kit contains power supply, cabling (AS-CIB-CBLKIT-002-B), micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB). Not included: Camera and camera interface board.

AS-TAMRON-MP1010M-VC

Tamron MP11010M-VC autofocus zoom block camera.

AS-TAMRON-MP1010M-WP

Tamron MP1010M-WP autofocus zoom block camera. Camera without optical vibration compensation.

AS-CIB-3GSDI-002-A

Harrier 3G-SDI Camera Interface Board. Analog composite output (when in 720p50/59.94/60 operating modes). Support for HD-VLC compression technology. Board only, no cables included.

AS-CIB-CBLKIT-002-B

Cable kit for AS-CIB-3GSDI-002-A containing H.FL micro coax cable, BNC adapter and control cables for J2 and J3.

AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C).

AS-CIB-USL30-50MM

30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C).

AS-CIB-BRK-001-A

Bracket to fit the interface board AS-CIB-3GSDI-002-A to the side of a Tamron MP1010M-VC or MP1010M-WP camera after removing the original base bracket.

HD video transmission over long distances

If you look for long cable length solutions that guarantee high quality HD video transmission over greater distances we recommend HD-VLC technology.
Check out our white paper on Long-reach HD video transmission technologies and our video:




Harrier AF-Zoom cameras

Watch this video to learn more about Harrier AF-Zoom cameras:
