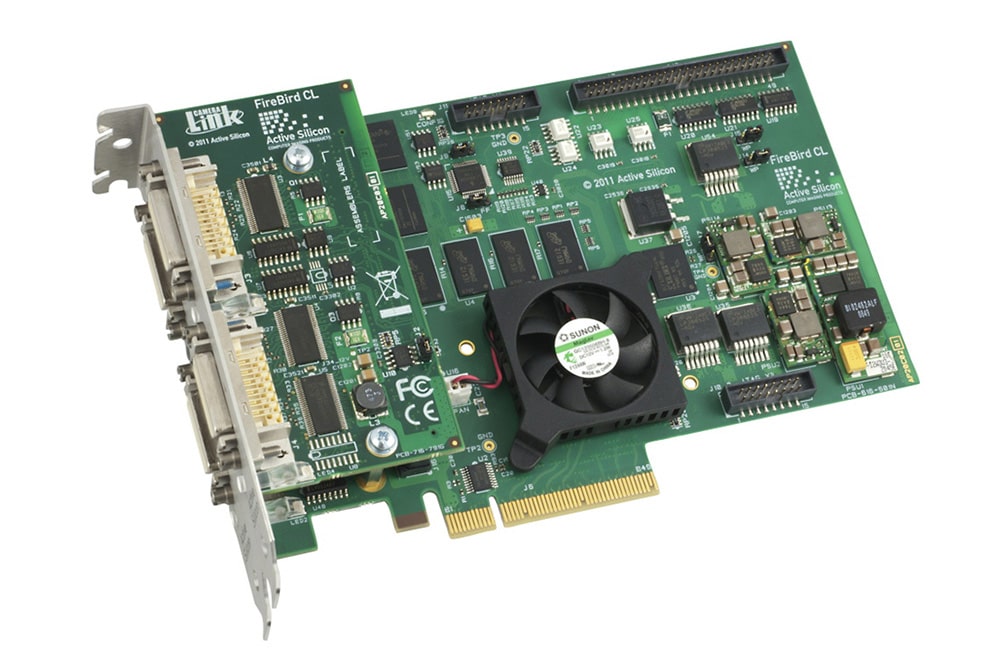

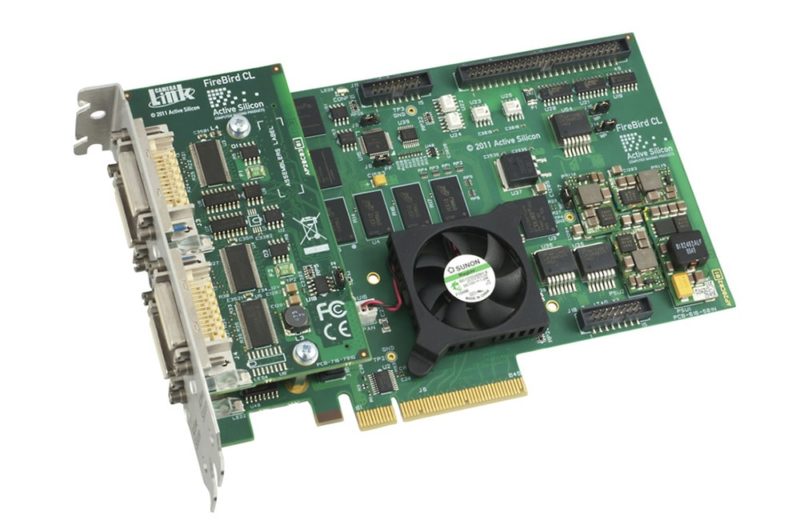

FireBird Frame Grabber (2xCLD-2PE8)

This product is now end-of-life. Please contact sales for remaining stock and alternative products.

Product description

FireBird Camera Link Dual 80-bit (Deca) is a member of Active Silicon’s FireBird frame grabber family.

FireBird is designed for ultimate performance using Active Silicon’s proprietary DMA Engine technology, “ActiveDMA”. This technical innovation applies RISC based processor techniques and guarantees zero CPU intervention, high-speed and low-latency image data transfers.

FireBird supports the latest version 2.1 Camera Link specification, including both 80-bit modes: 8-bit 10-tap and 10-bit 8-tap modes – often referred to as Camera Link “Deca”, at clock rates up to 85 MHz.  Developed for high-end multiple camera applications, the FireBird Camera Link Dual 80-bit supports capture from two simultaneous Camera Link cameras, which could be two Medium, two Full or two 80-bit cameras.

FireBird is supported by Active Silicon’s software development kit, ActiveSDK. This is available as a separate item, and allows rapid system development and integration. It provides comprehensive example applications and optimized libraries, and supports a variety of operating systems via a common API, including Windows, Linux and QNX. Drivers for third party applications are also available such as Cognex VisionPro, HALCON, Common Vision Blox, StreamPix, LabVIEW etc. In addition to functions that control the hardware, the libraries include general purpose functions for the manipulation and display of images. A separate datasheet describes ActiveSDK in detail.

FireBird also supports GenICam for Camera Link cameras which support CLProtocol, including those using GenCP. A GenTL Producer is provided as part of the FireBird driver installation which allows the frame grabber to be used with GenICam GenTL compliant applications.
