Harrier 36x AF-Zoom SDI Camera with Global Shutter
Part Number: AS-CAM-36SGHD-A
Features
- Full HD high resolution autofocus-zoom camera.
- 1/2.3-type 2MP Sony Pregius IMX392LQR-C CMOS sensor (global shutter).
- Output: HD-SDI, EX-SDI, HD-TVI, CVBS.
- Video formats: 1080p – 60/50/30/25 (EX-SDI)
1080p – 30/25 fps (HD-SDI), 720p – 60/50/30/25 fps. - 36x Optical Zoom & 32x Digital Zoom.
- Effective number of pixels approx. 2,350,000.
- Shutter speed 1/30(25) – 1/20,000 sec.
- Dimensions (L x W x H): 124 x 55.6 x 64mm.
- Serial VISCA, Pelco – D/P Control Protocol.
- External trigger and strobe out capability.
The Harrier 36x Autofocus-Zoom (AF-Zoom) SDI Camera offers real-time full HD video output and a powerful 36x optical zoom (32x digital zoom). Fitted with a 2 Megapixel Sony Global Shutter CMOS sensor, the camera captures moving objects without the distortion that can occur with rolling shutters.
The camera provides HD-SDI video up to 1080p30 and comes with an EX-SDI (compressed video) output option that enables the use of longer transmission cables (compared to SDI). Serial VISCA or Pelco-D/P Control Protocol are available to control the camera. CVBS and HD-TVI outputs are also available.
Special features of this global shutter block camera include Digital Image Stabilization, Noise Reduction, Privacy Mask Function, Intelligent Motion Detection, Day & Night mode (Infrared Cut filter Removal, ICR) and High/Back Light Compensation (HLC/BLC).
Active Silicon offers two variants of Harrier 36x AF-Zoom Cameras with SDI video output. The Harrier 36x AF-Zoom SDI Camera is more compact and provides EX-SDI and HD-TVI output options. The Harrier 36x AF-Zoom HD-SDI Camera also delivers high quality HD-SDI output, but it is made up from a Harrier 36x AF-Zoom (LVDS) Camera with a Harrier 3G-SDI Camera Interface Board; this enables support for HD-VLC output, which we recommend for use with extra long cable lengths and the Bluebird SDI Adapter. The interface board can also be modified to add custom video processing features.
For more information please talk to our team to discuss the best option for your application.
Camera Specification
| Image sensor | 1/2.3-type Sony Pregius IMX392LQR-C CMOS sensor (global shutter) |
||||||||||||
| Video output | EX-SDI (default) |
||||||||||||
| Video format (HD) | HD-SDI: 1080p/30/25 fps, 720p/60/50/30/25 fps |
||||||||||||
| Effective no. of pixels | Approx. 2,350,000 pixels |
||||||||||||
| Minimum illumination | Color(1/30s, 48dB) : 0.3 lux , Color DSS(1/2s, 48dB) : 0.06 lux |
||||||||||||
| S/N ratio | more than 50dB (AGC off) |
||||||||||||
| Gain control (AGC) | 0 – 10 steps |
||||||||||||
| Shutter speed | 1/30(25) – 1/20,000 sec |
||||||||||||
| Sync system | Internal |
||||||||||||
| DSS | Off / 2x / 4x / 8x / 16x / 32x (/64x : 60 or 50fps mode only) |
||||||||||||
| White balance | Auto, One Push, Manual, Indoor, Outdoor |
||||||||||||
| AE (Auto exposure mode) | Auto, lris Priority, Shutter Priority, Manual |
||||||||||||
| Lens (wide to tele) | Optical x36 Zoom, f=6mm to 216mm, F1.5 (wide) to F4.8 (tele) |
||||||||||||
| Digital zoom | OFF / MAX 1x – 32x |
||||||||||||
| Focusing system | Auto / One Push / Manual |
||||||||||||
| Viewing angle (FOV) |
|
||||||||||||
| Minimum object distance (wide to tele) | 100mm (wide) to 1500mm (tele) |
||||||||||||
| Control protocol | VISCA |
||||||||||||
| Baud rate | 9600 / 19200 / 38400 / 57600 / 115200 |
Camera Functions
| Day & Night mode | Day / Night |
| Digital Noise Reduction | 2D/3D, 2D+3D (Level : 0 ~ 15 steps) |
| Digital Image Stabilization | Available |
| High/Back Light Compensation (HLC/BLC) | Off / BLC / HLC |
| Defog | Available |
| Motion detection | Detection OFF / 3 positions |
| Privacy mask | Mask OFF / 8 positions |
| Defect detection | Detection ON/OFF |
General
| Power requirement | 9 – 15V DC |
| Power consumption | Max.: 6.6W |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Operating humidity | 0% to 90% (no condensation) |
| Dimensions (L x W x H) | 124mm x 55.6mm x 64mm x (L x W x H) |
| Weight | 416g |
| Download | File Type | File Size | |
|---|---|---|---|
Datasheets |
Datasheet Harrier 36x AF-Zoom SDI Camera | 642.64 KB | |
Manuals & Quick Start Guides |
Technical Reference Manual - Harrier 36x AF-Zoom SDI Camera v1.05 | 1.63 MB | |
| Harrier AF-Zoom SDI Cameras Quickstart Guide - v1.0.4 | 723.04 KB | ||
Software |
HarrierControl Camera Software v.1.4.2 | zip | 15.21 MB |
CAD Drawings & Data |
3D CAD Model (zipped STEP file) Harrier 36x AF-Zoom Camera and SDI Camera | zip | 3.56 MB |
| Dimensions Harrier 36x AF-Zoom SDI Camera | jpg | 67.71 KB | |
Other Downloads |
Brochure - Cameras for drones, UAVs and gimbals | 1.30 MB |
| Part number | Description |
|---|---|
| AS-CAM-36SGHD-A |
Harrier 36x AF-Zoom SDI Camera |
| AS-CAM-SDI-EVAL-A |

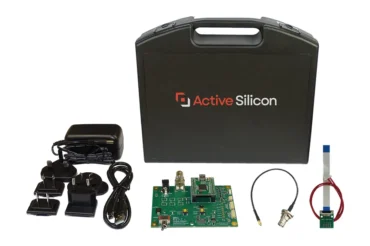

Evaluation kit for Harrier 36x and Harrier 10x AF-Zoom SDI cameras. Includes power supply, cables and the Harrier Evaluation Board with PC serial interface (via USB). Not included: Camera. |
