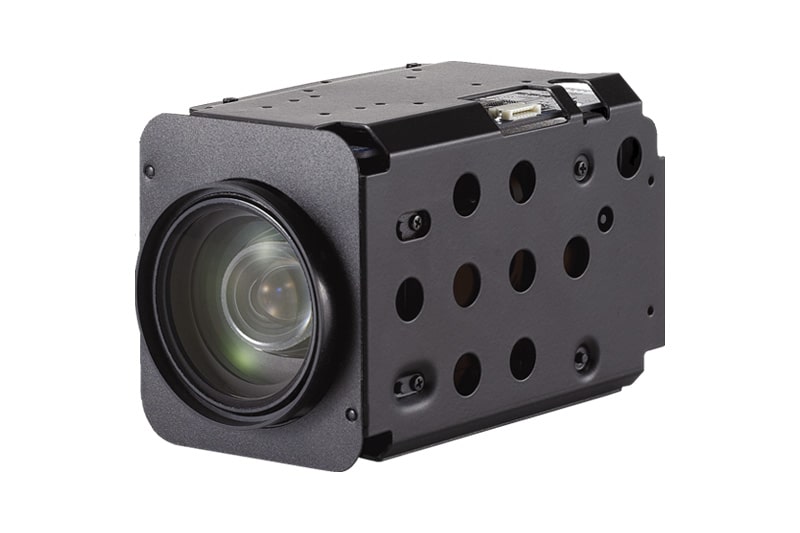

Harrier 55x AF-Zoom Camera

Part Number: AS-CAM-55LHD-A

Features

Full HD high resolution autofocus-zoom camera.
1/2.8-type 5MP Sony IMX335 CMOS sensor.
Output: LVDS, CVBS.
Video formats (HD): 1080p – 30/25 fps, 720p – 30/25 fps.
55x optical hybrid zoom & 32x digital zoom.
Shutter speed 1/1 – 1/100,000 sec.
Dimensions (L x W x H): 101 x 54 x 64 mm.
Serial VISCA, Pelco – D/P Control Protocol.
ICR, WDR, Digital Noise Reduction, Digital Image Stabilization and many more advanced features.
Compatible with Active Silicon’s Harrier camera interface boards.
Pre-assembled camera solutions available (HD-SDI, USB, HDMI, Ethernet IP).

Enquire About This Product

The Harrier 55x AF-Zoom Camera is a 5MP high resolution camera with a powerful 55x optical hybrid zoom. It provides LVDS video and simultaneously, an analog CVBS output. Serial VISCA or Pelco-D/P Control Protocol are available to control the camera.

Special features of this autofocus-zoom block camera include Digital Image Stabilization, Digital Noise Reduction (2D+3D), Privacy Mask Function, High Light Compensation, Intelligent Motion Detection, Defog Function and Day & Night mode (Infrared Cut filter Removal, ICR).

The Harrier 55x AF-Zoom Camera is compatible with all Harrier camera interface boards, which convert the camera LVDS output to video formats such as HD-SDI, HD-VLC (for long cable length solutions), USB 3 (UVC), HDMI and IP Ethernet. For more information contact our team.

Camera Specification

Video output	HD: LVDS Analog: CVBS
Image sensor	1/2.8-type 5MP Sony IMX335 CMOS sensor
Active pixels	Approx. 5,130,000 pixels
Sync system	Internal
Video format (HD)	1080p 30/25 fps, 720p 30/25 fps
Analog resolution	CVBS
Minimum illumination	Color(1/30s, 72.0dB) : 0.02 lux , BW(1/30s, 72.0dB) : 0.002 lux Color DSS(1/1s, 72.0dB) : 0.002 lux , BW DSS(1/1s, 72.0dB) : 0.0002 lux
S/N ratio	more than 50dB (AGC off)
Zoom Ratio	Hybrid optical zoom: 55x – optical zoom lens (40x) with additional sensor zoom feature to deliver 55x zoom. Digital Zoom: 32x
Lens (wide to tele)	Focal length: f=4.25mm to approx. 234mm Aperture Ratio: F1.6 (wide) to F4.95 (tele)
Angle of View (D, H, V)	Wide: 69.3°, 62.13°, 37.44° (D, H, V) Tele: 1.48°, 1.29°, 0.73° (D, H, V)
Focusing system	Auto / One Push / Manual / Auto-Ext / Spot
Minimum distance	0.1 / 1.5 / 3.0 / 6.0 / 10.0 m
Digital zoom	MAX 32x
Exposure mode	Auto, lris Priority, Shutter Priority, Manual
Gain control (AGC)	0 – 10 steps
Shutter speed	1/1 – 1/100,000 sec
Iris	Closed – F1.6
Digital Slow Shutter (DSS)	Off / 2x / 4x / 8x / 16x / 32x
Flickerless	Off / On / Auto
Brightness	0 – 14 steps
Back Light	Off / BLC / HLC (BLC – Back Light Compensation, HLC – High Light Compensation)
Day & Night	Auto / Day / Night / Ext-in
White balance	Auto, One Push, Manual, Indoor, Outdoor, Auto-Ext
System (analog)	NTSC / PAL
Control protocol	Serial VISCA Pelco-D / Pelco-P
Baud rate	2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200

Camera Functions

Digital Noise Reduction (DNR)	2D/3D, 2D+3D (Level: 0 ~ 15 steps)
Mirror	Off / H / V / H&V
Sharpness	0 – 15 steps
DWDR	Off / Manual / Auto (DWDR – Digital Wide Dynamic Range)
Defog	OFF / Manual / Auto
Privacy mask	OFF / ON (8 masks)
Motion detection	OFF / ON (4 regions)
DIS	OFF / ON (DIS – Digital Image Stabilizer)
Defect detection	OFF / ON

General

Power requirement	9 – 15V DC
Power consumption	Max.: 6.5W (with motor in operation for zoom/focus, 540mA @12V DC) Typical: ~3.8W (at 1080p30)
Operating temperature	-10°C to +50°C
Storage temperature	-20°C to +60°C
Operating/storage humidity	0% to 90% (no condensation)
Dimensions (L x W x H)	101mm x 54mm x 64mm (L x W x H)
Weight	355g

	Download	File Type	File Size
Datasheets	Datasheet Harrier 55x AF-Zoom Camera	pdf	508.99 KB
Manuals & Quick Start Guides	Technical Reference Manual - Harrier 55x AF-Zoom Camera v1.02	pdf	5.25 MB
Software	HarrierControl Camera Software v.1.4.2	zip	15.21 MB
CAD Drawings & Data	3D CAD Model (zipped STEP file)	zip	6.52 MB
	3D CAD Model (zipped STEP file) with field of view (FOV)	zip	6.61 MB
	Dimensions Harrier 55x AF-Zoom Camera	png	218.45 KB
Other Downloads	Brochure - Cameras for drones, UAVs and gimbals	pdf	1.30 MB

Part number	Description
AS-CAM-55LHD-A	Harrier 55x AF-Zoom Camera
AS-CIB-3GSDI-002-A	Harrier 3G-SDI Camera Interface Board. Support for HD-VLC compression technology. Board only, no cables included. See pre-assembled module of the camera interface board with the Harrier 55x AF-Zoom Camera: Harrier 55x AF-Zoom 3G-SDI Camera.
AS-CIB-IP-00x-A	Harrier IP Camera Interface Board system. Includes: Harrier IP Camera Interface Board, Harrier Ethernet/PoE Connection Board and FFC cable. x=1-4: AS-CIB-IP-001-A (Ethernet, non-PoE) AS-CIB-IP-002-A (wireless) AS-CIB-IP-003-A (PoE) AS-CIB-IP-004-A (PoE, wireless) See pre-assembled module of the camera interface board with the Harrier 55x AF-Zoom Camera: Harrier 55x AF-Zoom IP Camera.
AS-CIB-USBHDMI-002-A	Harrier USB/HDMI Camera Interface Board. Board only, no cables included. See pre-assembled module of the camera interface board with the Harrier 55x AF-Zoom Camera: Harrier 55x AF-Zoom USB/HDMI Camera.
AS-CIB-HDMI-001-A	Harrier HDMI Camera Interface Board. Board only, no cables included. See pre-assembled module of the camera interface board with the Harrier 55x AF-Zoom Camera: Harrier 55x AF-Zoom HDMI Camera.
AS-CIB-USL30-100MM	30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-005-C).
AS-CIB-USL30-50MM	30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C).
AS-CIB-BRK-007-A	Metal bracket, screws and spacers for mounting Harrier camera interface boards to a Harrier 55x AF-Zoom Camera.

Harrier AF-Zoom cameras

Watch this video to learn more about Harrier AF-Zoom cameras:
