Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP3010M-EV)

Part Number: AS-CIB-USBHDMI-002-3010-A

10x AF-Zoom USB 3 / HDMI Camera with Tamron MP3010M-EV

Features

USB 3.1 Gen1 camera solution with Tamron MP3010M-EV
Simultaneous HDMI video output
Compact and lightweight
High-sensitive 5MP 1/2.8-type Sony IMX335 STARVIS CMOS sensor
Supports all HD modes up to 1080p60
10x optical zoom – digital zoom up to 16x
Shutter speed 1/1 to 1/10,000 sec
Dimensions (L x W x H): 59 x 39 x 43mm
Remote camera control (VISCA) via TTL/RS-232/RS-485 comms port or USB 3.1 (UVC) port
Video output mode selected by DIP switches, UVC or VISCA control (over serial or USB connection)
Power supply over USB cable capability

Enquire About This Product

The lightweight Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP3010M-EV) offers 10x optical zoom and 16x digital zoom with simultaneous display of both HDMI and USB Video Class (UVC) v1.1 output.

The camera is based on the Tamron MP3010M-EV an extremely compact block camera that benefits from Tamron’s high quality optical design and low reflection coating technologies. It offers many sophisticated camera features like Electronic Image Stabilization (EIS), Wide Dynamic Range mode, Day/Night function (ICR), Noise Reduction (3D+2D) and many more.

USB Video output is enabled when the USB interface board is connected to a SuperSpeed USB 3.x host. On power up, the camera video mode may be selected by DIP switch settings on the board. Camera functions may also be controlled using UVC commands, or by sending VISCA commands over RS-485/RS-232/TTL or over the Harrier Virtual COM port (USB). The USB interface serves as (UVC) video output, USB based control input port and optional power supply. An example UVC video application (with source code and Visual studio projects for C++/CLI, C#, and VB) is available on request from Active Silicon.

Active Silicon also offers camera solutions with 3G-SDI/HD-SDI/HD-VLC™ or IP video output. For more information contact our team.

Camera Specification

Image sensor	1/2.8-type Sony IMX335 STARVIS CMOS sensor (progressive scan)
Effective no. of pixels	approx. 5.14M pixels
Pixel output (H x V)	1920 x 1080; 1280 x 720
Video format (HD)	1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.4, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum illumination	0.1 Lux (1/30sec, F1.8, 50%, Color, Typical) 0.025 Lux (1/30sec, F1.8, 50%, B&W, Typical)
Recommended illumination	100 Lux to 100,000 Lux
S/N ratio	More than 50dB
Gain	Auto / Manual
Shutter speed	1/1 to 1/10,000 sec
Sync system	Internal
Exposure compensation	-12dB to +12dB (total 13 steps)
Backlight compensation	ON / OFF
Gamma	4 gamma curves (standard, straight, narrow, wide)
Aperture control	16 steps
White balance	ATW1 (Narrow), ATW2 (Wide), One push, Manual (B, R), Indoor, Outdoor
AE (Auto exposure mode)	Auto, Manual, Priority Mode (shutter / iris)
Lens (wide to tele)	10x optical zoom, f=3.3 ~ 33mm, F1.8 ~ 3.4
Zoom mode	Standard / Variable / Direct
Zoom movement speed (wide to tele)	1.7 sec (focus tracking ON)
Digital zoom	Up to 16x
Focusing system	Auto, Manual, One Push, AF Sensitivity
Horizontal viewing angle (wide to tele)	59.2° (w) ~ 6.7° (t) (except when EIS is operated)
Minimum object distance (wide to tele)	Visible light: 10mm (wide) ~ 800mm (tele) 850nm: 10mm (wide) ~ 1200mm (tele)

Camera Functions

EIS (Electronic Image Stabilization)	OFF/ON
Wide-dynamic range (Gamma)	OFF/ON
Day/Night (ICR)	OFF/ON/AUTO
Defog	OFF/ON (Level: 1~3)
Noise reduction (3D + 2D)	OFF/ON (Level: 1~5)
Privacy zone mask	Up to 8 places
Slow shutter	OFF/ON (max 1 sec)
Picture effects (black white)	OFF/ON
Picture freeze	OFF/ON
Electronic flip (e-flip)	OFF/ON
Mirror image	OFF/ON
Temperature readout	Available
Title display	OFF/ON (20 characters/line, max. 12 lines)

Connector Specifications Harrier USB/HDMI Camera Interface Board

KEL30 Connector (J1)	The interface board is fitted with a 30-way miniature connector to link to the matching connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 100mm 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Different lengths are available.
Input/Output Connector (J2)	The interface board is fitted with an industry standard 4-way connector for VSync/PWM signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier USB/HDMI Camera Interface Board datasheet (download tab) for pin assignments and control options.
Power and Control Connector (J3)	The interface board is fitted with an industry standard 10-way connector for power and serial control. Connector type: JST SM10B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information). See Harrier USB/HDMI Camera Interface Board datasheet (download tab) for pin assignment and output options.
JTAG Connector (J4):	Test connector used in manufacturing for circuit verification.
HDMI Output Connector (J5)	The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected. Connector type: HDMI Type D (micro). Mating Connector: Standard micro HDMI cable. There is an additional HDMI video output directly on the camera body.
USB 3 Connector (J6)	This USB Type C connector provides a USB Video Class (UVC) v1.1 video stream for connection to a host PC. The connector also provides a UVC control port for camera control (optional). It can also provide power to the camera or board if the USB connection has a high enough current/power rating. Connector type: USB Type C (5 Gbps) Mating Connector: Standard USB 3.x Type A/C to Type C cable (5 Gbps min.)
Video and Control Mode DIP Switch (SW1)	The interface board is fitted with an 8-way DIP switch (SW1) to enable selection of camera video format on power-up, and VISCA camera control communication modes. See Harrier USB/HDMI Camera Interface Board datasheet (download tab) for the configuration of the DIP switch elements.
VISCA Control:	The serial communication is routed through the interface board directly to the camera. However, this serial signal is also connected to the camera interface board; extended VISCA commands (not used by the camera) may be used to control the interface board. For information on interface board operation using extended VISCA serial commands, refer to the Harrier USB/HDMI Camera Interface Board datasheet (download tab).
Additional Information	The HarrierControl camera software can be used to configure custom camera features on the Harrier USB/HDMI Camera Interface Board over the USB or serial connection.

Physical and Environmental Details

Power requirement	8V to 12V DC +/- 10%
Power consumption	approx. 3.5W (approx. 5.4W during motor operation – zoom and focus)
Operating temperature	0°C to +60°C (recommended: 0°C to +40°C)
Storage temperature	-40°C to +60°C
Operating humidity	20% to 80% (no condensation)
Storage humidity	20% to 90% (no condensation)
Dimensions (L x W x H)	59 x 39 x 43mm
Weight	86g

	Download	File Type	File Size
Datasheets	Datasheet Harrier USB/HDMI Camera Interface Board	pdf	1.04 MB
	Datasheet Tamron MP3010M-EV camera	pdf	98.57 KB
	Datasheet Harrier USB SDK	pdf	465.20 KB
Manuals & Quick Start Guides	Harrier USB/HDMI CIB QuickStart Guide v.1.92	pdf	735.92 KB
	Technical Reference Manual Tamron MP3010M-EV v1.4	pdf	2.38 MB

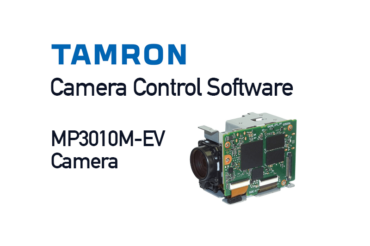

Software	Camera control software for Tamron MP3010M-EV - v1.00E	zip	74.58 KB
	HarrierControl Camera Software v.1.4.2	zip	15.21 MB
	Harrier USB SDK Software Development Kit - win64 v01.07.00	zip	16.91 MB
	Harrier USB Linux API v1.0.0 (PC only)	zip	455.45 KB
	Harrier USB Linux API v1.0.0 with ARM support	zip	3.46 MB
	Microsoft USB devices browser	zip	265.28 KB
CAD Drawings & Data	Mechanical Overview - AS-CIB-USBHDMI-002-3010-A (Note: 3D CAD Model available on request, please contact us)	pdf	622.64 KB
Other Downloads	Technical Note - Harrier USB and Media Foundation	pdf	147.14 KB
	Technical Note - Troubleshooting guide for Harrier camera interface boards	pdf	276.68 KB
	Brochure - Cameras for drones, UAVs and gimbals	N/A	N/A

Part number	Description
AS-CIB-USBHDMI-002-3010-A	Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP3010M); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM.
AS-CIB-USBHDMI-001-EVAL-A	Evaluation Kit for Harrier USB/HDMI. Includes power supply, board cables (AS-CIB-CBLKIT-003-A), micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB UART). Not included: Camera and camera interface board.
AS-TAMRON-MP3010M-EV	Tamron MP3010M-EV autofocus zoom block camera.
AS-CIB-USBHDMI-002-A	Harrier USB/HDMI Camera Interface Board for autofocus-zoom block cameras; provides simultaneous USB 3 video (UVC) and HDMI video output. Board only, no cables included.
AS-CIB-CBLKIT-003-A	Cable kit for AS-CIB-USBHDMI-002-A containing cables for J2 and J3 that connect to the Harrier Evaluation Board.
AS-CIB-USL30-100MM	30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C).
AS-CIB-USL30-50MM	30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C).
AS-CIB-FIXKIT-001-A	Plastic clip, screws and spacers for mounting AS-CIB-USBHDMI-002-A to Tamron MP3010M-EV.
