Product image Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9500L)

Click image to enlarge

Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9500L)

Part Number: AS-CIB-3GSDI-002-9500L-A

  • 3G-SDI camera solution with Sony FCB-EV9500L.
  • 30x optical zoom, 12x digital zoom.
  • 1/1.8″-type Sony IMX64AR STARVIS anti-reflective-coated CMOS sensor.
  • Supports all HD modes up to 1080p60.
  • HD-VLC™ output mode for long cable length applications.
  • Simultaneous analog video output (PAL/NTSC) in 720p50/59.94/60 modes.
  • Camera control using VISCA™ protocol over TTL/RS-232/RS-485 serial.
Enquire About This Product

  • Description

  • Product Specs

  • Downloads

  • Ordering Info

  • Video

Description

Products Specs

Downloads

Ordering Info

Video

The Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9500L) provides real-time 3G-SDI video with simultaneous analog video output. It features a 30x optical zoom, advanced autofocus performance and a larger 1/1.8”-type STARVIS anti-reflective-coated CMOS sensor, which guarantees high-quality imaging even in low-light conditions.

Based on the Sony FCB-EV9500L the camera offers a range of advanced camera features and functions; among others, it features VISCA command protocol, Flare Reduction, Noise Reduction (NR), Wide Dynamic Range Mode (Wide-D), Visibility Enhancer (VE), Defog, and  Super+ Image Stabilizer.

The camera can be controlled using the VISCA protocol with TTL, RS-232 or RS-485 serial communications. DIP switch settings control the selection of serial communication protocol, HD-VLC output and camera video output mode on power-up. The Full HD video output up to 1080p60 is SMPTE 274M and SMPTE 296M compliant.

Overcoming long cable distances is also not a problem, as the camera provides HD-VLC™ output, a unique CODEC technology that ensures real-time superior image quality over long cable lengths.

Active Silicon is an approved partner of Sony and the FCB-EV9500L and other Sony EV-series cameras are compatible with all Harrier camera interface boards. In addition to 3G-SDI output solutions, we also offer USB and Ethernet IP video output.

Related Products

Sony Camera

Image sensor

1/1.8″-type Sony IMX64AR STARVIS anti-reflective-coated CMOS sensor.

Number of effective pixels

4.17M Pixel

Output pixels (H x V)

1920 x 1080, 1280 x 720

Video format

1080p/60, 1080p/59.94, 1080p/50,
1080p/30, 1080p/29.97, 1080p/25,
1080i/60, 1080i/59.94, 1080i/50,
720p/60, 720p/59.94, 720p/50,
720p/30, 720p/29.97, 720p/25

Minimum illumination (50%, High Sensitivity mode ON)

ICR-Off mode: 0.009lx (shutter speed 1/30 sec), 0.0012lx (1/4 sec or 1/3 sec)
ICR-On mode: 0.00008lx (shutter speed 1/30 sec), 0.000005lx (1/4 sec or 1/3 sec, 30%)

Minimum illumination (50%, High Sensitivity mode OFF)

ICR-Off mode: 0.09lx (shutter speed 1/30 sec), 0.012lx (1/4 sec or 1/3 sec)
ICR-On mode: 0.00063lx (shutter speed 1/30 sec)

Recommended illumination

100lx to 100,000lx

Image S/N

50 dB (Weight On)

Gain

Auto / manual (0dB to 50.0dB), 0 to 28 steps

Shutter speed

1/1 sec to 1/10,000 sec, 22 steps

Sync system

Internal

Exposure control

0dB to ± 10.5dB, 15 steps

Backlight compensation

Yes

Gamma

Standard / straight gamma

Aperture control

16 steps

White balance

Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix / Auto / Outdoor Auto), Spot AWB

AE (Auto exposure mode)

Full Auto, Manual, Priority mode (shutter / iris), EV compensation, Spot AE, Slow AE

Zoom

30x Enhanced Optical Zoom
36x StableZoom*
12x Digital Zoom

*StableZoom increases the magnification by combining optical zoom and digital zoom.

Lens (wide to tele)

f=6.5mm to 162.5mm, F1.6 to F4.8

Zoom mode

Standard Mode / Variable Mode / Direct Mode

Zoom Movement Speed

Wide end to Tele end:
4.8 s (Focus Tracking ON), 2.9 s (Focus Tracking OFF)

Wide end to Digital 12x tele:
6.1 s (29.97p/59.94p), 6.4 s(25p/50p)

Digital wide to Digital 12x tele:
1.4 s (29.97p/59.94p), 1.6 s (25p/50p)

Focussing system

Auto focus (Normal AF, Interval AF, Zoom Trigger AF [sensitivity: normal, low]),
Manual (Standard, Variable, Direct),
One Push Trigger,
Full Scan One Push Trigger,
Near Limit,
IR Correction,
Spot Focus

Focus Movement Time

∞ to Near: 1.4 s

Horizontal viewing angle (wide to tele)

58.1° (Wide) to 2.3° (Tele)

Minimum object distance

100mm (Wide) to 1200mm (Tele)

Camera Functions

Auto ICR

Yes

Wide Dynamic Range (Wide-D)

Yes

Visibility enhancer

Yes

Defog

Yes (low / mid / high)

Noise reduction

Yes (3D + 2D / independent setting (3D, 2D)

Image stabilization

Yes: Super image stabilizer (Super/Super+)

Spot light avoidance

Yes

Motion detection

Yes

Privacy zone masking

Yes

Alarm

Yes

Slow AE response

Yes

Picture effects

Black & white (monochrome image)

Picture freeze

Yes

Electronic flip (e-flip)

Yes

Mirror image

Yes

Slow shutter

Yes

Temperature readout

Yes

Title display

Yes (20 characters / line, max. 11 lines)

Camera mode display

Yes (English)

Connector Specification Harrier 3G-SDI Camera Interface Board

KEL30 Connector (J1)

The interface board is fitted with a 30-way miniature connector to link to the video output connector on the camera.

Connector type: KEL USL00-30L.

Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length).

Input/Output Connector (J2)

The interface board is fitted with an industry standard 4-way connector for test pattern and reset control, plus VSync out.

Connector type: JST SM04B-SRSS-TB

Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information).

See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and control options.

Power and Control Connector (J3)

The interface board is fitted with an industry standard 9-way connector for power, serial control and analog video out.

Connector type: JST SM09B-SRSS-TB

Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information).

See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and output options.

JTAG Connector (J4)

Test connector used in manufacturing for circuit verification.

3G-SDI Output Connector (J5)

The interface board is fitted with a Hirose H.FL Micro Coaxial Connector (75 Ohm).

Connector type: Hirose Micro Coaxial Connector (Receptacle), part number H.FL-R-SMT(01).

Mating connector: Use mating cable with 75 Ohm characteristic impedance, for example Hirose part number H.FL75-2LP-084H-A-100. A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information).

Video and Control Mode DIP Switch (SW1)

The interface board is fitted with a 4-way DIP switch to select various video output and control modes.

The DIP switches to select the Video Format are read on power-up only. Therefore, to change mode using the DIP switches, power down the camera, set the switches and then power up the camera. DIP switches will only be effective for the operating modes supported by the camera currently in use.

See Harrier 3G-SDI Camera Interface Board datasheet for the configuration of the DIP switch SW1.

Communications Mode Selection (SW2)

The interface board is also fitted with a 2-way DIP switch to select the serial communications standard. It allows to choose between RS-232 VISCA communications, RS-485 VISCA comms with RS-485 termination enabled, RS-485 VISCA comms with RS-485 termination disabled and TTL VISCA communications.

See Harrier 3G-SDI Camera Interface Board datasheet for the details and configuration of the DIP switch SW2.

Digital Transmission Standard Selection (SW3)

The interface board is fitted with a 1-way DIP switch to select the SMPTE or HD-VLC digital output standards.

OFF = SMPTE compliant output.

ON = HD-VLC compressed output.

Interface

3G-SDI

Compliant with SMPTE274M and SMPTE296M.

Camera control interface

VISCA protocol (TTL, RS-232, RS-485)
Baud rate: 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, stop bit: 1-bit

Physical and Environmental Details

Power requirements

8V to 12V DC

Power consumption

TBD

Operating temperature

-5°C to +60°C (ambient environment)

Storage temperature

-20°C to +60°C

Relative humidity

20% to 80% non-condensing (operating and storage)

Dimensions (L x W x H)

Approx. 149 x 56 x 65.5mm

Weight

Approx. 469g
Download File Type File Size

Datasheets

 Datasheet Sony FCB-EV9500 camera pdf 491.84 KB
Datasheet Harrier 3G-SDI Camera Interface Board pdf 629.65 KB

Manuals & Quick Start Guides

 Harrier 3G-SDI CIB Quickstart Guide - with Sony FCB-EV series cameras v1.6.2.s pdf 525.05 KB
Sony FCB-EV9500L Technical Reference Manual pdf 1.61 MB

Software

 Sony FCB-EV9500 Camera Control Software zip 154.52 KB

CAD Drawings & Data

 Sony FCB-EV9500L Camera Technical Drawing png 170.65 KB

Other Downloads

 Technical Note - Coaxial cable selection for Harrier boards pdf 140.86 KB
Technical Note - Troubleshooting guide for Harrier camera interface boards pdf 235.42 KB
White Paper - High-Definition Long-Reach Video Transmission pdf 732.57 KB
Brochure - Cameras for drones, UAVs and gimbals pdf 2.85 MB

Ordering Information

Part number Description

AS-CIB-3GSDI-002-9500L-A

Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9500L); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request.

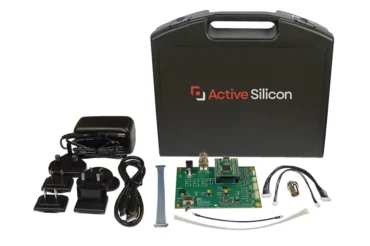

AS-CIB-3GSDI-002-EVAL-B

Evaluation Kit for Harrier 3G-SDI; also for the Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9500L). The kit contains power supply, cabling (AS-CIB-CBLKIT-002-B), micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB UART). Not included: Camera and camera interface board.

AS-SONY-FCB-EV9500L

Sony FCB-EV9500L autofocus-zoom block camera.

AS-CIB-3GSDI-002-A

Harrier 3G-SDI Camera Interface Board; additional analog composite output (when in 720p50/59.94/60 operating modes). Support for HD-VLC compression technology. Board only, no cables included.

AS-CIB-CBLKIT-002-B

Cable kit for AS-CIB-3GSDI-002-A containing H.FL micro coax cable, BNC adapter and control cables for J2 and J3.

AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C).

AS-CIB-USL30-50MM

30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C).

AS-CIB-BRK-007-A

Metal bracket, screws and spacers for mounting the AS-CIB-3GSDI-002-A to a Sony FCB-EV-series block camera.

HD video transmission over long distances

If you look for long cable length solutions that guarantee high quality HD video transmission over greater distances we recommend HD-VLC technology.
Check out our white paper on Long-reach HD video transmission technologies and our video:
