Harrier 30x AF-Zoom HDMI Camera (Sony FCB-EV9520L)

Part Number: AS-CIB-HDMI-001-9520L-A

Features

HDMI camera solution for the Sony FCB-EV9520L.
30x optical zoom, 12x digital zoom.
1/2.8”-type 2MP Sony IMX662 STARVIS 2 CMOS sensor.
Supports all HD modes up to 1080p60.
Camera control using VISCA™ protocol over TTL serial.
Video output mode selected by DIP switches or VISCA control.

Enquire About This Product

The Harrier 30x AF-Zoom HDMI Camera (Sony FCB-EV9520L) offers 30x optical zoom and 12x digital zoom with HDMI output. The video output is SMPTE 274M and SMPTE 296M compliant and all HD modes up to 1080p60 are supported.

Based on the Sony block camera FCB-EV9520L the camera guarantees high-quality imaging even in low-light conditions. It builds upon the market leading specifications of Sony’s world-renowned FCB Series features including new ones. It offers among others, Super Image Stabilizer, Spot Focus, Auto ICR, Wide Dynamic Range, which makes this camera solution suitable for a variety of demanding applications.

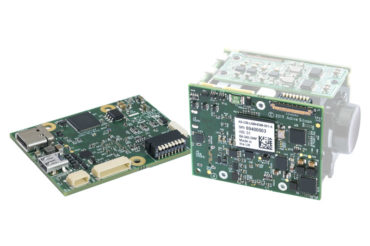

Active Silicon is an approved partner of Sony and the FCB-EV9520L and other Sony EV-series cameras are compatible with all Harrier camera interface boards. In addition to HDMI output solutions, we also offer USB/HDMI, 3G-SDI (incl. HD-VLC) or Ethernet IP video output.

Camera Features

Image sensor	1/2.8″-type Sony IMX662 STARVIS 2 CMOS Sensor
Number of effective pixels	2.130MP
Output pixels (H x V)	1920 x 1080, 1280 x 720
Video format	1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum illumination (50%, High Sensitivity mode ON)	ICR-Off mode: 0.009 lx (shutter speed 1/30 sec) 0.0012 lx (shutter speed 1/4 sec, 1/3 sec) ICR-On mode: 0.00008 lx (shutter speed 1/30 sec) 0.000005 lx (shutter speed 1/4 sec, 1/3 sec)
Minimum illumination (50%, High Sensitivity mode OFF)	ICR-Off mode: 0.09 lx (shutter speed 1/30 sec) 0.012 lx (shutter speed 1/4 sec, 1/3 sec) ICR-On mode: 0.00063 lx (shutter speed 1/30 sec)
Recommended illumination	100lx to 100,000lx
Image S/N	50 dB (Weight On)
Gain	Auto / manual (0dB to 50.0dB, 0 to 28 steps) Max. Gain Limit (10.7 to 50.0 dB), 6 to 28 step)
Shutter speed	1/1 sec to 1/10,000 sec, 22 steps
Sync system	Internal
Exposure control	0dB to ± 10.5dB, 15 steps
Backlight compensation	Yes
Gamma	Standard / straight gamma
Aperture control	16 steps
White balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix / Auto / Outdoor Auto)
AE (Auto exposure mode)	Full Auto, Manual, Priority mode (shutter / iris), EV compensation, Spot AE, Slow AE
Lens	30x optical zoom f=4.3mm (wide) to 129mm (tele), F1.6 to F4.7
Zoom movement speed	WIDE − TELE (59.94p/50p) 4.8 sec (Focus Tracking On) 3.0 sec (Focus Tracking Off) WIDE − TELE (29.97p/25p) 5.7 sec (Focus Tracking On) 3.0 sec (Focus Tracking Off) WIDE – Digital TELE (Digital 12×) 6.0 sec (59.94p mode) 6.3 sec (50p mode) 7.0 sec (29.97p mode) 7.3 sec (25p mode)
Zoom mode	Standard Mode / Variable Mode / Direct Mode
Digital zoom	12x (max 432x with “StableZoom”)
Focusing system	Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity: normal, low]) Manual (Standard, Variable, Direct), One Push Trigger, Near Limit, Full Scan One Push Trigger, ICR-on Correction, Spot Focus
Horizontal viewing angle (wide to tele)	Distortion compensation Off: 64.0° (Wide) to 2.4° (Tele) Distortion compensation On: 61.5° (Wide) to 2.3° (Tele)
Minimum object distance	10mm (Wide) to 1200mm (Tele)

Camera Functions

Auto ICR	Yes: ON (B&W/Color)
Wide Dynamic Range (Wide-D)	Yes
Visibility enhancer	Yes
Defog	Yes (low / mid / high)
Noise reduction	Yes (3D + 2D / independent setting (3D, 2D)
Image stabilization	Yes: Super image stabilizer (Super/Super+)
StableZoom	Yes
Spot light avoidance	Yes
Motion detection	Yes
Privacy zone masking	Yes
Alarm	Yes
Slow AE response	Yes
Picture effects	Black & white (monochrome image)
Picture freeze	Yes
Electronic flip (e-flip)	Yes
Mirror image	Yes
Slow shutter	Yes
Temperature readout	Yes
Title display	Yes (20 characters / line, max. 11 lines)
Camera mode display	Yes (English)

Connector Specifications (camera interface board)

KEL30 Connector (J1)	The interface board is fitted with a 30-way miniature connector to link to the matching connector on the camera. Connector type: KEL USL00-30L Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length).
Input/Output Connector (J2)	The interface board is fitted with an industry standard 4-way connector for VSync/PWM signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information tab). See Harrier HDMI Camera Interface Board datasheet (download tab) for pin assignments and control options.
Power and Control Connector (J3)	The interface board is fitted with an industry standard 10-way connector for power and serial control. Connector type: JST SM10B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information tab). See Harrier HDMI Camera Interface Board datasheet (download tab) for pin assignments and control options.
JTAG Connector (J4):	Test connector used in manufacturing for circuit verification.
HDMI Output Connector (J5)	The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected. Connector type: HDMI Type D (micro). Mating Connector: Standard micro HDMI cable.
Video and Control Mode DIP Switch (SW1)	The interface board is fitted with an 8-way DIP switch (SW1) to enable selection of camera video format on power-up. Switches 5-8 are reserved for future use. See Harrier HDMI Camera Interface Board datasheet (download tab) for the configuration of the DIP switch elements.
Status LED	The interface board is fitted with a multi-color LED to indicate camera status.

Physical and Environmental Details

Power requirements	8V to 12V DC
Power consumption	TBD
Operating temperature	0°C to +60°C (ambient environment).
Storage temperature	-20°C to +60°C
Relative humidity	20% to 80% non-condensing (operating and storage)
Dimensions (L x W x H)	114 x 50.0 x 62.0mm (L x W x H).
Weight	approximately 275g

Interface

HDMI

HDMI output is enabled when an HDMI cable is plugged in. The video mode of the HDMI output is the same as the output of the camera. To change the mode of the HDMI output the mode of the camera should be changed using VISCA serial commands or DIP switch settings (and power cycling). Video modes up to 1080p60 are supported.

Compliant with HDMI specification v.1.4a.

Camera control interface

VISCA protocol (CMOS 5V level)
Baud rate: 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, stop bit: 1-bit

	Download	File Type	File Size
Datasheets	Brochure Sony FCB-EV9520L camera	pdf	1.59 MB
	Datasheet Harrier HDMI Camera Interface Board	pdf	702.90 KB
Manuals & Quick Start Guides	Harrier HDMI CIB Quickstart Guide v1.6.2	pdf	814.58 KB
	Sony FCB-EV9520L Technical Reference Manual	pdf	2.04 MB
Software	Sony FCB-EV9500 and EV9520L Camera Control Software	zip	530.75 KB
CAD Drawings & Data	Sony FCB-EV9520L Camera Technical Drawing	png	821.85 KB
Other Downloads	Technical Note - Troubleshooting guide for Harrier camera interface boards	pdf	276.68 KB
	Brochure - Cameras for drones, UAVs and gimbals	pdf	2.84 MB

Part number	Description
AS-CIB-HDMI-001-9520L-A	Harrier 30x AF-Zoom HDMI Camera (Sony FCB-EV9520L); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request.
AS-CIB-USBHDMI-001-EVAL-A	Evaluation Kit for Harrier USB/HDMI, including the Harrier 30x AF-Zoom HDMI Camera (Sony FCB-EV9520L). The kit contains power supply, board cables (AS-CIB-CBLKIT-003-A), micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB UART). Not included: Camera and camera interface board.
AS-SONY-FCB-EV9520L	Sony FCB-EV9520L block camera.
AS-CIB-HDMI-001-A	Harrier HDMI Camera Interface Board. Board only, no cables included.
AS-CIB-CBLKIT-003-A	Cable kit for AS-CIB-HDMI-001-A containing cables for J2, J3, and J4 that connect to the Harrier Evaluation Board.
AS-CIB-USL30-100MM	30-way micro-coax cable for connecting the interface board (J1) to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C).
AS-CIB-USL30-50MM	30-way micro-coax cable for connecting the interface board (J1) to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C).
AS-CIB-BRK-007-A	Metal bracket, screws and spacers for mounting Harrier camera interface boards to the Sony FCB-EV9520L camera.
