Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV7520/EV7520A)
Part Number: AS-CIB-3GSDI-002-7520-A | AS-CIB-3GSDI-002-7520A-A
- 3G-SDI camera solution with Sony FCB-EV7520/EV7520A.
- 30x optical zoom, 12x digital zoom.
- 1/2.8”-type Exmor R CMOS progressive scan image sensor.
- Supports all HD modes up to 1080p60.
- HD-VLC™ output mode for long cable length applications.
- Simultaneous analog video output (PAL/NTSC) in 720p50/59.94/60 modes.
- Camera control using VISCA™ protocol over TTL/RS-232/RS-485 serial.
-
Description
-
Product Specs
-
Downloads
-
Ordering Info
-
Video
Description
Products Specs
Downloads
Ordering Info
Video
The Sony FCB-EV7520 and -EV7520A cameras are now end-of-life. Please contact sales for remaining stock and alternative products. We recommend the Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9520L) as their improved successor.
The Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV7520 or -EV7520A) offers 30x optical zoom and 12x digital zoom. It provides real-time 3G-SDI video output over a 75 Ohm (H.FL) micro-coax cable. Additionally, it features HD-VLC™ compressed video technology for long cable length applications and (when in SD modes) simultaneous analog output with square pixels. The camera offers SMPTE 274M and SMPTE 296M compliant video output up to 1080p60 Full HD.
Based on the Sony FCB-EV7520/EV-7520A camera with a back-illuminated CMOS sensor, the camera guarantees high-quality imaging even in low-light conditions. It builds upon the market leading specifications of Sony’s world-renowned FCB Series features including Advanced Noise Reduction, Auto ICR, Spherical Privacy Zone Masking and Wide Dynamic Range, which makes this camera solution suitable for a variety of demanding applications. The camera can be controlled using the VISCA protocol with TTL, RS-232 or RS-485 serial communications. DIP switch settings control the selection of serial communication protocol, HD-VLC output and camera video output mode on power-up.
The Sony FCB-EV7520 and FCB-EV7520A are also available with USB, HDMI or Ethernet IP video output, instead of 3G-SDI output.
Related Products
Sony Camera
Image sensor |
1/2.8”-type Exmor R CMOS sensor |
Number of effective pixels |
2130K |
Output pixels (H x V) |
1920 x 1080, 1280 x 720 |
Video format |
1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
Minimum illumination (50%, High Sensitivity mode ON) |
ICR-Off mode: 0.01lx (shutter speed 1/30 sec), 0.0013lx (1/4 sec or 1/3 sec) |
Minimum illumination (50%, High Sensitivity mode OFF) |
ICR-Off mode: 0.1lx (shutter speed 1/30 sec), 0.013lx (1/4 sec or 1/3 sec) |
Recommended illumination |
100lx to 100,000lx |
Gain |
Auto / manual (0dB to 50.0dB, 0 to 28 steps) |
Shutter speed |
1/1 sec to 1/10,000 sec, 22 steps |
Sync system |
Internal |
Exposure compensation |
0dB to ± 10.5dB, 15 steps |
Backlight compensation |
Yes |
Gamma |
Standard / straight |
Aperture control |
16 steps |
White balance |
Auto, ATW, indoor, outdoor, one push WB, manual WB, outdoor auto, sodium vapor lamp (Fix / auto / outdoor auto) |
AE (Auto exposure mode) |
Full auto, manual, priority mode (shutter / iris), EV compensation, spot exposure, slow AE |
Lens (wide to tele) |
30x optical zoom f=4.3mm to 129mm, F1.6 to F4.7 |
Zoom mode |
Standard mode / variable mode / direct mode |
Digital zoom |
12x (max 360x with optical zoom) |
Zoom movement speed - optical wide to optical tele |
5.0 sec (focus tracking ON), 2.5 sec (focus tracking OFF) [FCB-EV7520A] |
Zoom movement speed - optical wide to digital 12x tele |
7.0 sec (29.97p / 59.94p), 7.4 sec (25p / 50p) [FCB-EV7520A] |
Zoom movement speed - digital wide to digital 12x tele |
2.1 sec (29.97p / 59.94p), 2.5 sec (25p / 50p) [FCB-EV7520A] |
Focusing system |
Auto focus (normal AF, interval AF, zoom trigger AF [sensitivity: normal, low]) |
Horizontal viewing angle (1080p / 1080i mode) (wide to tele) |
63.7° (Wide) to 2.3° (Tele) |
Horizontal viewing angle (720p mode) (wide to tele) |
63.7° (Wide) to 2.3° (Tele) |
Minimum object distance |
10mm (Wide) to 1200mm (Tele) |
Camera Functions
Auto ICR |
Yes |
Wide-D |
Yes |
Visibility enhancer |
Yes |
Defog |
Yes (low / mid / high) |
Noise reduction |
Yes (3D + 2D / independent setting (3D, 2D) |
Image stabilization |
Yes |
StableZoom |
Yes |
Flicker reduction |
Yes (FCB-EV7520A only). |
Spot light avoidance |
Yes (FCB-EV7520A only). |
Digital output |
Yes |
Motion detection |
Yes |
Spherical privacy zone masking |
Yes |
Alarm |
Yes |
Slow AE response |
Yes |
Picture effects |
Black & white (monochrome image) |
Picture freeze |
Yes |
Electronic flip (e-flip) |
Yes |
Mirror image |
Yes |
Slow shutter |
Yes |
Temperature readout |
Yes |
Title display |
Yes (20 characters / line, max. 11 lines) |
Camera mode display |
Yes (English) |

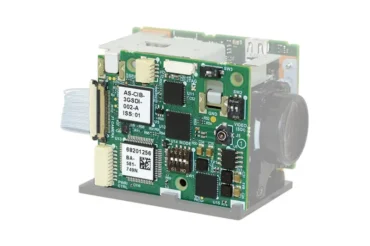

Connector Specification Harrier 3G-SDI Camera Interface Board
KEL30 Connector (J1) |
The interface board is fitted with a 30-way miniature connector to link to the video output connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length). |
Input/Output Connector (J2) |
The interface board is fitted with an industry standard 4-way connector for test pattern and reset control, plus VSync out. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and control options. |
Power and Control Connector (J3) |
The interface board is fitted with an industry standard 9-way connector for power, serial control and analog video out. Connector type: JST SM09B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and output options. |
Analog Video Out (Pin 3, J3) |
Standard resolution composite analog is simultaneously available in HD modes 720p50 (for PAL) and 720p60/59.94 (for NTSC). There are two options for the analog output, selectable via serial control: (a) the 1280 pixel wide HD image can be cropped to 960 wide, by cropping a 120 pixel strip off each side to make a 4:3 aspect ratio Standard Definition (SD) signal. (b) by pre-warping the image, such that when displayed on a HD monitor in the monitor’s stretch-to-fit mode, the original full-width HD signal will be displayed correctly at 16:9 aspect ratio. Both methods ensure the displayed pixels remain square and that the image is not distorted. |
JTAG Connector (J4) |
Test connector used in manufacturing for circuit verification. |
3G-SDI Output Connector (J5) |
The interface board is fitted with a Hirose H.FL Micro Coaxial Connector (75 Ohm). Connector type: Hirose Micro Coaxial Connector (Receptacle), part number H.FL-R-SMT(01). Mating connector: Use mating cable with 75 Ohm characteristic impedance, for example Hirose part number H.FL75-2LP-084H-A-100. A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). |
Video and Control Mode DIP Switch (SW1) |
The interface board is fitted with a 4-way DIP switch to select various video output and control modes. The DIP switches to select the Video Format are read on power-up only. Therefore, to change mode using the DIP switches, power down the camera, set the switches and then power up the camera. DIP switches will only be effective for the operating modes supported by the camera currently in use. See Harrier 3G-SDI Camera Interface Board datasheet for the configuration of the DIP switch SW1. |
Communications Mode Selection (SW2) |
The interface board is also fitted with a 2-way DIP switch to select the serial communications standard. It allows to choose between RS-232 VISCA communications, RS-485 VISCA comms with RS-485 termination enabled, RS-485 VISCA comms with RS-485 termination disabled and TTL VISCA communications. See Harrier 3G-SDI Camera Interface Board datasheet for the details and configuration of the DIP switch SW2. |
Digital Transmission Standard Selection (SW3) |
The interface board is fitted with a 1-way DIP switch to select the SMPTE or HD-VLC digital output standards. OFF = SMPTE compliant output. ON = HD-VLC compressed output. |
Status LED |
The interface board is fitted with a multi-color LED to indicate camera status. |
Interface
3G-SDI |
Compliant with SMPTE274M and SMPTE296M. |
Camera control interface |
VISCA protocol (TTL, RS-232, RS-485) |
Physical and Environmental Details
Power requirements |
8V to 12V DC |
Power consumption |
3.8W – Typical power with static view at 1080p60, values will vary with camera mode and with camera focus/zoom motor operations. |
Operating temperature |
-5°C to +60°C (ambient environment) |
Storage temperature |
-20°C to +60°C |
Relative humidity |
20% to 80% non-condensing (operating and storage) |
Dimensions (L x W x H) |
114 x 50.0 x 62.0mm |
Weight |
Approx. 280g |
| Download | File Type | File Size | |
|---|---|---|---|
Datasheets |
Datasheet Sony FCB-EV7520 camera | 2.19 MB | |
| Datasheet Sony FCB-EV7520A camera | 1.22 MB | ||
| Datasheet Harrier 3G-SDI Camera Interface Board | 637.23 KB | ||
Manuals & Quick Start Guides |
Harrier 3G-SDI CIB Quickstart Guide - with Sony FCB-EV7520 v1.6.2.s | 525.05 KB | |
| Sony FCB-EV7520 Technical Reference Manual | 2.83 MB | ||
| Sony FCB-EV7520A Technical Reference Manual | 2.48 MB | ||
Software |
Sony FCB-EV7520 and -EV7520A Camera Control Software v.5.1.0.2 | zip | 160.96 KB |
CAD Drawings & Data |
Sony FCB-EV7520A Camera Technical Drawing | jpg | 701.08 KB |
Other Downloads |
Technical Note - Coaxial cable selection for Harrier boards | 140.86 KB | |
| Technical Note - Troubleshooting guide for Harrier camera interface boards | 235.42 KB | ||
| White Paper - High-Definition Long-Reach Video Transmission | 732.57 KB |
Ordering Information
| Part number | Description |
|---|---|
|
AS-CIB-3GSDI-002-7520-A |
Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV7520); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request. Please use the part number AS-CIB-3GSDI-002-7520A-A for ordering the combination with the Sony FCB-EV7520. |
|
AS-CIB-3GSDI-002-EVAL-B |
Evaluation Kit for Harrier 3G-SDI, including the Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV7520/A). The kit contains power supply, cabling (AS-CIB-CBLKIT-002-B), micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB UART). Not included: Camera and camera interface board. |
|
AS-SONY-FCB-EV7520 |
Sony FCB-EV7520 autofocus-zoom block camera. |
|
AS-SONY-FCB-EV7520A |
Sony FCB-EV7520A autofocus-zoom block camera. |
|
AS-CIB-3GSDI-002-A |
Harrier 3G-SDI Camera Interface Board. Analog composite output (when in 720p50/59.94/60 operating modes). Support for HD-VLC compression technology. Board only, no cables included. |
|
AS-CIB-CBLKIT-002-B |
Cable kit for AS-CIB-3GSDI-002-A containing H.FL micro coax cable, BNC adapter and control cables for J2 and J3. |
|
AS-CIB-USL30-100MM |
30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C). |
|
AS-CIB-USL30-50MM |
30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C). |
|
AS-CIB-BRK-007-A |
Metal bracket, screws and spacers for mounting the AS-CIB-3GSDI-002-A to a Sony FCB-EV7520 or FCB-EV7520A block camera. |
HD video transmission over long distances
If you look for long cable length solutions that guarantee high quality HD video transmission over greater distances we recommend HD-VLC technology.
Check out our white paper on Long-reach HD video transmission technologies and our video:
