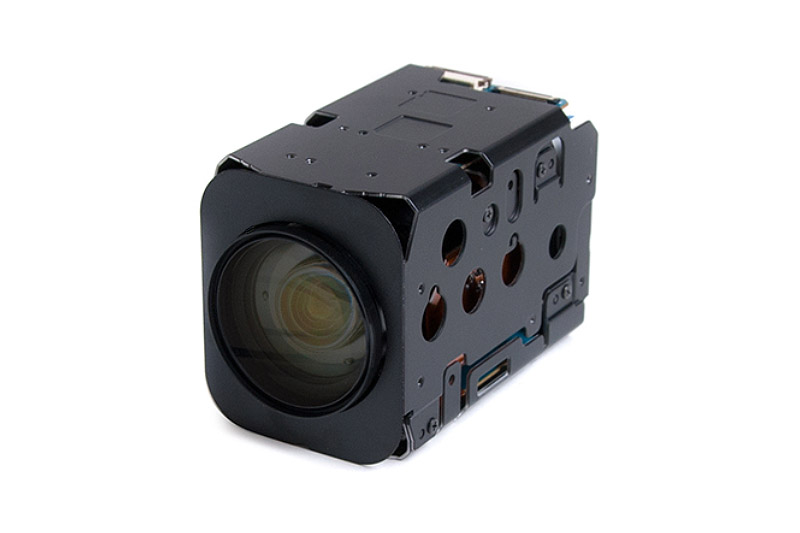

Product photo AS-Sony-FCB-EV7520A-camera

Click image to enlarge

Sony FCB-EV7520 and -EV7520A

Part Number: AS-SONY-FCB-EV7520 | AS-SONY-FCB-EV7520A

  • Autofocus-zoom camera.
  • High performance 30x optical zoom, 12x digital zoom.
  • F1.6 aperture.
  • Full HD 1920 x 1080 60 fps output.
  • Dimensions (L x W x H): 89.7 x 50.0 x 60.0mm.
  • HD Digital image output (LVDS).
  • Visibility Enhancer function.
  • 1/2.8”-type Exmor R Sony CMOS image sensor.
  • STARVIS back-illuminated pixel technology.
  • Shutter speed 1/1 to 1/10,000 sec.
  • Compatible with all Active Silicon Harrier camera interface boards.
Enquire About This Product

  • Description

  • Product Specs

  • Downloads

  • Ordering Info

Description

Products Specs

Downloads

Ordering Info

The Sony FCB-EV7520 and -EV7520A cameras are now end-of-life. Please contact sales for remaining stock and alternative products. We recommend the Sony FCB-EV9520L as their improved successor.

The FCB-EV7520 and -EV7530A autofocus zoom cameras from Sony feature a 30x optical zoom lens. The back-illuminated Exmor R sensor with 0.01 lx minimum illumination enables customers to capture high-fidelity images even in very low-light scenarios.

Both cameras provide an upgrade migration path for the 720p FCB-EV5500 and 20x Optical Zoom EV series variants. The FCB-EV7520/EV7520A offer many sophisticated camera functions. Among others, the camera modules feature VISCA command protocol, Advanced Noise Reduction, Auto ICR, Spherical Privacy Zone Masking and Wide Dynamic Range. These market leading features are suitable for a variety of demanding applications.

Related Products

Camera

Image sensor

1/2.8”-type Exmor R CMOS sensor

Number of effective pixels

2130K

Output pixels (H x V)

1920 x 1080, 1280 x 720

Video format

1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25

Minimum illumination (50%, High Sensitivity mode ON)

ICR-Off mode: 0.01lx (shutter speed 1/30 sec), 0.0013lx (1/4 sec or 1/3 sec)
ICR-On mode: 0.0015lx (shutter speed 1/30 sec), 0.0008lx (1/4 sec or 1/3 sec, 30%)

Minimum illumination (50%, High Sensitivity mode OFF)

ICR-Off mode: 0.1lx (shutter speed 1/30 sec), 0.013lx (1/4 sec or 1/3 sec)
ICR-On mode: 0.006lx (shutter speed 1/30 sec)

Recommended illumination

100lx to 100,000lx

Gain

Auto / manual (0dB to 50.0dB, 0 to 28 steps)

Shutter speed

1/1 sec to 1/10,000 sec, 22 steps

Sync system

Internal

Exposure compensation

0dB to ± 10.5dB, 15 steps

Backlight compensation

Yes

Gamma

Standard / straight

Aperture control

16 steps

White balance

Auto, ATW, indoor, outdoor, one push WB, manual WB, outdoor auto, sodium vapor lamp (Fix / auto / outdoor auto)

AE (Auto exposure mode)

Full auto, manual, priority mode (shutter / iris), EV compensation, spot exposure, slow AE

Lens (wide to tele)

30x optical zoom f=4.3mm to 129mm, F1.6 to F4.7

Zoom mode

Standard mode / variable mode / direct mode

Digital zoom

12x (max 360x with optical zoom)

Zoom movement speed - optical wide to optical tele

5.0 sec (focus tracking ON), 2.5 sec (focus tracking OFF) [FCB-EV7520A]
4.6 sec (focus tracking ON), 3.2 sec (focus tracking OFF) [FCB-EV7520]

Zoom movement speed - optical wide to digital 12x tele

7.0 sec (29.97p / 59.94p), 7.4 sec (25p / 50p) [FCB-EV7520A]
6.7 sec (29.97p / 59.94p), 7.1 sec (25p / 50p) [FCB-EV7520]

Zoom movement speed - digital wide to digital 12x tele

2.1 sec (29.97p / 59.94p), 2.5 sec (25p / 50p) [FCB-EV7520A]
2.2 sec (29.97p / 59.94p), 2.7 sec (25p / 50p) [FCB-EV7520]

Focusing system

Auto focus (normal AF, interval AF, zoom trigger AF [sensitivity: normal, low])
Manual (standard, variable, direct), one push trigger, near limit, full scan one push trigger, IR correction

Horizontal viewing angle (1080p / 1080i mode) (wide to tele)

63.7° (Wide) to 2.3° (Tele)

Horizontal viewing angle (720p mode) (wide to tele)

63.7° (Wide) to 2.3° (Tele)

Minimum object distance

10mm (Wide) to 1200mm (Tele)

Functions

Auto ICR

Yes

Wide-D

Yes

Visibility enhancer

Yes

Defog

Yes (low / mid / high)

Noise reduction

Yes (3D + 2D / independent setting (3D, 2D)

Image stabilization

Yes

StableZoom

Yes

Flicker reduction

Yes (FCB-EV7520A only).

Spot light avoidance

Yes (FCB-EV7520A only).

Digital output

Yes

Motion detection

Yes

Spherical privacy zone masking

Yes

Alarm

Yes

Slow AE response

Yes

Picture effects

Black & white (monochrome image)

Picture freeze

Yes

Electronic flip (e-flip)

Yes

Mirror image

Yes

Slow shutter

Yes

Temperature readout

Yes

Title display

Yes (20 characters / line, max. 11 lines)

Camera mode display

Yes (English)

General

Power requirements

6.0V to 12.0V

Power consumption

3.2W (when the motor operates: 4.0W)

Operating temperature

-5°C to +60°C

Storage temperature

-20°C to +60°C

Operating humidity

20% to 80% (absolute humidity: 36 g/m3)

Storage humidity

20% to 95% (absolute humidity: 36 g/m3)

Dimensions (L x W x H)

89.7 x 50.0 x 60.0mm

Weight

Approx. 250g

Interface

Video output (HD)

Digital: Y / Pb / Pr 4:2:2 (LVDS)
(Y: 8-bit, C: 8-bit, Vsync, Hsync, field, clock) (SMPTE274M / SMPTE296M)

Camera control interface

VISCA protocol (CMOS 5V level)
Baud rate: 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, stop bit: 1-bit
Download File Type File Size

Datasheets

 Datasheet Sony FCB-EV7520 camera pdf 2.19 MB
Datasheet Sony FCB-EV7520A camera pdf 1.22 MB

Manuals & Quick Start Guides

 Sony FCB-EV7520 Technical Reference Manual pdf 2.83 MB
Sony FCB-EV7520A Technical Reference Manual pdf 2.48 MB

Software

 Sony FCB-EV7520 and -EV7520A Camera Control Software v.5.1.0.2 zip 160.96 KB

CAD Drawings & Data

 Sony FCB-EV7520A Technical Drawing jpg 701.08 KB

Ordering Information

Part number Description

AS-SONY-FCB-EV7520

Sony FCB-EV7520 autofocus-zoom camera.

AS-SONY-FCB-EV7520A

Sony FCB-EV7520A autofocus-zoom camera.

AS-CIB-3GSDI-002-7520A-A

Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV7520A).

Please use the part number AS-CIB-3GSDI-002-7520-A for ordering the combination with the Sony FCB-EV7520.

AS-CIB-3GSDI-002-A

Harrier 3G-SDI Camera Interface Board. Analog composite output (when in 720p50/59.94/60 operating modes). Support for HD-VLC compression technology. Board only, no cables included.

AS-CIB-USBHDMI-002-7520A-A

Harrier 30x AF-Zoom USB/HDMI Camera (Sony FCB-EV7520A).

Please use the part number AS-CIB-USBHDMI-002-7520-A for ordering the combination with the Sony FCB-EV7520.

AS-CIB-USBHDMI-002-A

Harrier USB/HDMI Camera Interface Board for autofocus-zoom block cameras; provides simultaneous USB 3 video (UVC) and HDMI video output. Board only, no cables included.

AS-CIB-HDMI-001-7520A-A

Harrier 30x AF-Zoom HDMI Camera (Sony FCB-EV7520A).

Please use the part number AS-CIB-HDMI-001-7520-A for ordering the combination with the Sony FCB-EV7520.

AS-CIB-HDMI-001-A

Harrier HDMI Camera Interface Board. Board only, no cables included.

AS-CIB-IP-00x-7520A-A

Harrier 30x AF-Zoom IP Camera (Sony FCB-EV7520A).

Please use the part number AS-CIB-IP-00x-7520-A for ordering the combination with the Sony FCB-EV7520.

[x= 1 (regular, Ethernet), 2 (wireless, Ethernet), 3 (regular, PoE), 4 (wireless, PoE)]

AS-CIB-USL30-100MM

30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-010-C).

AS-CIB-USL30-50MM

30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C).

AS-CIB-BRK-007-A

Metal bracket, screws and spacers for mounting Harrier camera interface boards to Sony FCB-EV7520 or -EV7520A.
