Harrier 10x AF-Zoom USB/HDMI Camera (MP1010 / MP1110)
Part Number: AS-CIB-USBHDMI-002-1010-A | AS-CIB-USBHDMI-002-1110-A
- USB 3.1 Gen1 and HDMI camera solution with Tamron MP1010M or MP1110M.
- Lightweight and compact 4 Megapixel camera.
- 10x optical zoom, 16x digital zoom.
- 1/3-type CMOS progressive scan image sensor.
- Supports all HD modes up to 1080p60.
- Simultaneous display on both video outputs.
- Remote camera control (VISCA) via TTL/RS-232/RS-485 comms port or USB 3.1 (UVC) port.
- Video output mode selected by DIP switches, UVC or VISCA control (over serial or USB connection).
- Power supply over USB cable capability.
-
Description
-
Product Specs
-
Downloads
-
Ordering Info
Description
Products Specs
Downloads
Ordering Info
The Tamron MP1010M or MP1110M cameras are end-of-life. Please contact sales for remaining stock and alternative products. We recommend the Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP3010M-EV) as their improved successor. Lighter and with nearly identical dimensions, it is still the smallest AF-Zoom camera on the market.

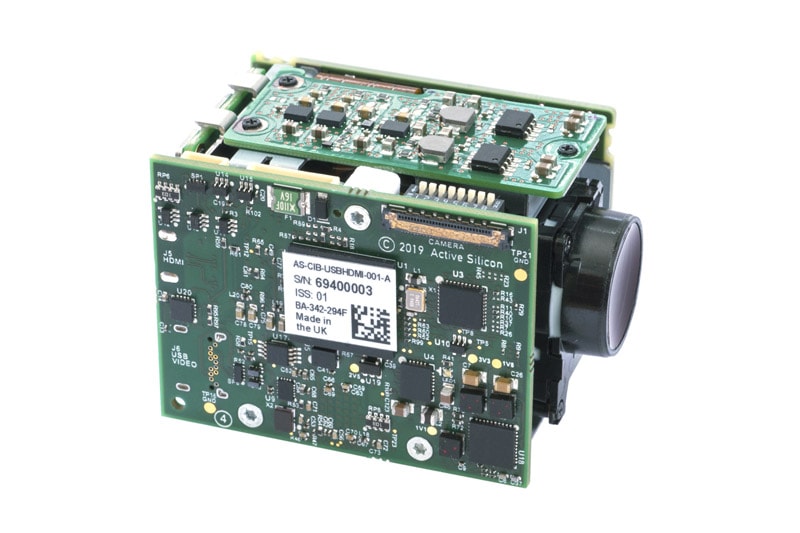

The Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP1010M / MP1110M) offers 10x optical zoom and 16x digital zoom with simultaneous display of both HDMI and USB Video Class (UVC) v1.1 output.
The camera is based on the Tamron MP1010M or Tamron MP1110M and comes with optical vibration compensation (-VC version), or without this feature (-WP version). This lightweight, high image-quality block camera solution is extremely compact, measuring only 58.43 x 34.7 x 41.5mm and weighing only 81g. It features SMPTE 274M and SMPTE 296M compliant video output up to 1080p60 Full HD.
USB Video output is enabled when the USB interface board is connected to a SuperSpeed USB 3.x host. The HDMI output is enabled when an HDMI cable is connected. On power up, the camera video mode may be selected by DIP switch settings on the board. Camera video modes, along with other functions, may also be controlled by sending VISCA commands over RS-485/RS-232/TTL or over the Harrier Virtual COM port, or using UVC commands. The USB interface serves as (UVC) video output, USB based control input port and optional power supply. An example UVC video application (with source code and Visual studio projects for C++/CLI, C#, and VB) is available on request from Active Silicon.
Benefiting from Tamron’s high quality optical design and low reflection coating technologies, this compact autofocus-zoom camera offers Wide Dynamic Range mode, 3D noise reduction, keystone correction, motion detection and many other sophisticated camera features.
Active Silicon also offers camera solutions with 3G-SDI/HD-SDI/HD-VLC™ video output and HDMI or USB only output. For more information contact our team.
Related Products
Camera Specification
Image sensor |
1/3-type CMOS (progressive scan) |
Effective no. of pixels |
Approx. 4,080,000 pixels |
Pixel output (H x V) |
1920 x 1080; 1280 x 720 |
Video format (HD) |
1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25, 1080p/60 (MP1110M only), 1080p/50 (MP1110M only) |
Minimum illumination |
0.5lx (1/30 sec, F1.8, 50%) |
Recommended illumination |
100lx to 100,000lx |
S/N ratio |
More than 50dB |
Gain |
Auto / manual |
Shutter speed |
1/1 to 1/10,000 sec |
Sync system |
Internal |
Exposure compensation |
-12dB to +12dB (total 13 steps) |
Backlight compensation |
ON / OFF |
Gamma |
Standard / straight |
Aperture control |
16 steps |
White balance |
ATW1 (narrow), ATW2 (wide), one push, manual (B, R) |
AE (Auto exposure mode) |
Auto, manual, priority mode (shutter / iris) |
Lens (wide to tele) |
10x optical zoom f=3.3 to 33.0mm F1.8 to 3.4 |
Zoom mode |
Standard / variable / direct |
Zoom movement speed (wide to tele) |
1.4 sec (focus tracking ON) |
Digital zoom |
Up to 16x |
Focusing system |
Auto, manual, one push, AF sensitivity |
Horizontal viewing angle (wide to tele) |
58.2° to 6.9° (Tamron MP1010M) |
Minimum object distance (wide to tele) |
10mm to 800mm |
Camera Functions
VC (Vibration Compensation) |
Available |
Wide-D |
Available |
Defog |
Available |
Noise reduction (3D + 2D) |
Available |
Digital output |
Available |
Privacy zone masking |
Available |
Slow shutter |
Available |
Picture effects (black white) |
Available |
Picture freeze |
Available |
Electronic flip (e-flip) |
Available |
Mirror image |
Available |
Title display |
Available |
Test pattern |
Available |
Crosshairs |
Available |
Connector Specification
KEL30 Connector (J1) |
The interface board is fitted with a 30-way miniature connector to link to the matching connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length). |
Input/Output Connector (J2) |
The interface board is fitted with an industry standard 4-way connector for VSync signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier USB/HDMI Camera Interface Board datasheet for pin assignments and control options. |
Power and Control Connector (J3) |
The interface board is fitted with an industry standard 10-way connector for power and serial control. Connector type: JST SM10B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier USB/HDMI Camera Interface Board datasheet for pin assignment and output options. |
JTAG Connector (J4): |
Test connector used in manufacturing for circuit verification. |
HDMI Output Connector (J5) |
The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected. Connector type: HDMI Type D (micro). Mating Connector: Standard micro HDMI cable. |
USB 3.0 Connector (J6) |
This USB Type C connector provides a USB Video Class (UVC) v1.1 video stream for connection to a host PC. The connector also provides a UVC control port for camera control (optional). It can also provide power to the camera or board if the USB connection has a high enough current/power rating. Connector type: USB Type C (5 Gbps) Mating Connector: Standard USB 3.x Type A/C to Type C cable (5 Gbps min.) |
Video and Control Mode DIP Switch (SW1) |
The interface board is fitted with an 8-way DIP switch (SW1) to enable selection of camera video format on power-up, and VISCA camera control communication modes. See Harrier USB/HDMI Camera Interface Board datasheet for the configuration of the DIP switch elements. |
VISCA Control: |
The VISCA serial signal is routed through the interface board and to the camera. However, this serial signal is also connected to the camera interface board; extended VISCA commands (not used by the camera) may be used to control the interface board. For information on interface board operation using extended VISCA serial commands, refer to the Harrier USB/HDMI Camera Interface Board datasheet. |
Additional Information
HarrierControl camera software |
The HarrierControl camera software can also be used to configure the custom camera support on the Harrier USB/HDMI Camera Interface Board over the USB connection. |
Physical and Environmental Details
Power requirement |
8V to 12V DC at J3, or 5V at J6 (USB) |
Power consumption |
4.2W – Typical power with static view at 1080p60 and USB/HDMI outputs enabled, values will vary with camera mode and camera focus/zoom motor operations. |
Operating temperature |
0°C to +60°C (ambient environment). |
Storage temperature |
-40°C to +60°C |
Operating humidity |
20% to 80% (no condensation) |
Dimensions (L x W x H) |
58.4mm x 34.7mm x 41.5mm (L x W x H) |
Weight |
93g |
Status LED |
The interface board on the camera has a multi-color LED to indicate camera status. |
Ordering Information
| Part number | Description |
|---|---|
|
AS-CIB-USBHDMI-002-1010-A |
Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP1010M-VC); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request. |
|
AS-CIB-USBHDMI-002-1010WP-A |
Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP1010M-WP); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request. |
|
AS-CIB-USBHDMI-002-1110-A |
Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP1110M-VC); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request. |
|
AS-CIB-USBHDMI-002-1110WP-A |
Harrier 10x AF-Zoom USB/HDMI Camera (Tamron MP1110M-WP); includes 100mm 30-way micro-coax cable AS-CIB-USL30-100MM, 50mm available upon request. |
|
AS-CIB-USBHDMI-001-EVAL-A |
Evaluation Kit for Harrier USB/HDMI. Includes power supply, board cables (AS-CIB-CBLKIT-003-A), micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB UART). Not included: Camera and camera interface board. |
|
AS-TAMRON-MP1010M-VC |
Tamron MP11010M-VC autofocus zoom block camera. |
|
AS-TAMRON-MP1010M-WP |
Tamron MP1010M-WP autofocus zoom block camera. Camera without optical vibration compensation. |
|
AS-CIB-USBHDMI-002-A |
Harrier USB/HDMI Camera Interface Board for autofocus-zoom block cameras; provides simultaneous USB 3 video (UVC) and HDMI video output. Board only, no cables included. |
|
AS-CIB-CBLKIT-003-A |
Cable kit for AS-CIB-USBHDMI-002-A containing cables for J2 and J3 that connect to the Harrier Evaluation Board. |
|
AS-CIB-USL30-100MM |
30-way micro-coax cable for connecting the interface board (J1) to the camera. Length 100mm. (Manufacturer: KEL, part number: USL20-30SS-010-C). |
|
AS-CIB-USL30-50MM |
30-way micro-coax cable for connecting the interface board (J1) to the camera. Length 50mm. Note, if the board is mounted on the side of the camera this cable is too short, the 100mm cable is required. (Manufacturer: KEL, part number: USL20-30SS-010-C). |
|
AS-CIB-FIXKIT-001-A |
Plastic clip, screws and spacers for mounting AS-CIB-USBHDMI-002-A to Tamron MP1010M or MP1110 camera. |
