Harrier 40x AF-Zoom HDMI Camera
Part Number: AS-CIB-HDMI-001-40LHD-A
- Full HD high resolution autofocus-zoom camera with HDMI output.
- 40x Optical Zoom & 32x Digital Zoom.
- 1/2.8-type 2MP Sony IMX462 STARVIS CMOS sensor.
- Video formats (HD): 1080p – 60/30 fps, 720p – 60/30 fps.
- Effective number of pixels approx. 2,120,000.
- Shutter speed 1/30(25) – 1/30,000 sec.
- TTL Serial VISCA, Pelco – D/P Control Protocol.
- Video output mode selected by DIP switches or VISCA control.
-
Description
-
Product Specs
-
Downloads
-
Ordering Info
-
Video
Description
Products Specs
Downloads
Ordering Info
Video
The Harrier 40x AF-Zoom HDMI Camera is fitted with a 2MP Sony CMOS sensor and a powerful 40x optical zoom (32x digital zoom). The camera offers Full HD real-time HDMI video output at 1920 x 1080p (60 fps). The video output is SMPTE 274M and SMPTE 296M compliant.
The HDMI output is enabled when an HDMI cable is connected. On power-up, the camera video mode may be selected by the DIP switch settings on the board. Camera video modes, along with other camera and interface board functions, may also be controlled by TTL serial communication.
Special features of this HDMI autofocus-zoom block camera include Digital Image Stabilization, Digital Noise Reduction (2D+3D), Privacy Mask Function, High Light Compensation, Intelligent Motion Detection, Defog Function and Day & Night mode (Infrared Cut filter Removal, ICR).
Active Silicon also offers Harrier 40x AF-Zoom camera solutions with simultaneous USB/HDMI video output, as well as 3G-SDI/HD-SDI/HD-VLC™ and Ethernet H.264 IP. For more information contact our team.
Camera Specification
Image sensor |
1/2.8-type Sony IMX462 STARVIS CMOS sensor |
Effective no. of pixels |
Approx. 2,120,000 pixels |
Analog resolution |
CVBS |
Sync system |
Internal |
Video format (HD) |
HDMI 1.4: 1080p 60(50)/30(25)fps, 720p 60(50)/30(25)fps |
Analog resolution |
CVBS |
Minimum illumination |
Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux |
S/N ratio |
more than 50dB (AGC off) |
Lens Type |
40x Day & Night Zoom Lens |
Zoom Ratio |
Optical 40x, Digital 32x Zoom |
Lens (wide to tele) |
Optical x40 Zoom, f=4.25mm to 170 mm, F1.6 (wide) to F4.95 (tele) |
Horizontal viewing angle (wide to tele) |
66.35° to 1.9° |
Focusing system |
Auto / One Push / Manual |
Minimum object distance (wide to tele) |
0.1 – 10.0m (focus near limit range) |
Zoom speed |
0 (Slow) – 7 (Fast) |
Lens refresh |
One Push / 1 – 10 Days |
Digital zoom |
OFF / MAX 2x – 32x |
Zoom preset |
5 presets |
Exposure mode |
Auto, lris Priority, Shutter Priority, Manual |
Gain control (AGC) |
0 – 10 steps |
Shutter speed |
1/30(25) – 1/30,000 sec |
Iris |
Close – F1.6 |
Digital Slow Shutter (DSS) |
Off / 2x / 4x / 8x / 16x / 32x (x64: 60 or 50fps mode only) |
Flickerless |
Off / On / Auto |
Brightness |
0 – 14 steps |
Back Light |
Off / BLC / HLC / WDR (BLC – Back Light Compensation, HLC – High Light Compensation, WDR – Wide Dynamic Range) |
Day & Night |
Auto / Day / Night / Ext-in |
White balance |
Auto, One Push, Manual, Indoor, Outdoor, Auto-Ext |
Red gain |
0 – 100 steps (Manual mode only) |
Blue gain |
0 – 100 steps (Manual mode only) |
Chroma |
0 – 20 steps |
Hue |
0 – 20 steps |
System (analog) |
NTSC / PAL |
Control protocol |
Serial VISCA / TTL |
Baud rate |
2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
Camera Functions
Digital Noise Reduction (DNR) |
2D/3D, 2D+3D (Level: 0 ~ 15 steps) |
Mirror |
Off / H / V / H&V |
Sharpness |
0 – 15 steps |
Contrast |
0 – 20 steps |
Image Bright |
0 – 20 steps |
DWDR |
Off / Manual / Auto (DWDR – Digital Wide Dynamic Range) |
Defog |
OFF / ON (Auto / Manual) |
Freeze |
OFF / ON |
Gamma |
0.35 – 0.70 |
Privacy mask |
OFF / ON (8 masks) |
Motion detection |
OFF / ON (4 regions) |
DIS |
OFF / ON (DIS – Digital Image Stabilizer) |
Defect detection |
OFF / ON |
Connector Specification - Harrier HDMI Camera Interface Board
KEL30 Connector (J1) |
The interface board is fitted with a 30-way miniature connector to link to the video output connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length). |
Input/Output Connector (J2) |
The interface board is fitted with an industry standard 4-way connector for VSync/PWM signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier HDMI Camera Interface Board datasheet for pin assignments and control options. |
Power and Control Connector (J3) |
The interface board is fitted with an industry standard 10-way connector for power and serial control. Connector type: JST SM10B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier HDMI Camera Interface Board datasheet for pin assignment and output options. |
JTAG Connector (J4): |
Test connector used in manufacturing for circuit verification. |
HDMI Output Connector (J5) |
The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected. Connector type: HDMI Type D (micro). Mating Connector: Standard micro HDMI cable. |
Video and Control Mode DIP Switch (SW1) |
The interface board is fitted with an 8-way DIP switch (SW1) to enable selection of camera video format on power-up, and VISCA camera control communication modes. See Harrier HDMI Camera Interface Board datasheet for the configuration of the DIP switch elements. |
General
Power requirement |
9 – 15V DC |
Power consumption |
Approx. 8 W (typical @1080p60) |
Operating temperature |
0°C to +50°C |
Storage temperature |
-20°C to +60°C |
Operating humidity |
0% to 90% (no condensation) |
Dimensions (L x W x H) |
114mm x 54mm x 65.5mm x (L x W x H) |
Weight |
391g |
| Download | File Type | File Size | |
|---|---|---|---|
Datasheets |
Datasheet Harrier 40x AF-Zoom Camera | 227.65 KB | |
| Datasheet Harrier HDMI Camera Interface Board | 639.45 KB | ||
Manuals & Quick Start Guides |
Technical Reference Manual - Harrier 40x AF-Zoom Camera v1.05 | 5.28 MB | |
| Harrier HDMI CIB Quickstart Guide v1.6.0 | 753.76 KB | ||
Software |
HarrierControl Camera Software v.1.4.1 | zip | 15.17 MB |
CAD Drawings & Data |
3D CAD Model (zipped STEP file) - Harrier 40x AF-Zoom HDMI Camera | zip | 9.32 MB |
| Mechanical overview - Harrier 40x AF-Zoom HDMI Camera | 110.23 KB | ||
Other Downloads |
Technical Note - Troubleshooting guide for Harrier camera interface boards | 235.42 KB | |
| Brochure - Cameras for drones, UAVs and gimbals | 2.84 MB |
Ordering Information
| Part number | Description |
|---|---|
|
AS-CIB-HDMI-001-40LHD-A |
Harrier 40x AF-Zoom HDMI Camera. |
|
AS-CIB-USBHDMI-001-EVAL-A |

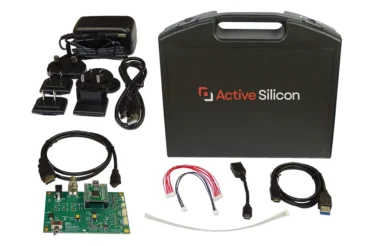

Evaluation Kit for Harrier USB/HDMI, including the Harrier 40x AF-Zoom HDMI Camera. The kit contains power supply, cabling (including AS-CIB-CBLKIT-003-A), 30-way micro-coax cable (AS-CIB-USL30-100MM, for connecting camera with camera interface board) and the Harrier Evaluation Board with PC serial interface (via USB UART). Not included: Camera and camera interface board. |
|
AS-CAM-40LHD-A |
Harrier 40x AF-Zoom Camera. |
|
AS-CIB-HDMI-001-A |
Harrier HDMI Camera Interface Board. Board only, no cables included. |
|
AS-CIB-CBLKIT-003-A |
Cable kit for AS-CIB-HDMI-001-A containing cables for J2 and J3 that connect to the Harrier Evaluation Board. |
|
AS-CIB-USL30-100MM |
30-way micro-coax cable for connecting the interface board to the camera. Length 100mm (Manufacturer: KEL, part number: USL20-30SS-005-C). |
|
AS-CIB-USL30-50MM |
30-way micro-coax cable for connecting the interface board to the camera. Length 50mm (Manufacturer: KEL, part number: USL20-30SS-005-C). |
|
AS-CIB-BRK-007-A |
Metal bracket, screws and spacers for mounting the AS-CIB-HDMI-001-A to a Harrier 40x AF-Zoom Camera. |
