Active Silicon offers a range of autofocus-zoom block cameras and board cameras including our own Harrier and Oriole products. Camera features include multiple output options, compact size, global shutter, powerful zoom and more.
Find out more about the Harrier AF-Zoom Camera range, as well as Tamron and Sony block cameras in the listings below. With our Harrier block camera interface board technology (see Harrier Camera Interface Boards) we offer LVDS, 3G/HD-SDI, analog (CVBS), HD-VLC, USB 3 (UVC), HDMI and IP (Ethernet) H.264 video output options.
To enable fast and easy evaluation of our AF-Zoom block camera solutions we offer camera Evaluation Kits.
Oriole Board Cameras provide extremely compact and lightweight imaging solutions with global shutter and rolling shutter options available.
Applications for Harrier AF-zoom cameras comprise unmanned aerial and underwater vehicles (UAVs, drones and ROVs), traffic and rail surveillance, pipe inspection and remote monitoring, medical applications among many others. Oriole board cameras are an excellent solution where space and weight limits are critical.
Contact us to find the right AF-zoom block camera for your vision system.
The Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9520L) provides real-time 3G-SDI video output and 30x optical zoom. Based on the new Sony FCB-EV9520L it is ideal for imaging in low-light conditions. In addition to 3G/HD-SDI it also offers simultaneous analog output in Standard Definition (SD) video, and supports HD-VLC™ output mode for long cables.
The Harrier 30x AF-Zoom IP Camera (Sony FCB-EV9520L) offers high-quality Full HD Ethernet IP video output (up to 1080p60 ) and is based on the brand new Sony FCB-EV9520L. The camera offers 30x optical zoom and very low latency H.264 RTP streaming video, ideal for industrial and real-time applications. Wireless and PoE options are available.
The Harrier 30x AF-Zoom USB/HDMI Camera (Sony FCB-EV9520L) provides simultaneous HDMI and USB Video Class (UVC) v1.1 video output. Based on the Sony FCB-EV9520L, this camera solutions features a 30x optical zoom and is ideal for imaging in low-light conditions.
The Harrier 30x AF-Zoom HDMI Camera (Sony FCB-EV9520L) offers 30x optical zoom and 12x digital zoom with HDMI output. Based on the Sony FCB-EV9520L, this camera is ideal for imaging in low-light conditions and an improved direct replacement of the AS-CIB-HDMI-001-7520-A (with FCB-EV7520).
The Sony FCB-EV9520L autofocus-zoom camera features a 30x optical zoom and a 1/2.8” 2 MP Starvis 2 sensor. The camera is the direct replacement for the FCB-EV7520 and is compatible with all Harrier camera interface boards for extended video output options.
The Harrier 30x AF-Zoom 3G-SDI Camera (Sony FCB-EV9500L) provides real-time 3G-SDI video output with 30x optical zoom. Based on the Sony FCB-EV9500L, it has a very efficient image stabilizer and ensures high-quality imaging in low-light environments. In addition to 3G/HD-SDI it also provides simultaneous analog output in Standard Definition (SD) video, and supports HD-VLC™ output mode for long cables.
The Harrier 30x AF-Zoom IP Camera (Sony FCB-EV9500L) provides high-quality Full HD Ethernet IP video output (up to 1080p60 ) and 30x optical zoom. Based on the Sony FCB-EV9500L and Harrier technology, this camera offers very low latency H.264 RTP streaming video and is ideal for industrial and real-time applications. Wireless and PoE options are available.
The Harrier 30x AF-Zoom USB/HDMI Camera (Sony FCB-EV9500L) provides simultaneous HDMI and USB Video Class (UVC) v1.1 video output. Based on the Sony FCB-EV9500L, this camera features a 1/1.8”-type STARVIS sensor, 30x optical zoom and is ideal for imaging in low-light conditions.
The Sony FCB-EV9500L autofocus-zoom camera has 30x optical zoom and a 1/1.8″ AR-coated CMOS sensor. It is ideal for high-quality imaging in low-light environments and offers a very efficient image stabilizer. The Sony FCB-EV9500L is compatible with all Harrier camera interface boards, extending the video output options of the camera to 3G/HD-SDI, Ethernet IP, USB 3, HDMI, and HD-VLC for long cable lengths.

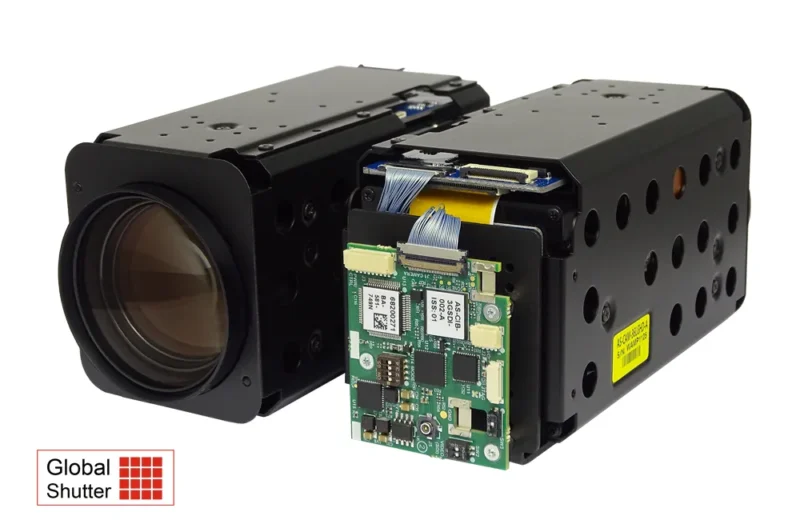

The Harrier 36x AF-Zoom HD-SDI Camera is equipped with a Sony Global Shutter CMOS sensor, a powerful 36x optical zoom and offers real-time Full HD video output. In addition to HD-SDI, it also provides simultaneous analog output in Standard Definition (SD) video and supports HD-VLC™ output mode for long cables.
The Harrier 36x AF-Zoom SDI Camera is equipped with a Sony Global Shutter CMOS sensor and a powerful 36x optical zoom. It supports Full HD video output in HD-SDI, EX-SDI (compressed video) and HD-TVI outputs.
The Harrier 36x AF-Zoom IP Camera features a 1/2.3-type Sony Pregius global shutter sensor and a powerful 36x optical autofocus-zoom lens. The camera supports up to 1080p30 Full HD video output and the low latency, high resolution H.264 RTP streaming video is ideal for industrial and real-time applications. Four variants of this camera are available, including wireless and PoE options.
The Harrier 36x AF-Zoom USB/HDMI Camera offers simultaneous display of both HDMI and USB Video Class (UVC) v1.1 output. The camera is equipped with a Sony Global Shutter CMOS sensor and a powerful 36x optical zoom lens.

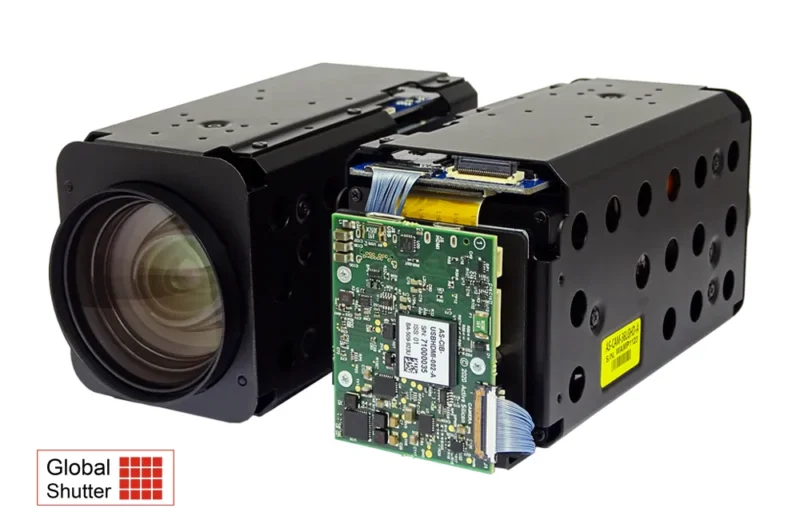

The Harrier 36x AF-Zoom HDMI Camera offers 36x optical zoom and 32x digital zoom with full HD image output at 1920 x 1080p (30 fps). The camera is equipped with a Sony Global Shutter CMOS sensor and guarantees distortion-free images of moving objects.

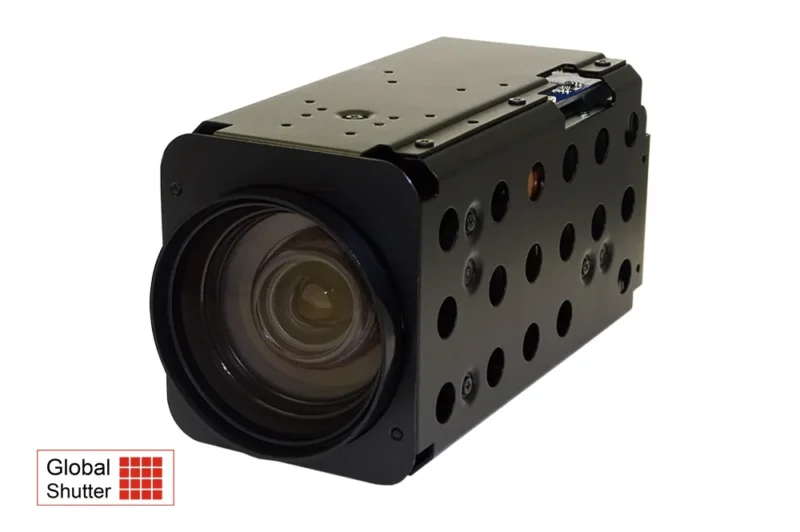

The Harrier 36x AF-Zoom Camera has a Sony Global Shutter CMOS sensor and a powerful 36x optical zoom. It supports Full HD video output in single mode LVDS, comes with an EX-SDI (compressed video) output option and is compatible with all Harrier Camera Interface Boards, expanding output options to HD-SDI, HD-VLC, USB 3, HDMI and Ethernet IP.
The Harrier 40x AF-Zoom 3G-SDI Camera offers real-time 3G-SDI video output, a powerful 40x optical zoom and 2MP Sony CMOS sensor. The camera also provides simultaneous analog output in Standard Definition (SD) video, and supports HD-VLC™ output mode for long cable lengths.
The Harrier 40x AF-Zoom IP Camera features a 1/2.8-type Sony IMX462 STARVIS sensor and powerful 40x optical autofocus-zoom lens. It supports up to 1080p60 Full HD video output. The low latency, high resolution H.264 RTP streaming video is ideal for industrial and real-time applications. Four variants of this camera are available, including wireless and PoE options.
The Harrier 40x AF-Zoom USB/HDMI Camera offers simultaneous display of both HDMI and USB Video Class (UVC) v1.1 output. It features a Sony 2MP CMOS sensor, a powerful 40x optical zoom and many advanced camera functions.
